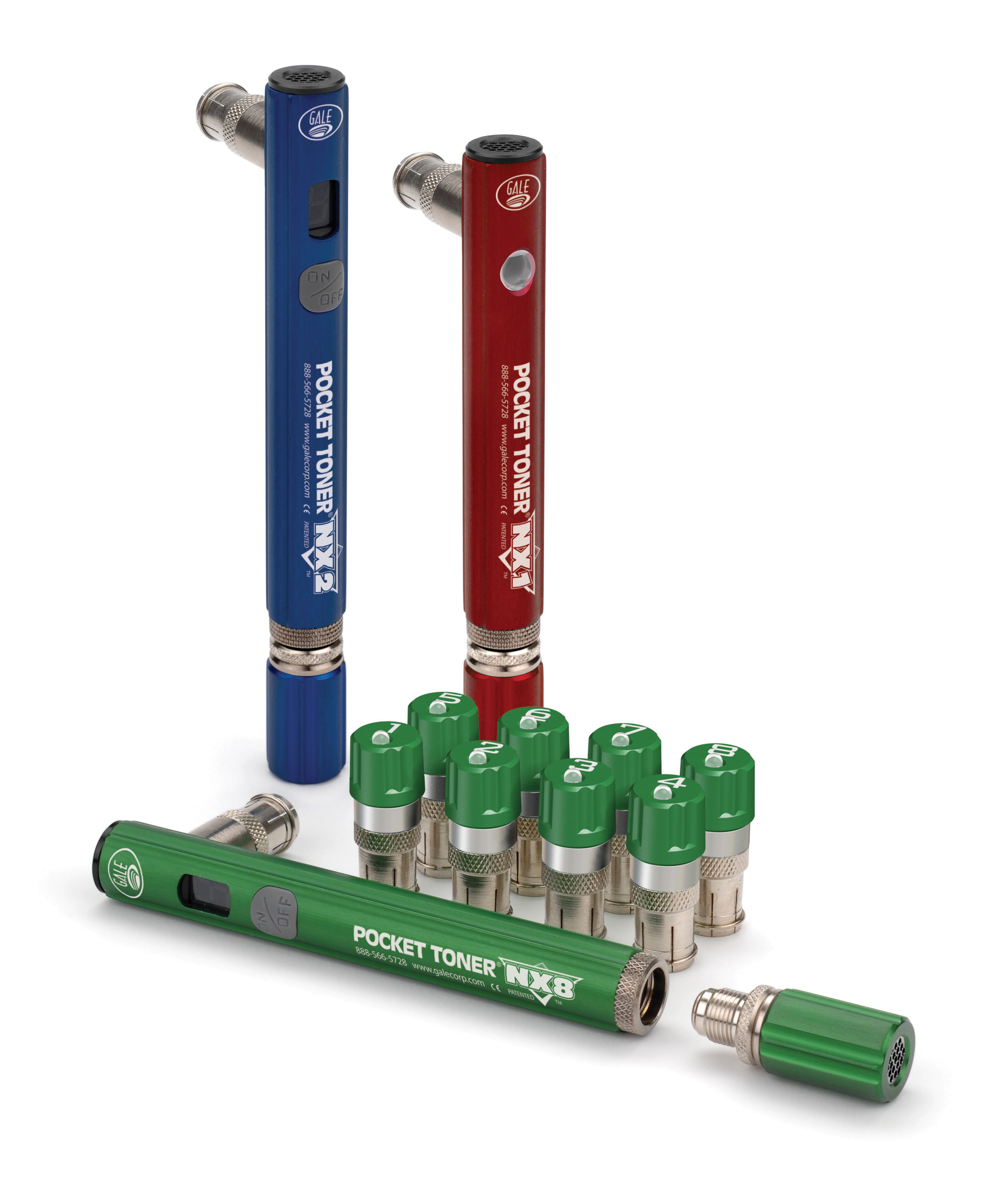

 Pocket Toner® NX - Promotional Photos

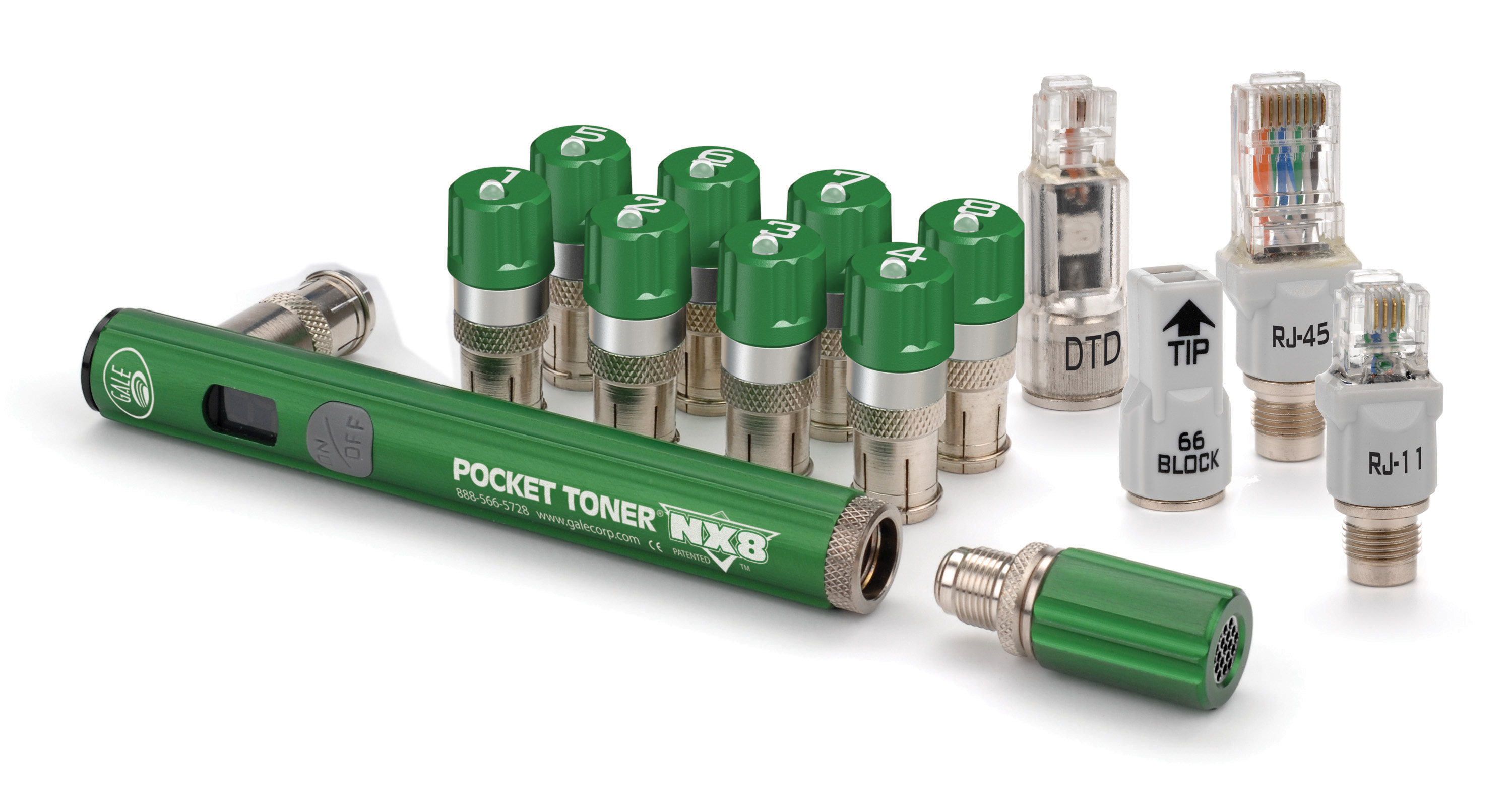

Pocket Toner® NX - Adapters
Innovation™ - Splitters & Couplers Promotional Photos
Innovation™ - Splitters & Couplers
 |

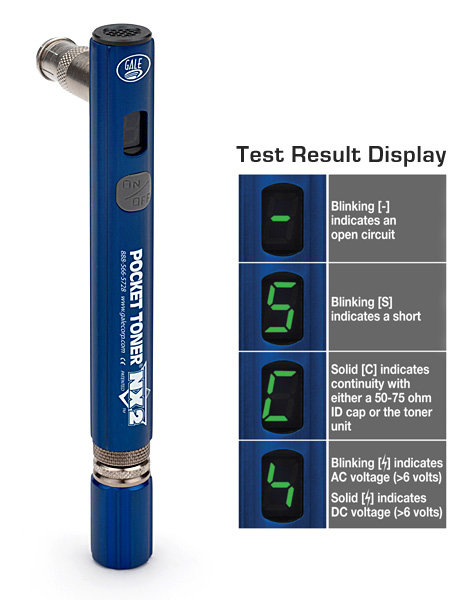

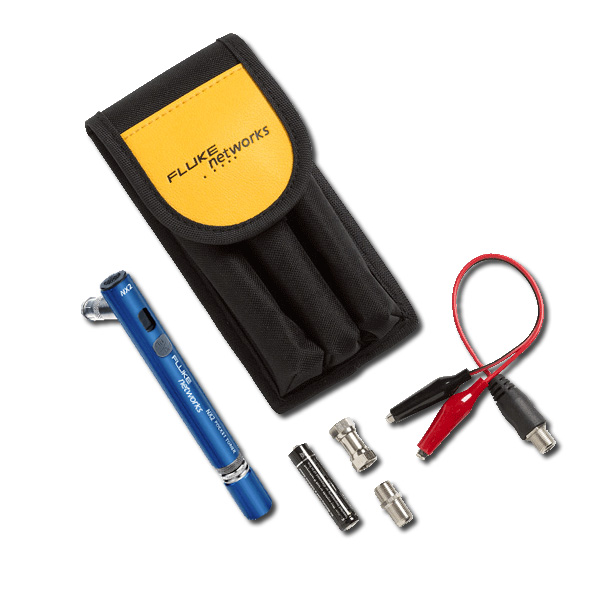

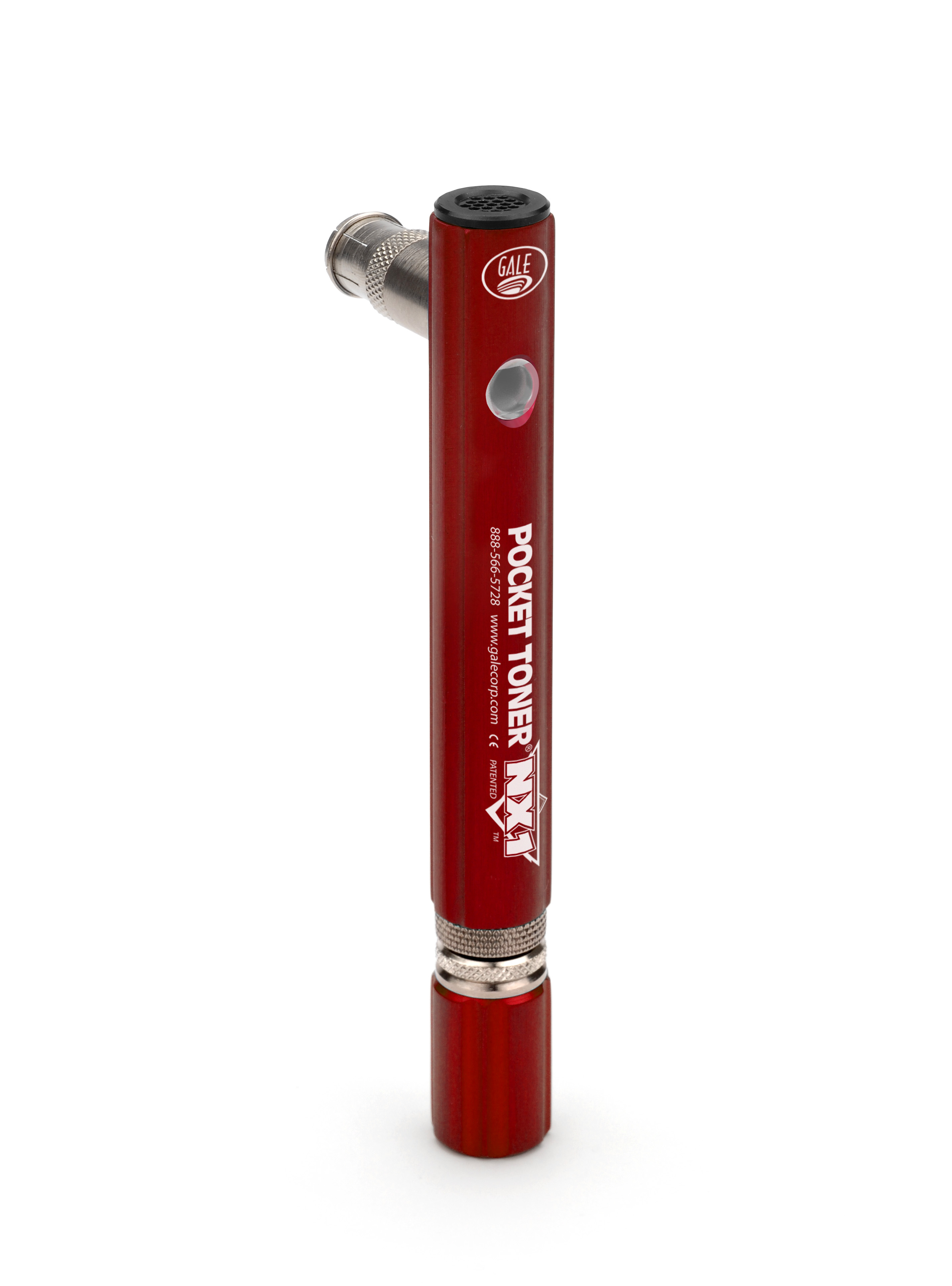

Test for continutiy and short circuits on coaxial cables in one easy step. Basic professional coaxial testing does not get any more compact and simple as PTNX1. This is the new NX version of the classic black Pocket Toner® first invented by Gale Corporation years ago. This new NX version features lightweight aluminum construction, a standard AAA battery, and new dual buzzers that audibly indicate continuity at both ends of the test cable. Like all Pocket Toner® NX test tools, the NX1 is now 100% low voltage protected so connecting it to live low voltage systems will not damage the tool. |
|
|
| Part Number: |

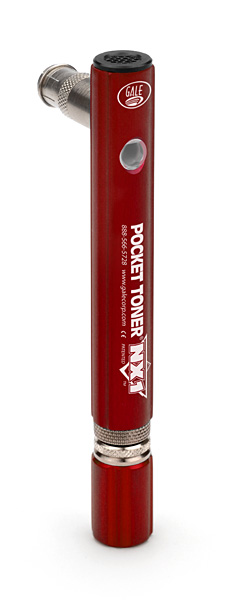

PTNX1 |
| Price: |
$ 41.00 |
|
|
|
 |

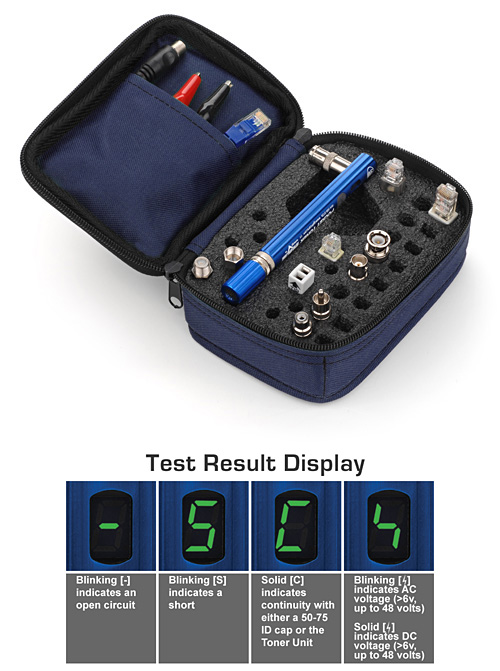

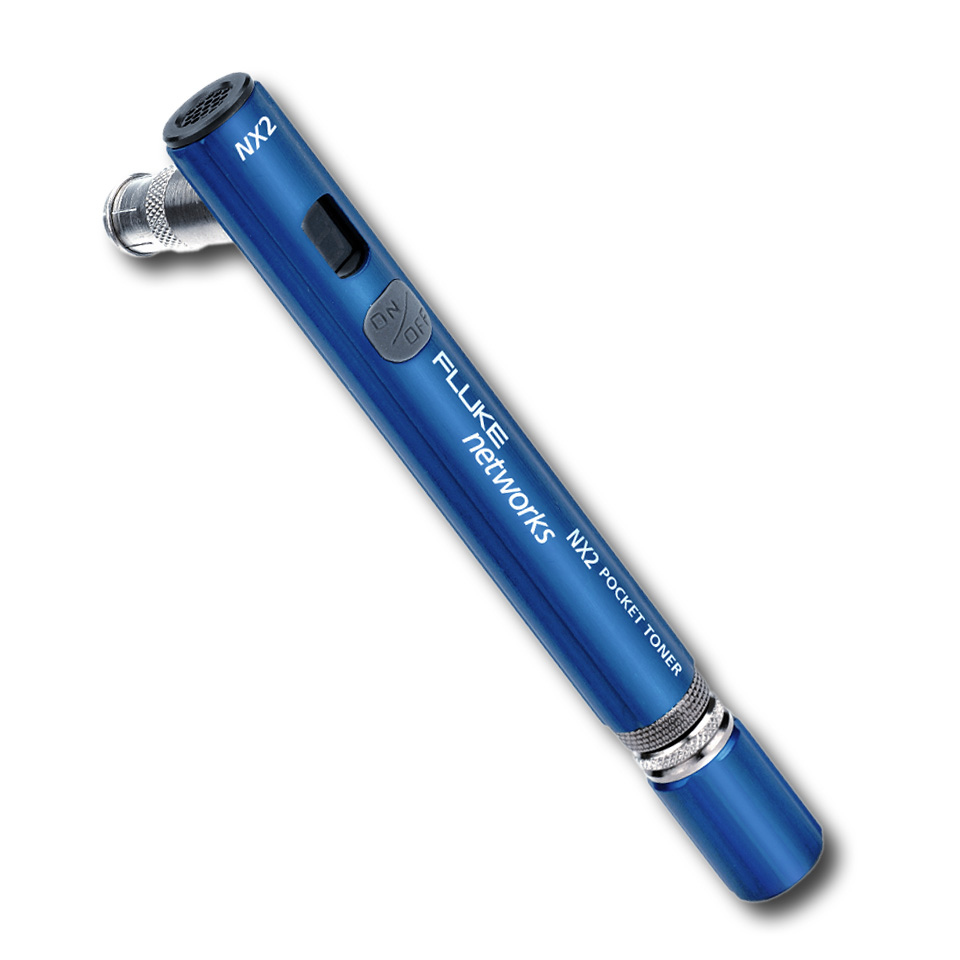

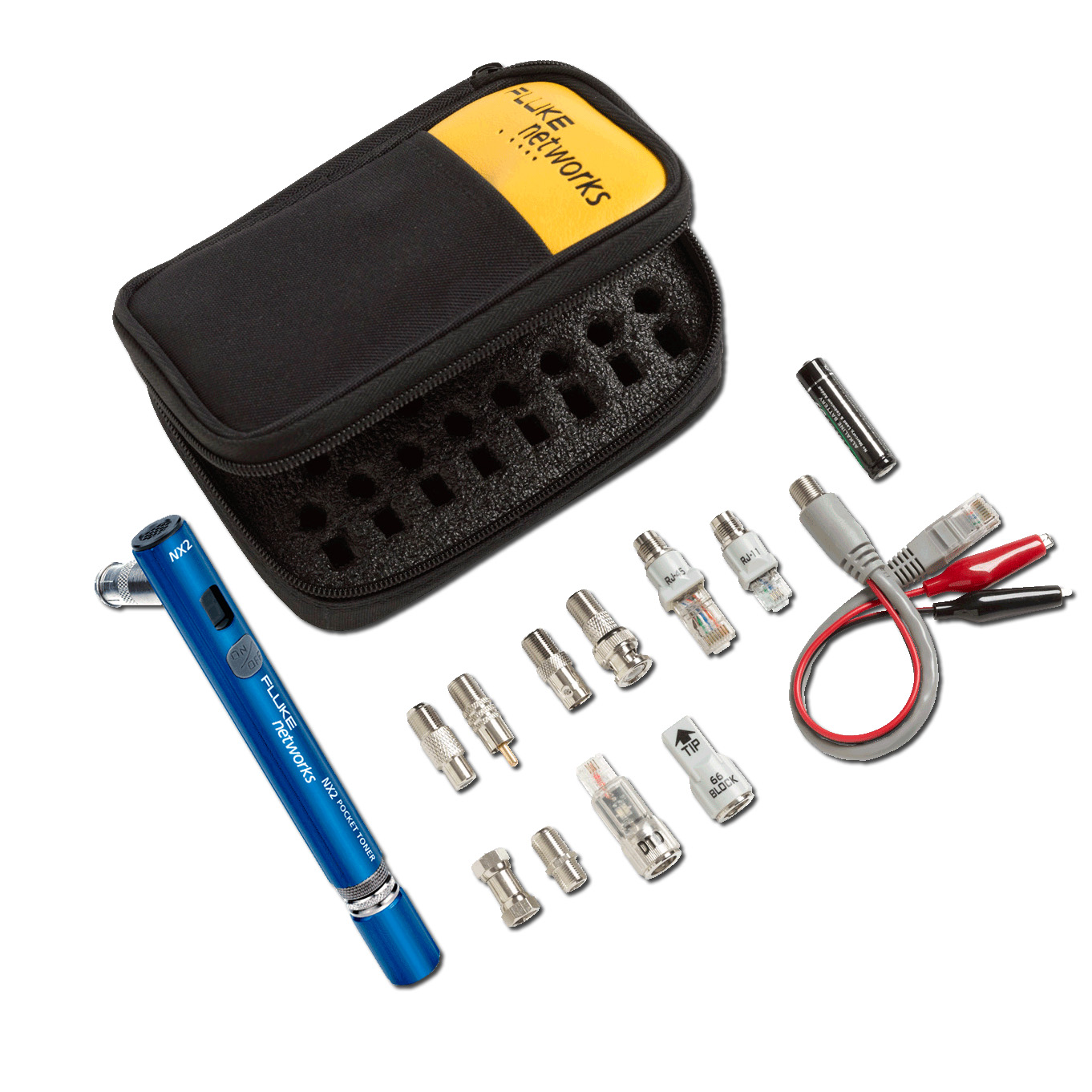

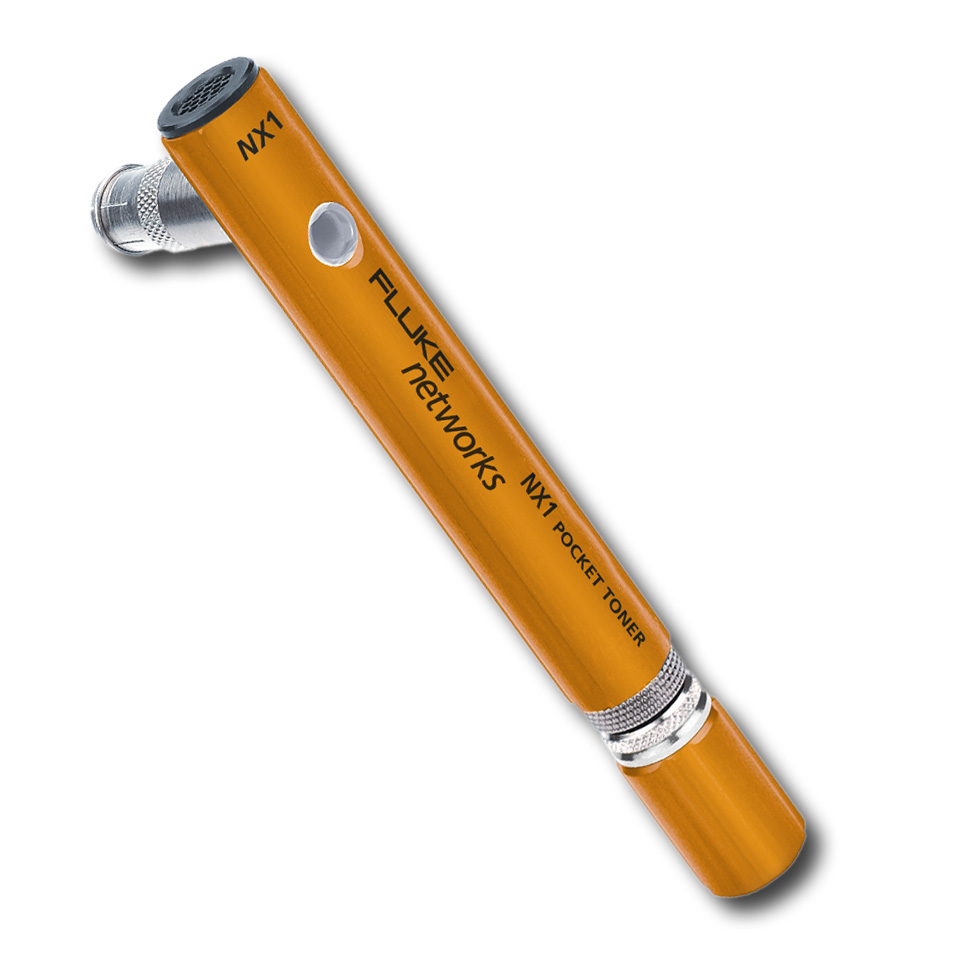

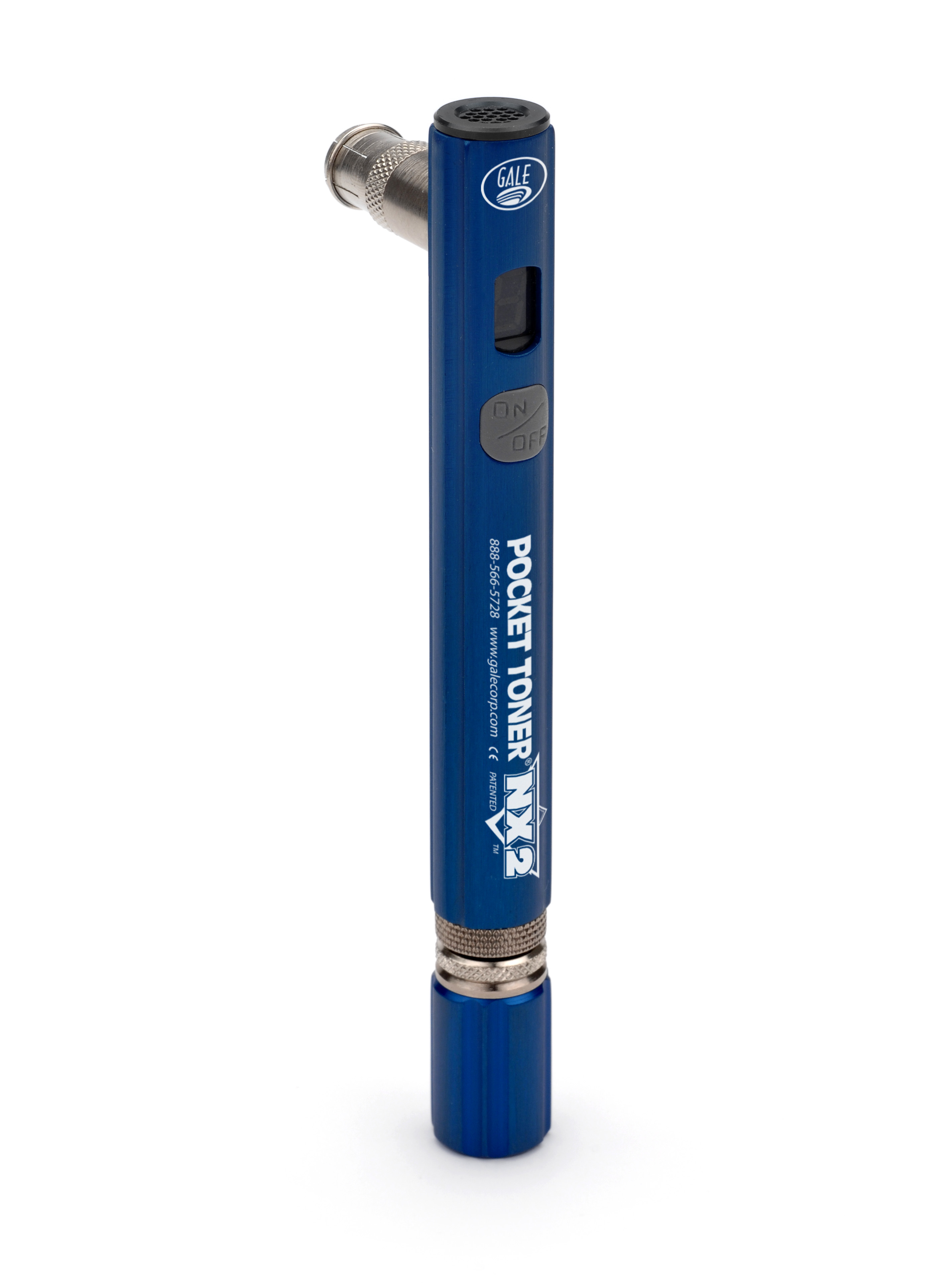

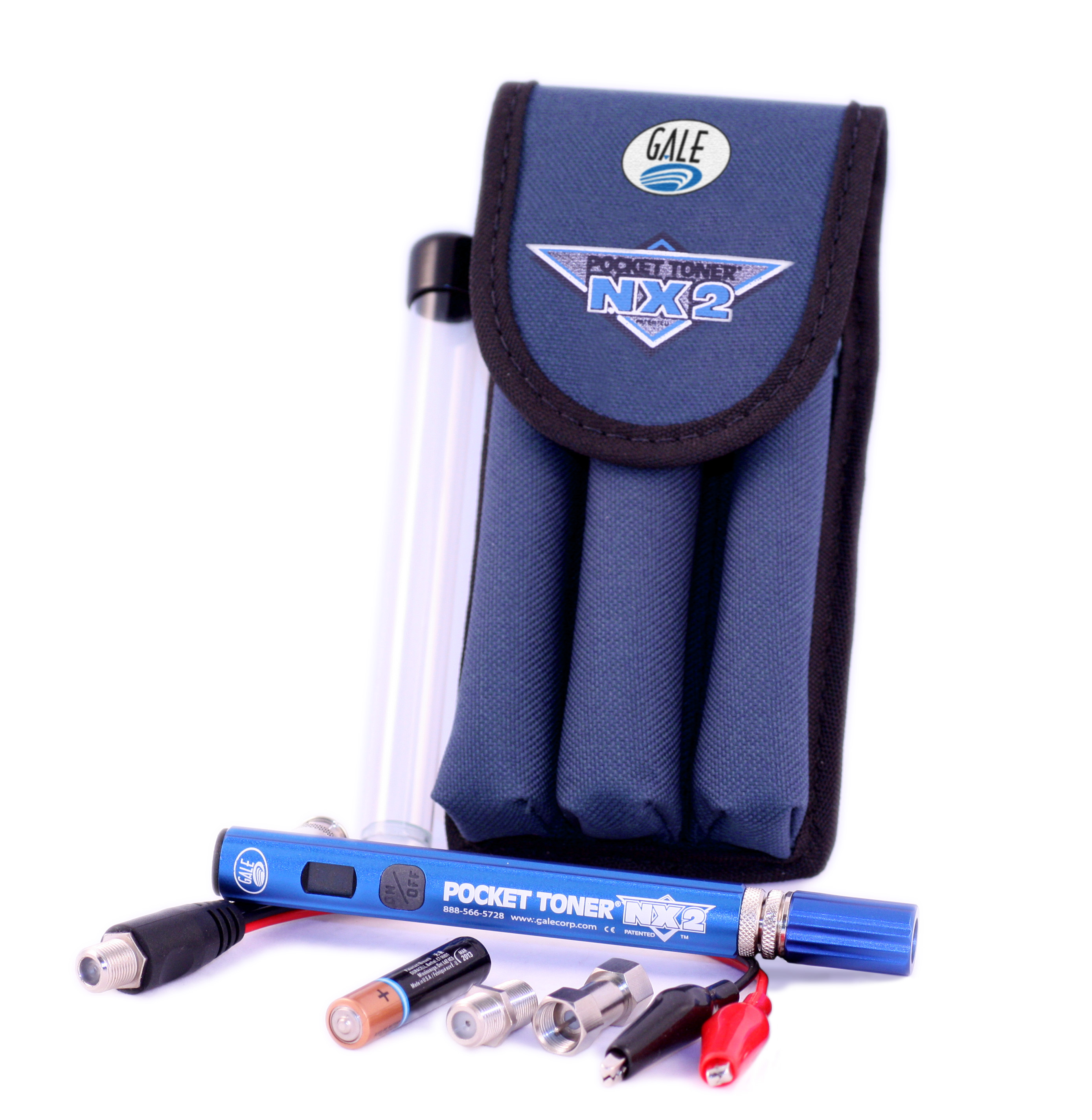

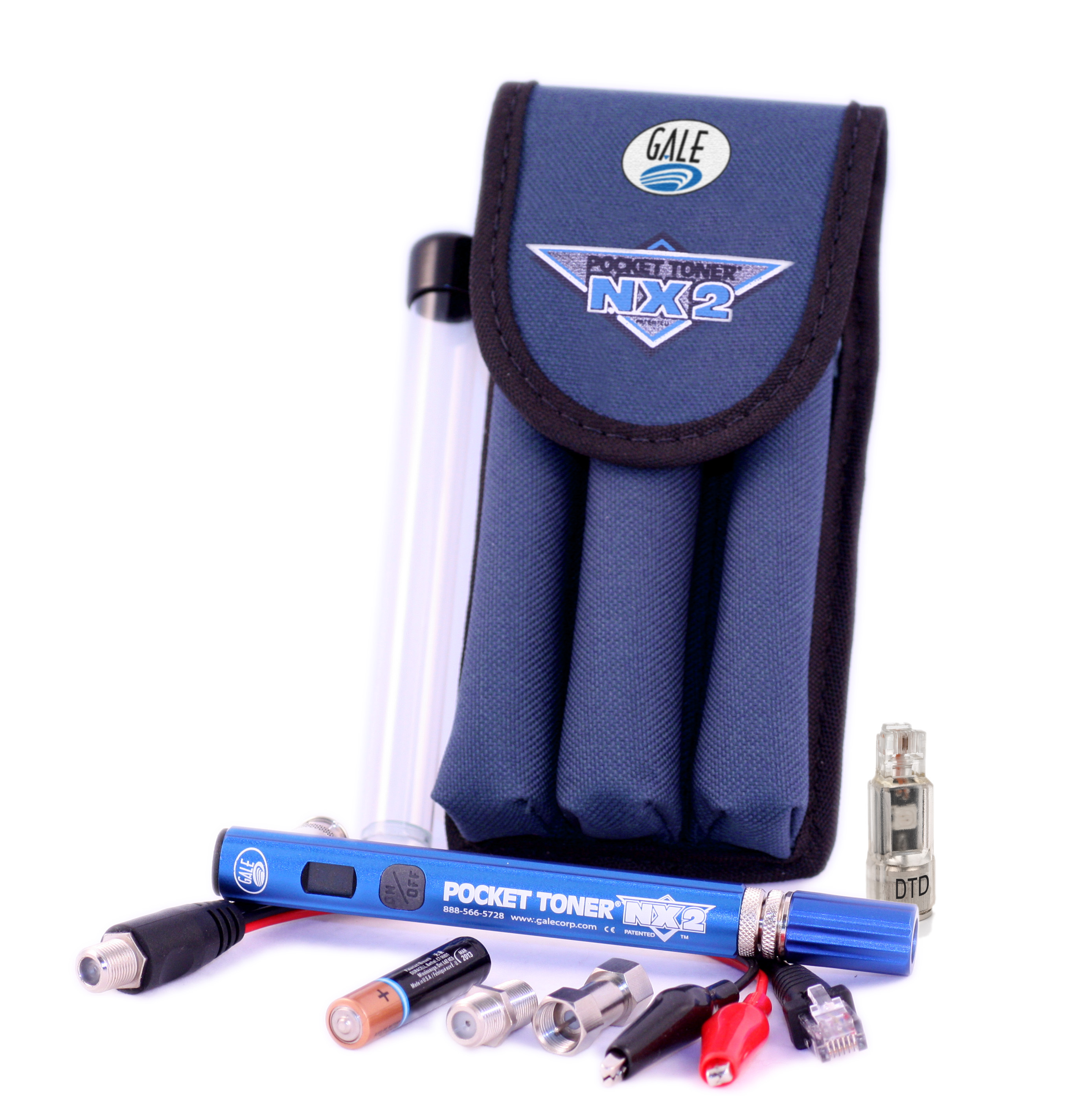

The individual PTNX2 is for the technician that works primarily with coaxial cable that wants a powerful but super-compact tool to fit in his or her pocket. In addition to testing for continutiy and short circuits PTNX2 is packed with advanced features like indication of AC or DC voltage, 50-75 ohm terminators and auto shut-off to conserve battery life. PTNX2 instantly displays all test results on an easy to read 8-segment LED display as well as giving audible feedback at both ends of the test cable. Like all Pocket Toner® NX test tools, the NX2 is now 100% low voltage protected so connecting it to live low voltage systems will not damage the tool. |
|
|
| Part Number: |
PTNX2 |
| Price: |
$ 51.76 |
|
|
|
 |

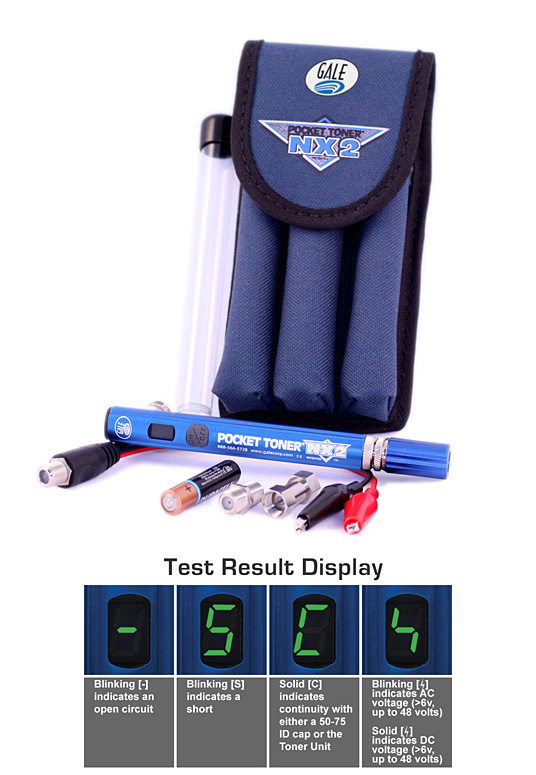

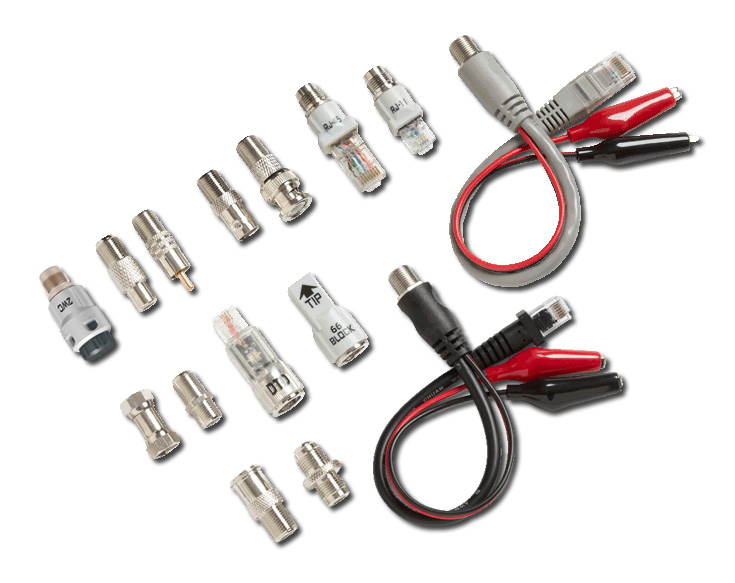

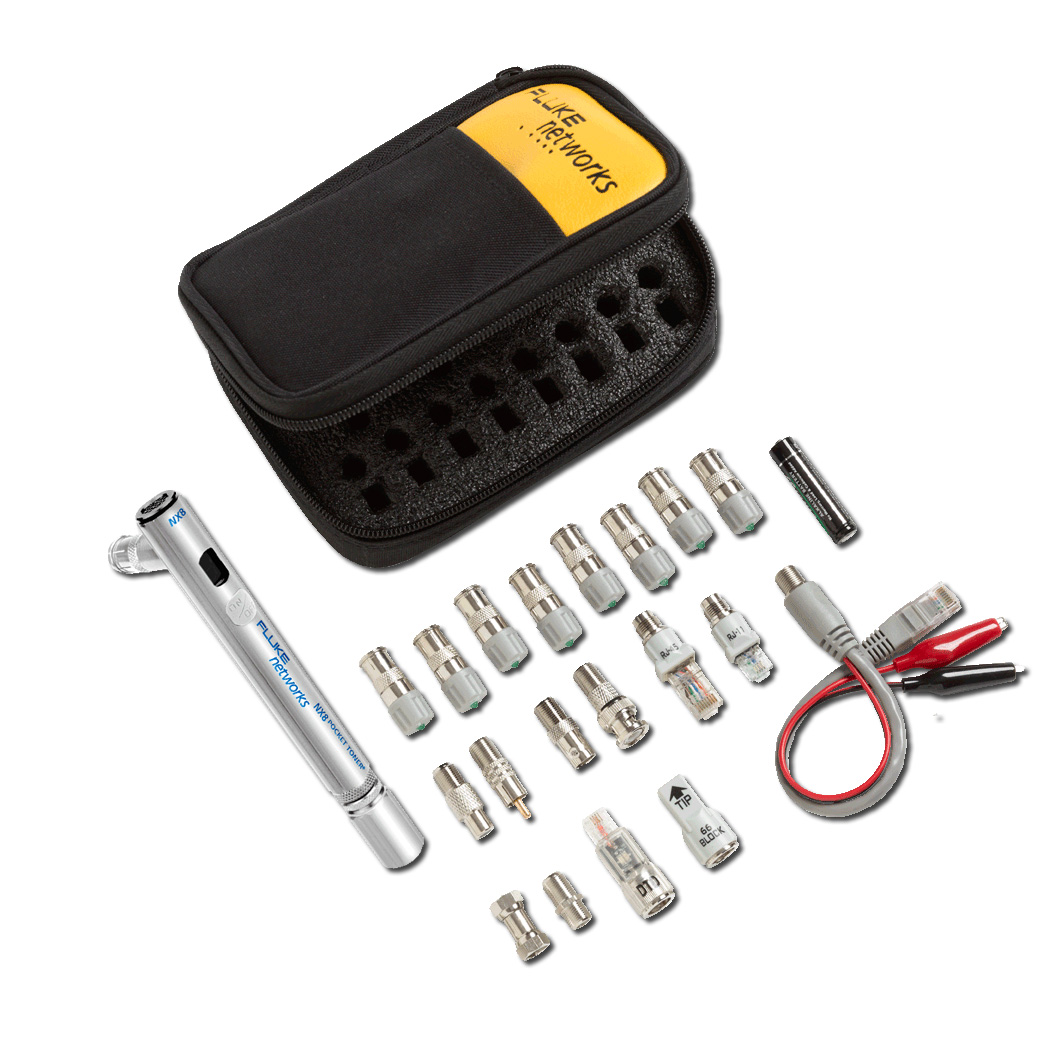

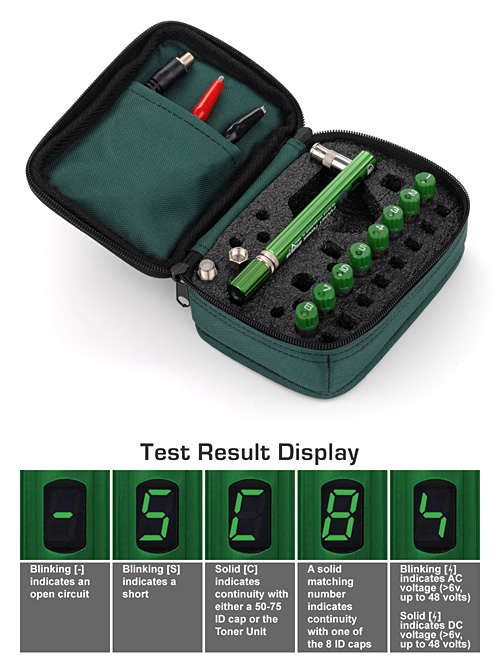

Just the adapters you need for quickly testing continuity, shorts, splitters, 50-75 ohm terminations and polarities in a compact hand-held case. Unique five-function 8-segment LED display as well as audio confirmation. |
 |
| Part Number: |
PTNX2-CABLE |
| Price: |
$ 69.41 |
|
|
|
 |

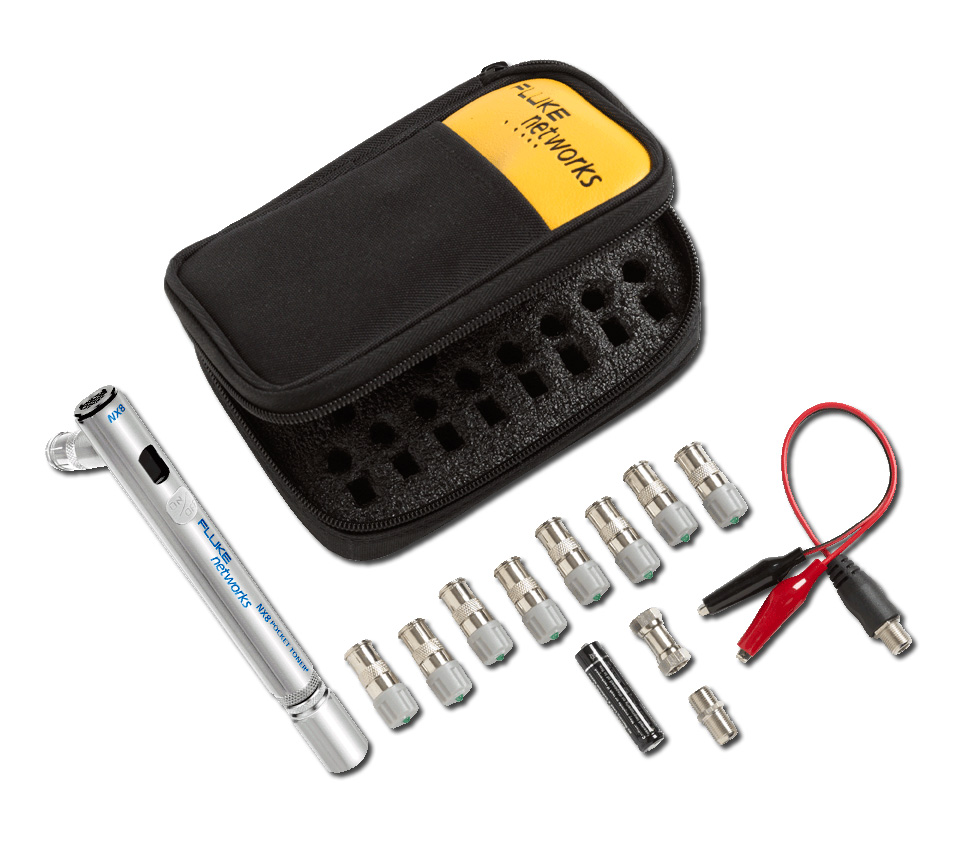

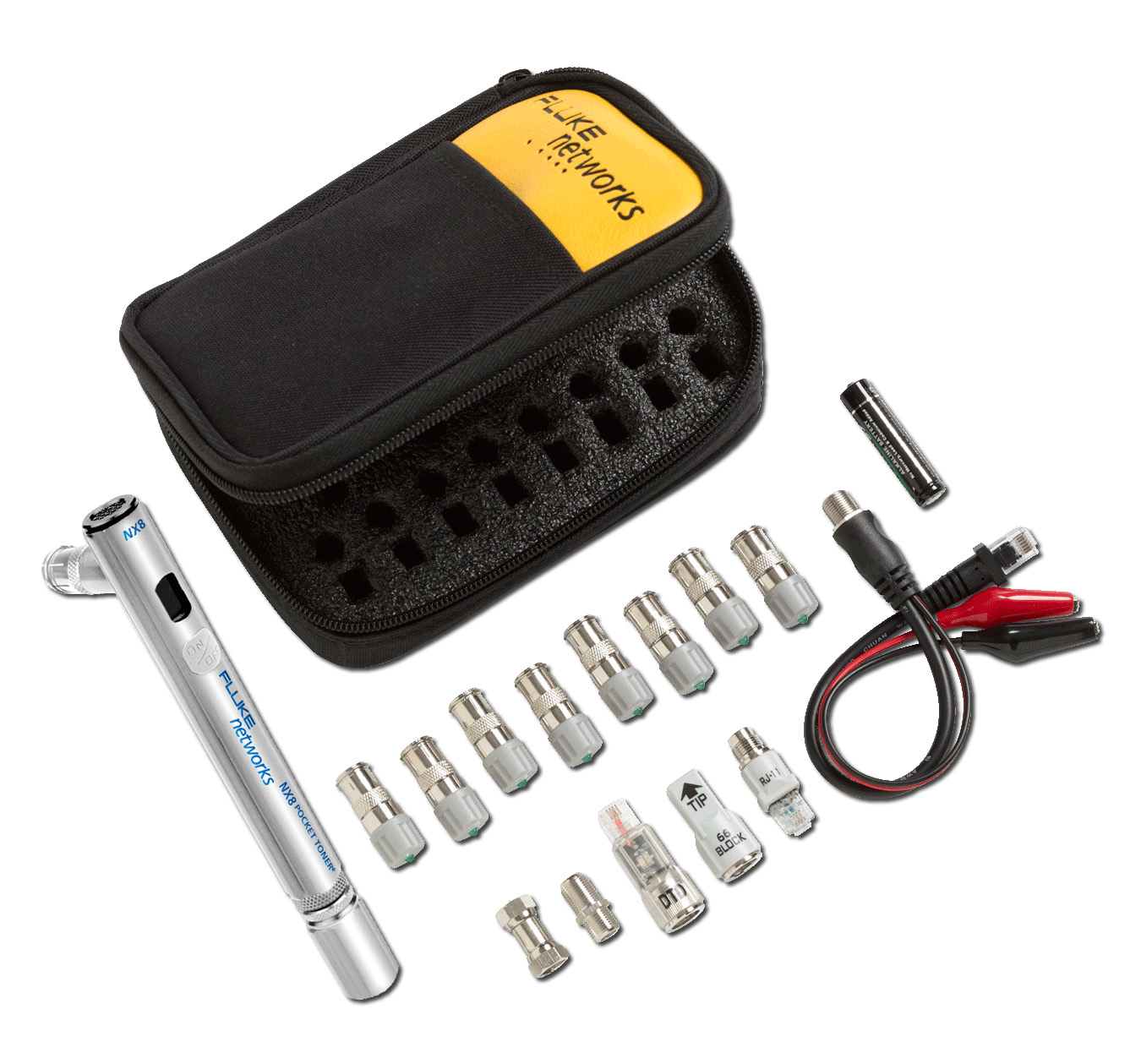

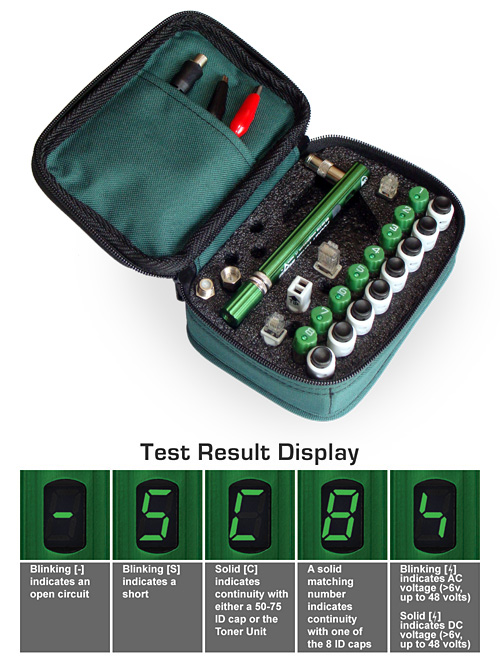

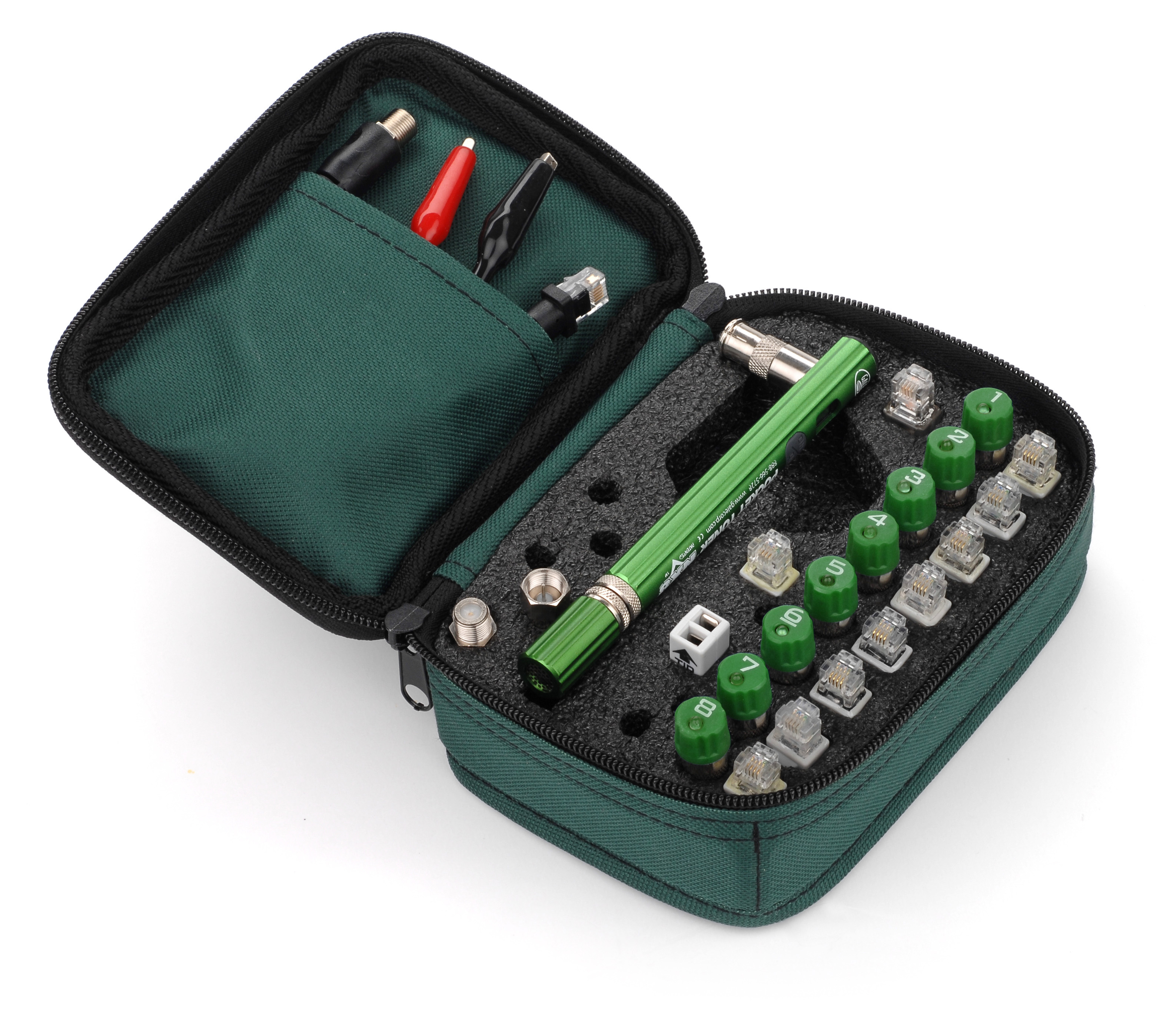

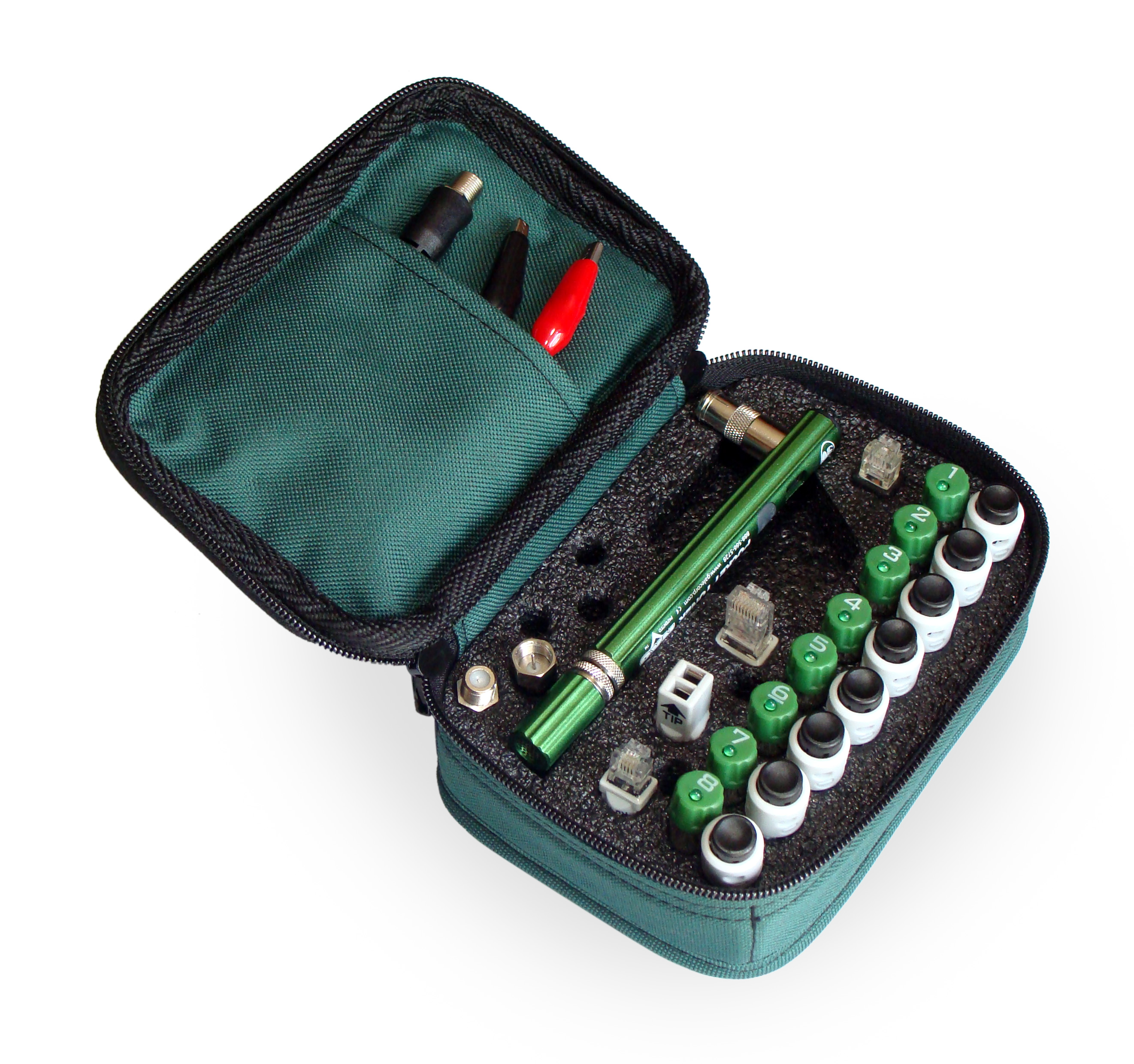

For the first time there is a complete test kit containing precisely tuned ID caps with the same ohm values as those most commonly used by fire alarm manufacturers as end-of-the-line (EOL) terminations. These ID Caps can be used in fire alarm systems to properly determine circuit continuity and correct circuit resistance value for proper system performance. Security system installers can now confirm zone integrity allowing for quick and accurate termination of up to 8 points at one time. The patented 2-Wire Clip Adapters with the ID caps are designed to snap easily onto any two conductor 26-16 gauge wire for simplicity of testing. Confirming dial tone is a snap with Gale Corporation’s exciting new DTD which is included in each Security/Fire kit. |
|
| Part Number: |
PTNX8-SF-PRO |
| Price: |
$ 140.49 |
|
|
|
 |

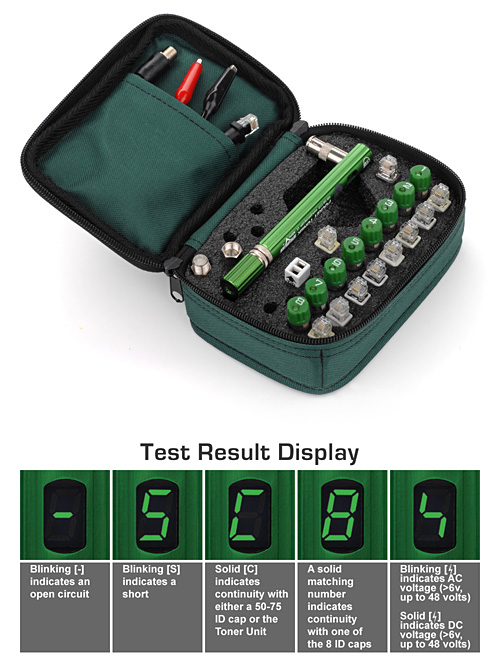

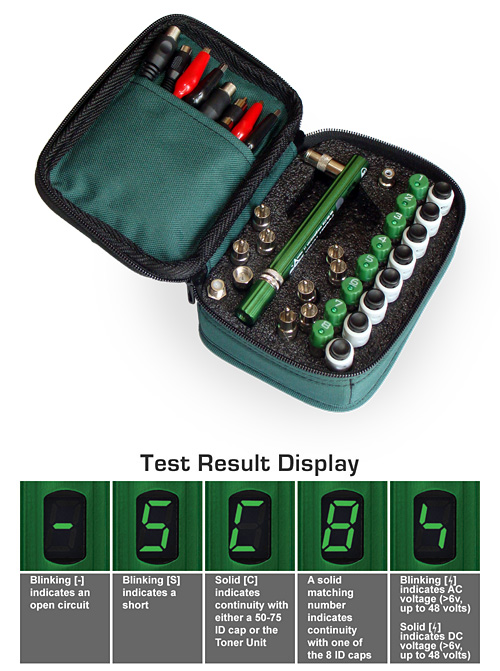

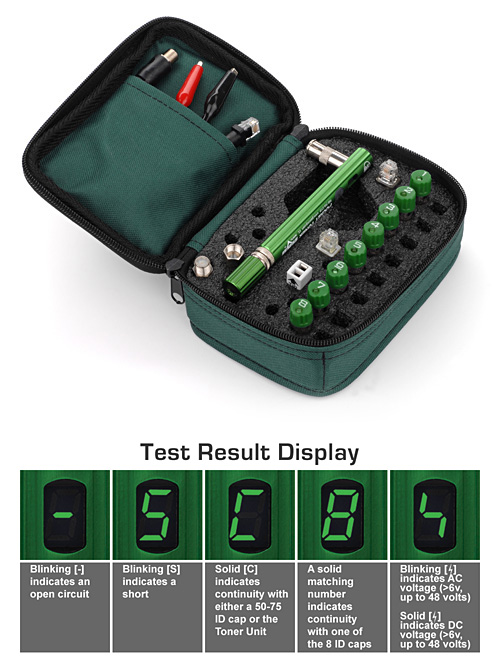

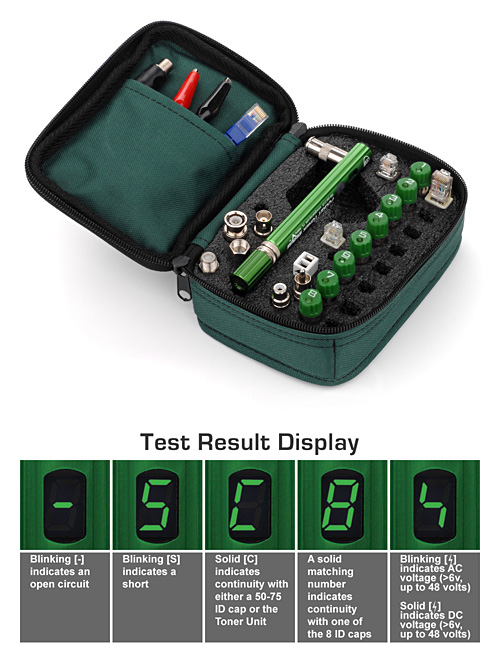

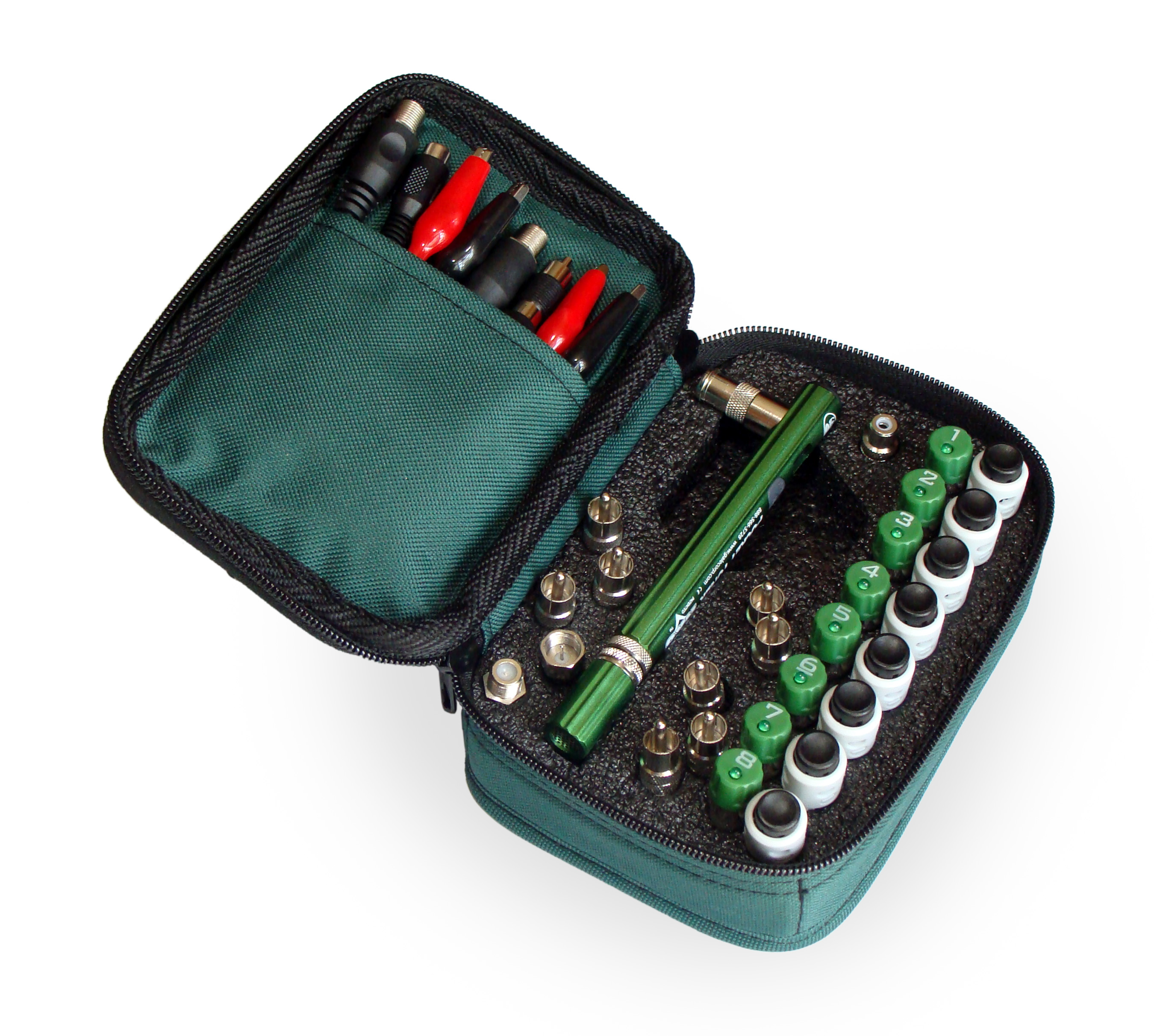

Imagine testing a surround sound system for continuity and short circuits with speed, efficiency, and accuracy. With the PTNX8 Audio / Video Pro and its specially selected adapters, audio/video installations and troubleshooting are a breeze! |
|
| Part Number: |
PTNX8-AV-PRO |
| Price: |
$ 139.49 |
|
|
|
 |

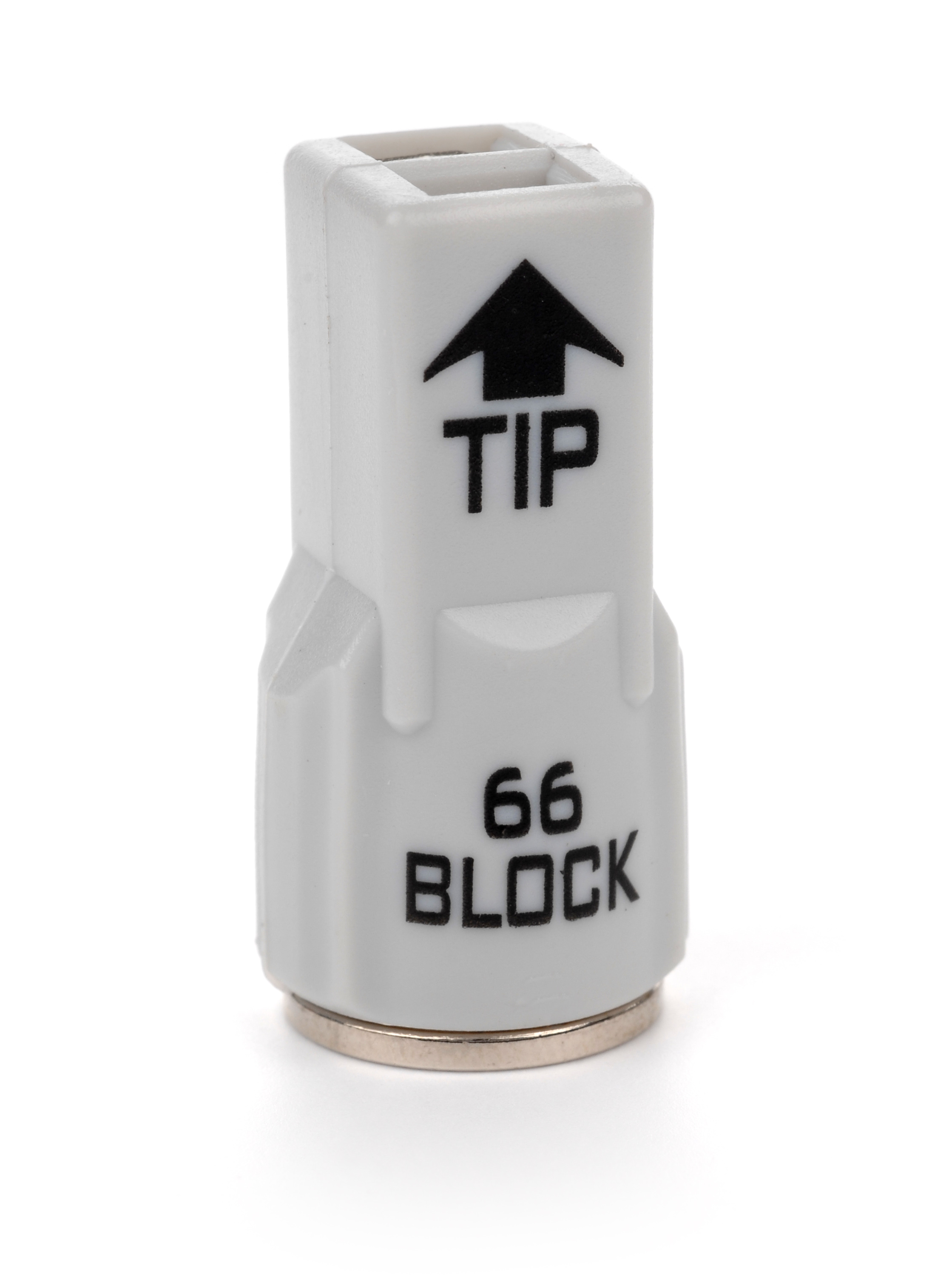

Gale Corporation’s proprietary f-male to 66 block dual binding post adapter; this adapter was specially designed to facilitate rapid testing of terminated 66 blocks. |
|
| Part Number: |
PTNX-66 |
| Price: |
$ 5.50 |
|
|
|
 |

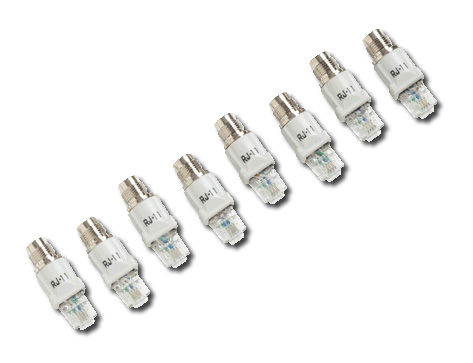

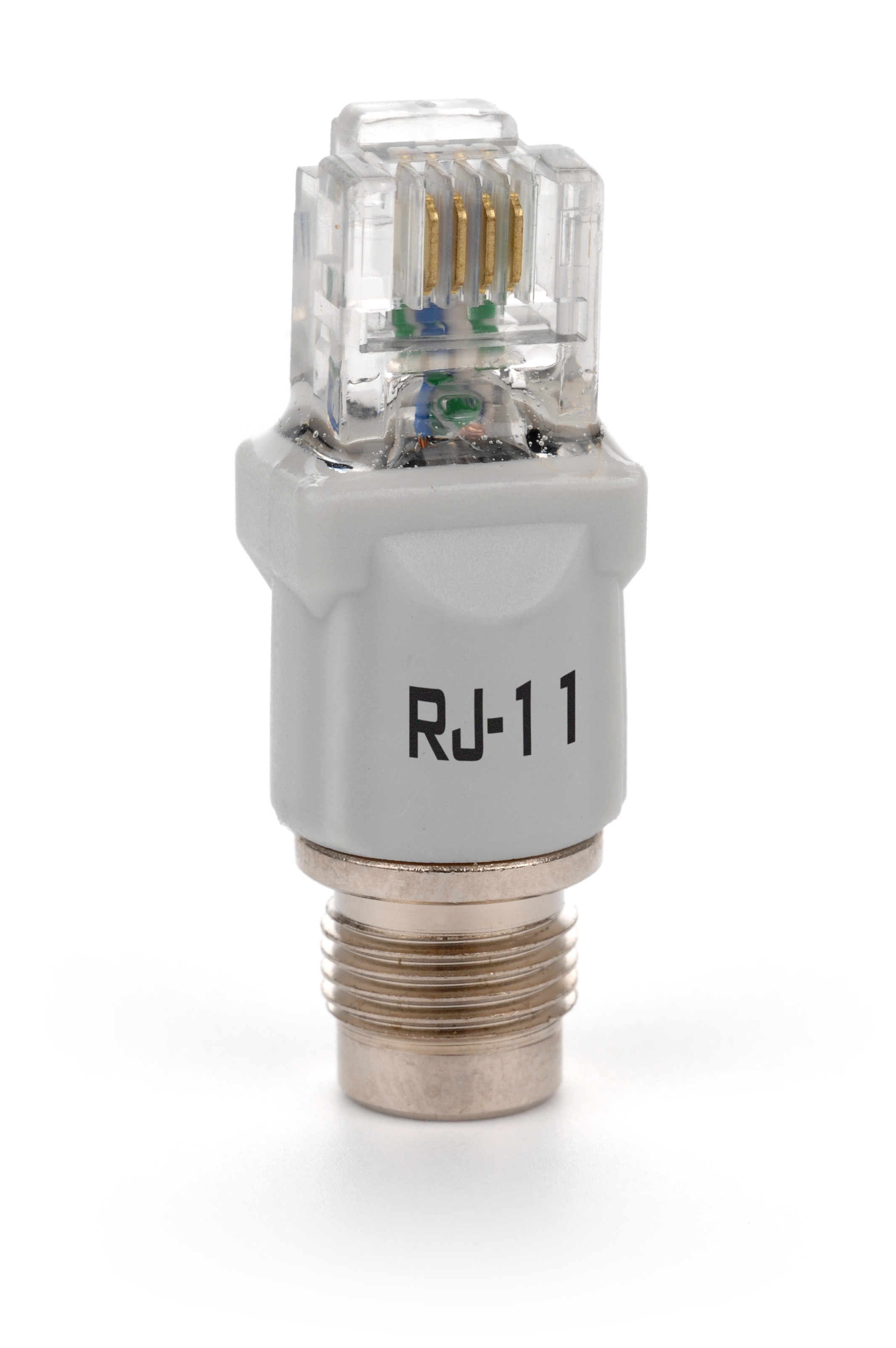

Gale Corporation’s proprietary f-female to RJ-11 4-pin adapter is both compact and allows the Pocket Toner® NX tool to test standard two pair voice jacks. |
|
| Part Number: |
PTNX-RJ11 |
| Price: |
$ 6.70 |
|
|
|
 |

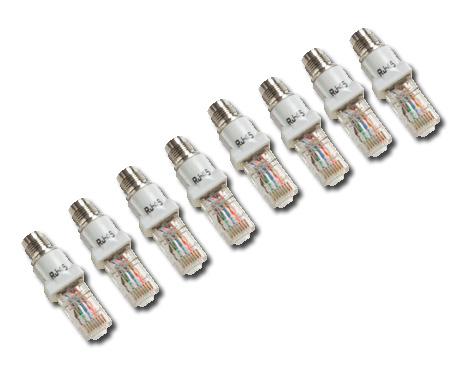

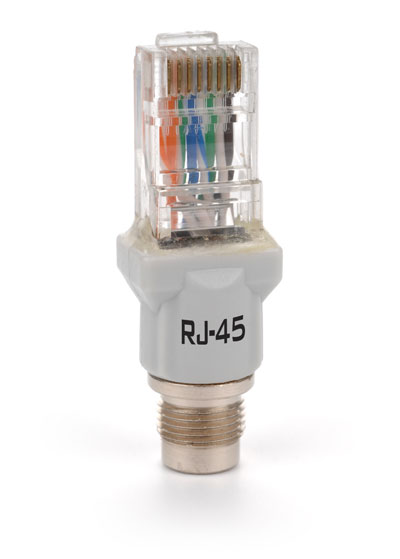

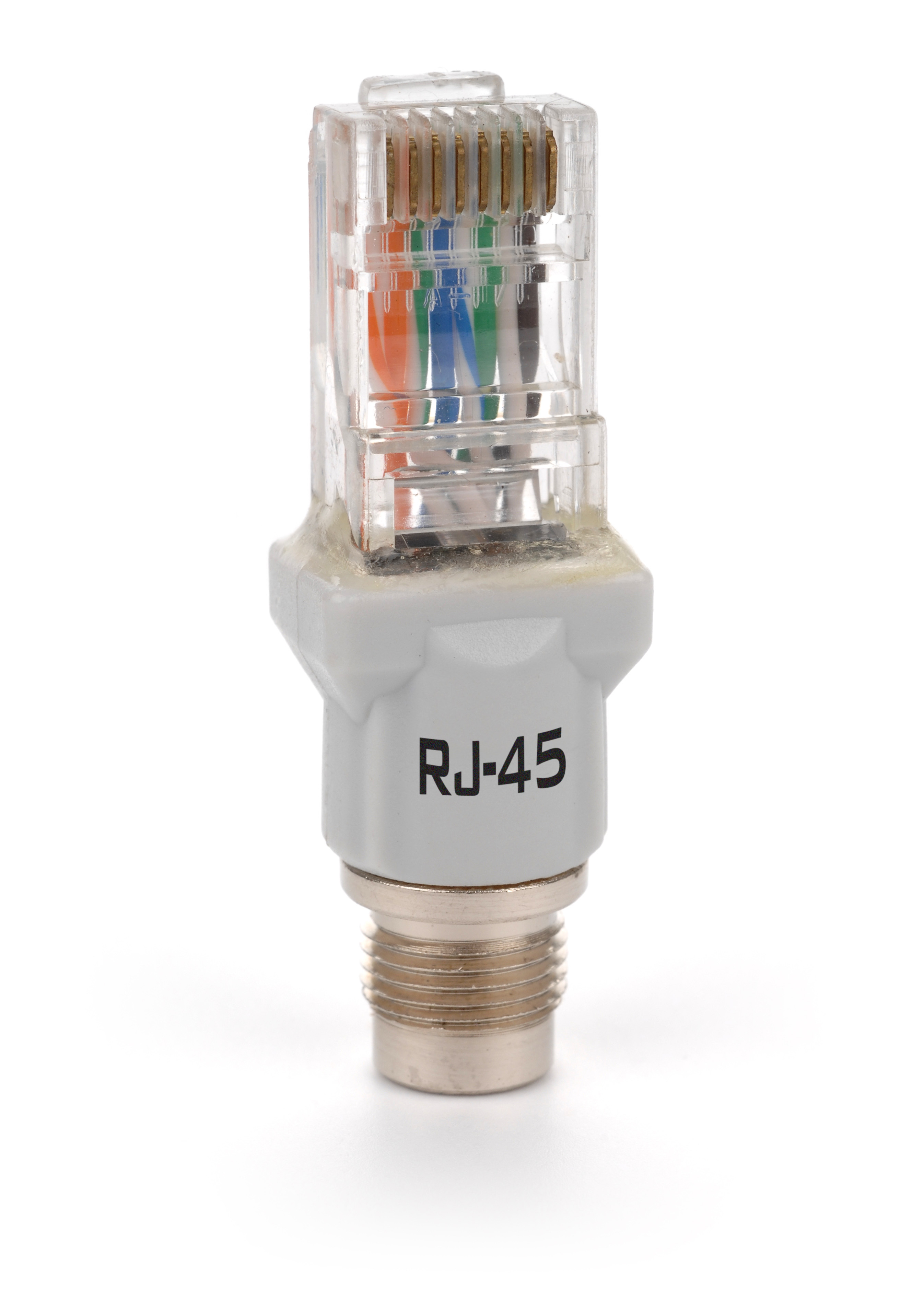

Gale Corporation’s proprietary f-female to RJ-45 8-pin adapter is both compact and allows for testing of data jacks. |
|
| Part Number: |
PTNX-RJ45 |
| Price: |
$ 6.94 |
|
|
|
 |

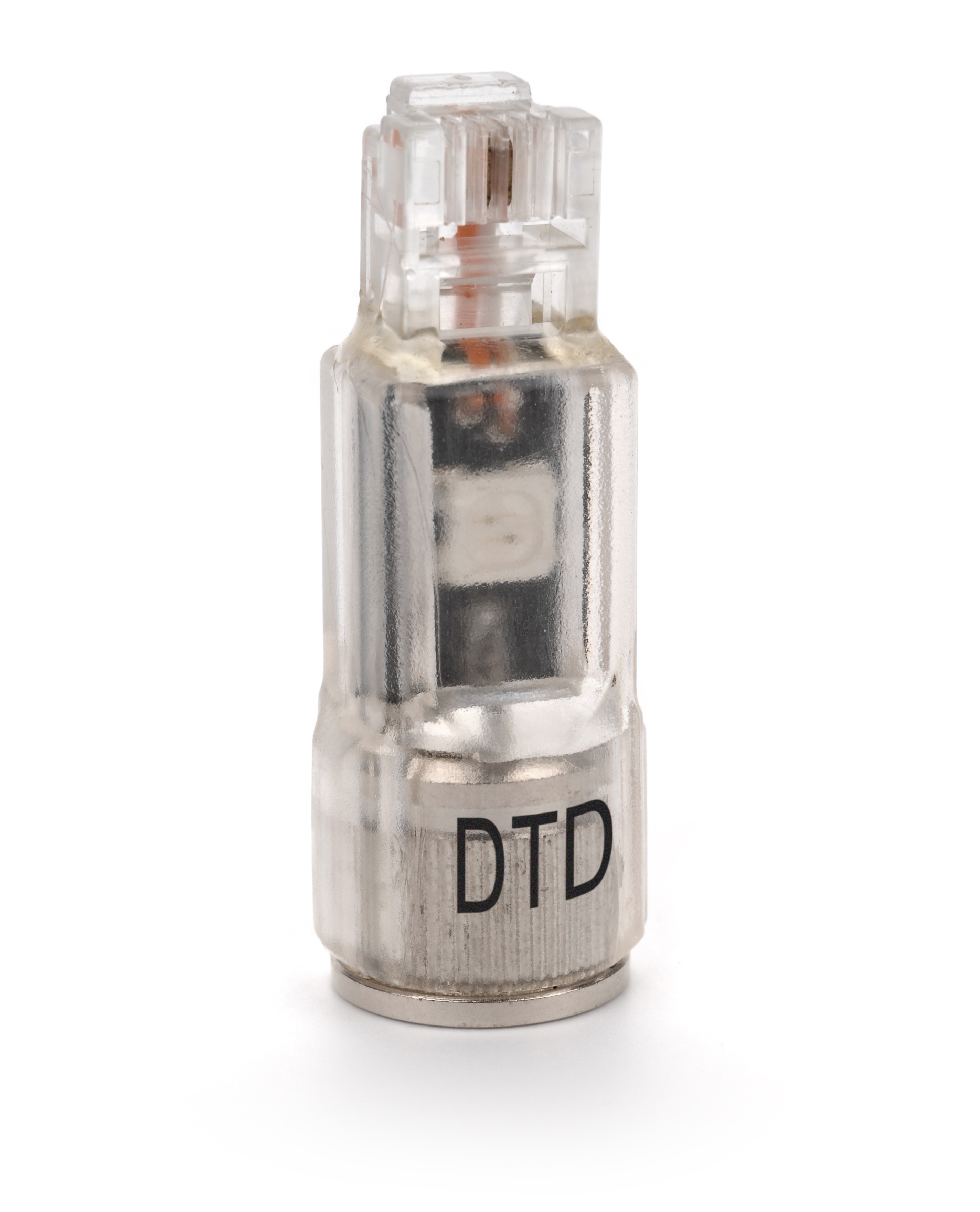

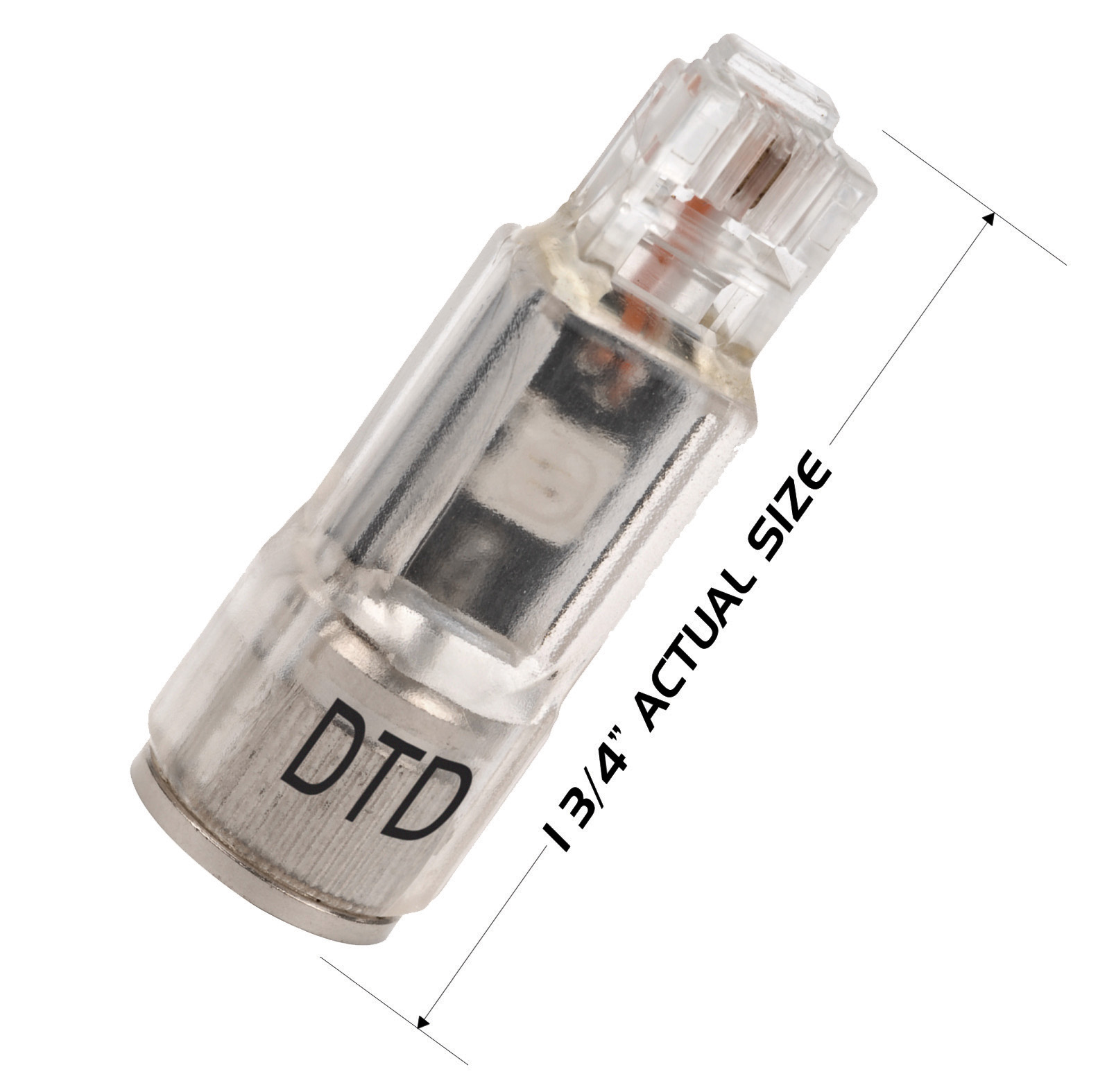

Gale Corporation’s proprietary f-male to RJ-11 2-pin adapter; DTD is designed to indicate, via LEDs, the presence of dial tone voltage and reversed pairs. This great adapter virtually eliminates the need for a telephone butt set. |
|
| Part Number: |
PTNX-DTD |
| Price: |
$ 10.54 |
|
|
|
 |

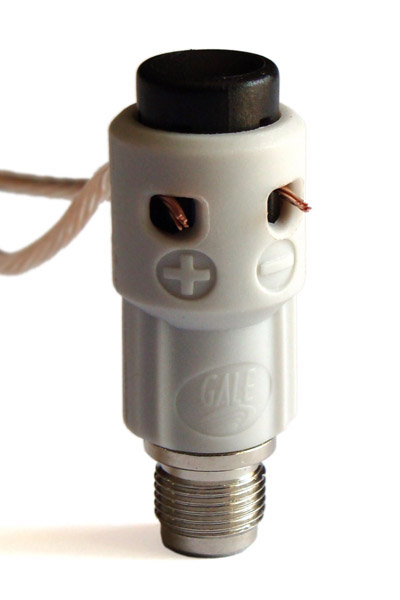

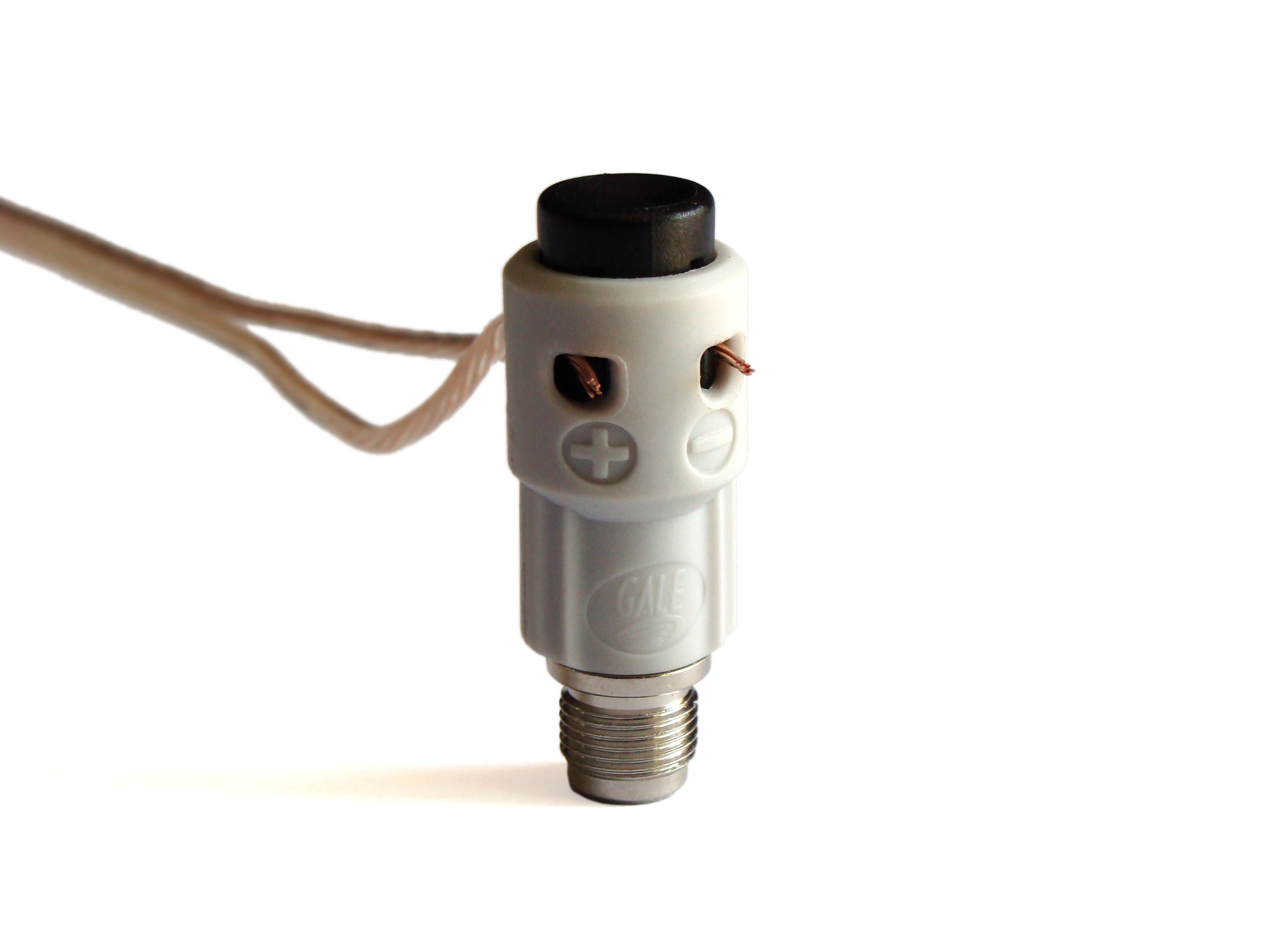

Gale Corporation’s proprietary f-female to 2 conductor push adapter is used to test any 2 conductors from 16-24 gauge wire with a simple push and release button to secure wire for test. This adapter can also be used with ID caps and the Pocket Toner® NX8 tool to test up to 8 bare wire pairs at one time. |
|
| Part Number: |
PTNX-2WC |
| Price: |
$ 8.14 |
|
|
|
 |

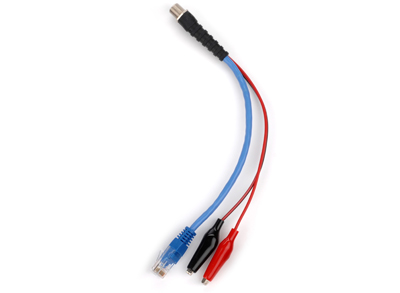

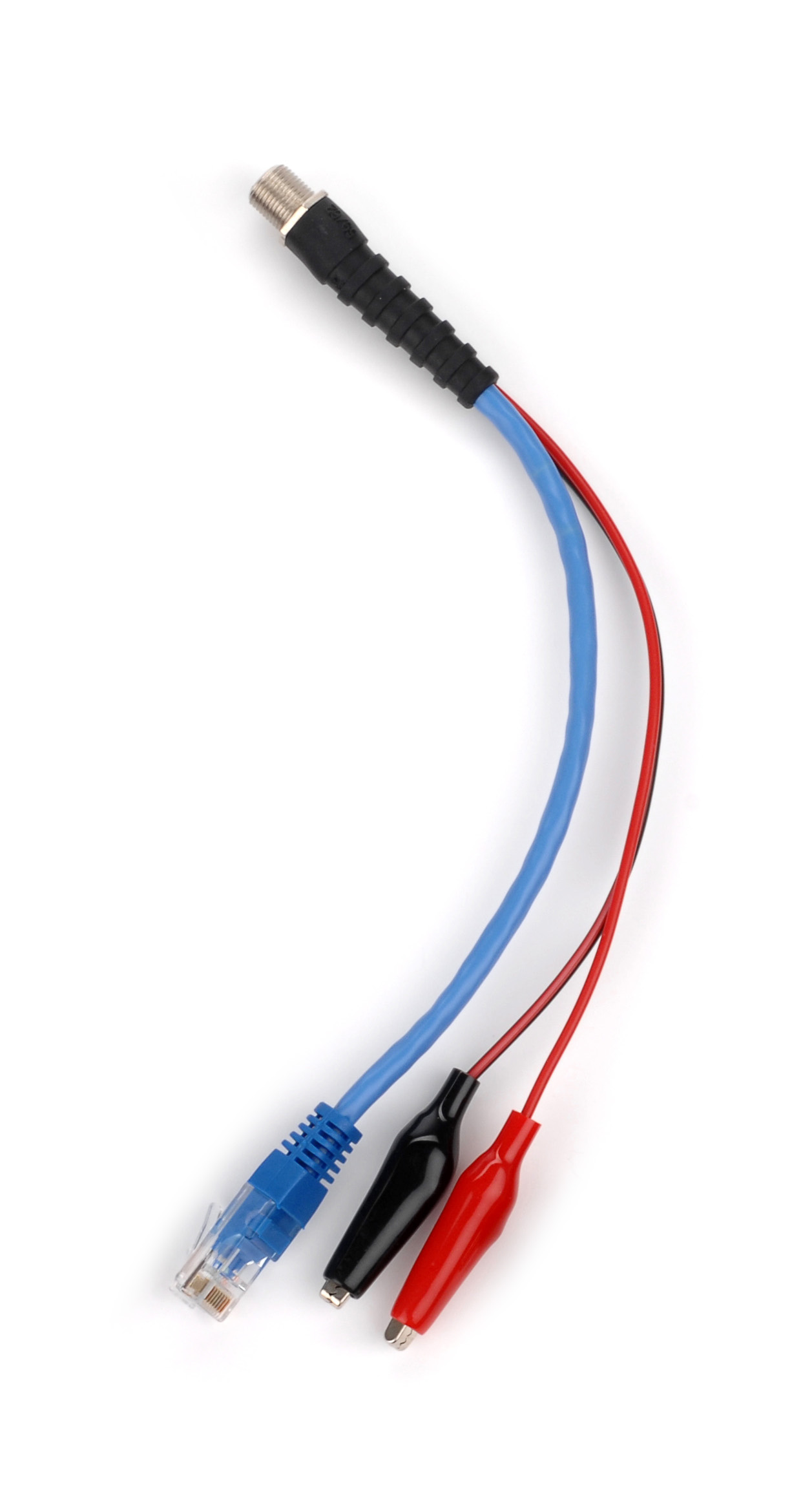

Gale Corporation’s proprietary f-female with an RJ-45 8-pin connector and dual alligator clips, provides testing on either data jacks or bare wire. |
|
| Part Number: |
PT2-RJ45-2CLP |
| Price: |
$ 9.20 |
|
|
|
 |

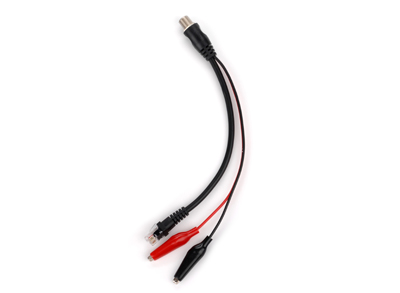

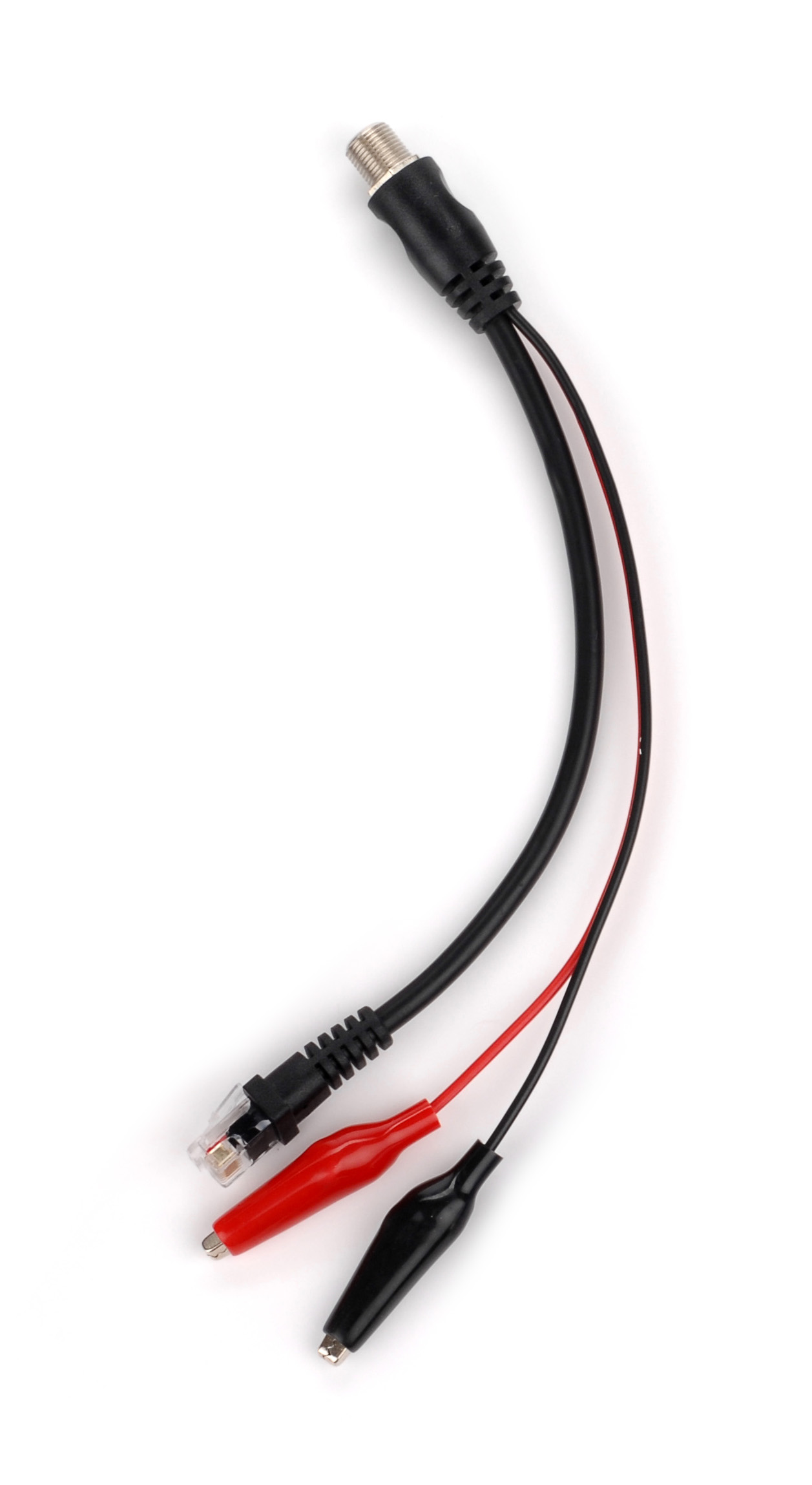

Gale Corporation’s Proprietary f-female with an RJ-11 4-pin connector and dual alligator clips, provides testing on either RJ-11 voice jacks or bare wire. |
|
| Part Number: |
PT2-RJ11-2CLP |
| Price: |
$ 9.20 |
|
|
|
 |

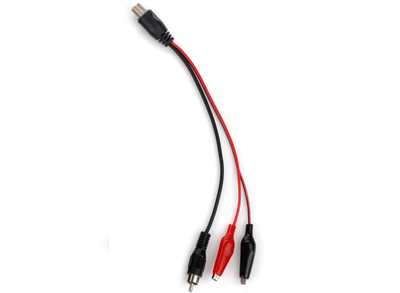

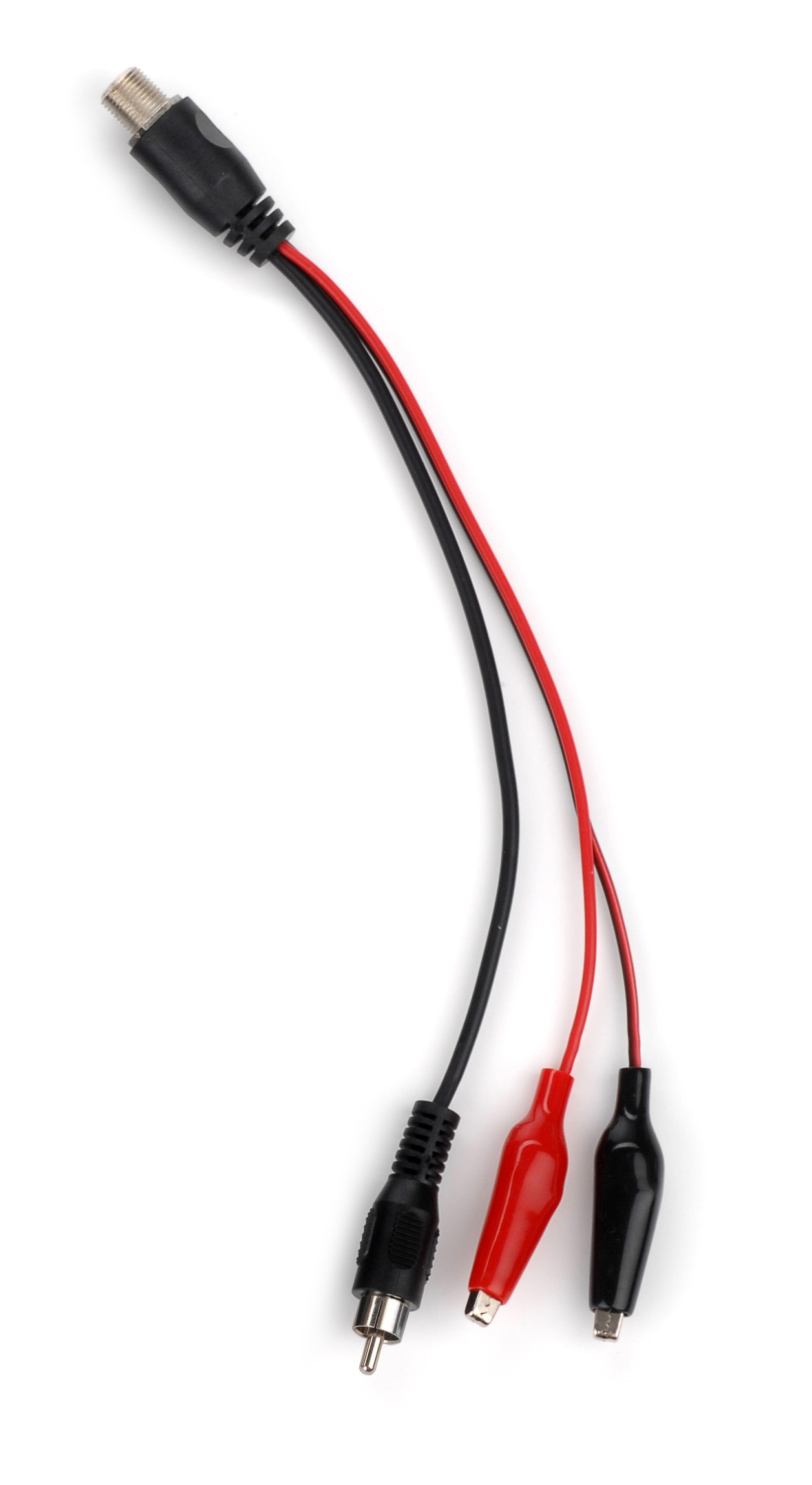

Gale Corporation's proprietary f-female with RCA male and dual alligator clips allows testing of female RCA audio/video cables and wall jacks or unterminated bare wire pairs. |
|
| Part Number: |
PTNX-RCAM-2CLP |
| Price: |
$ 9.20 |
|
|
|
 |

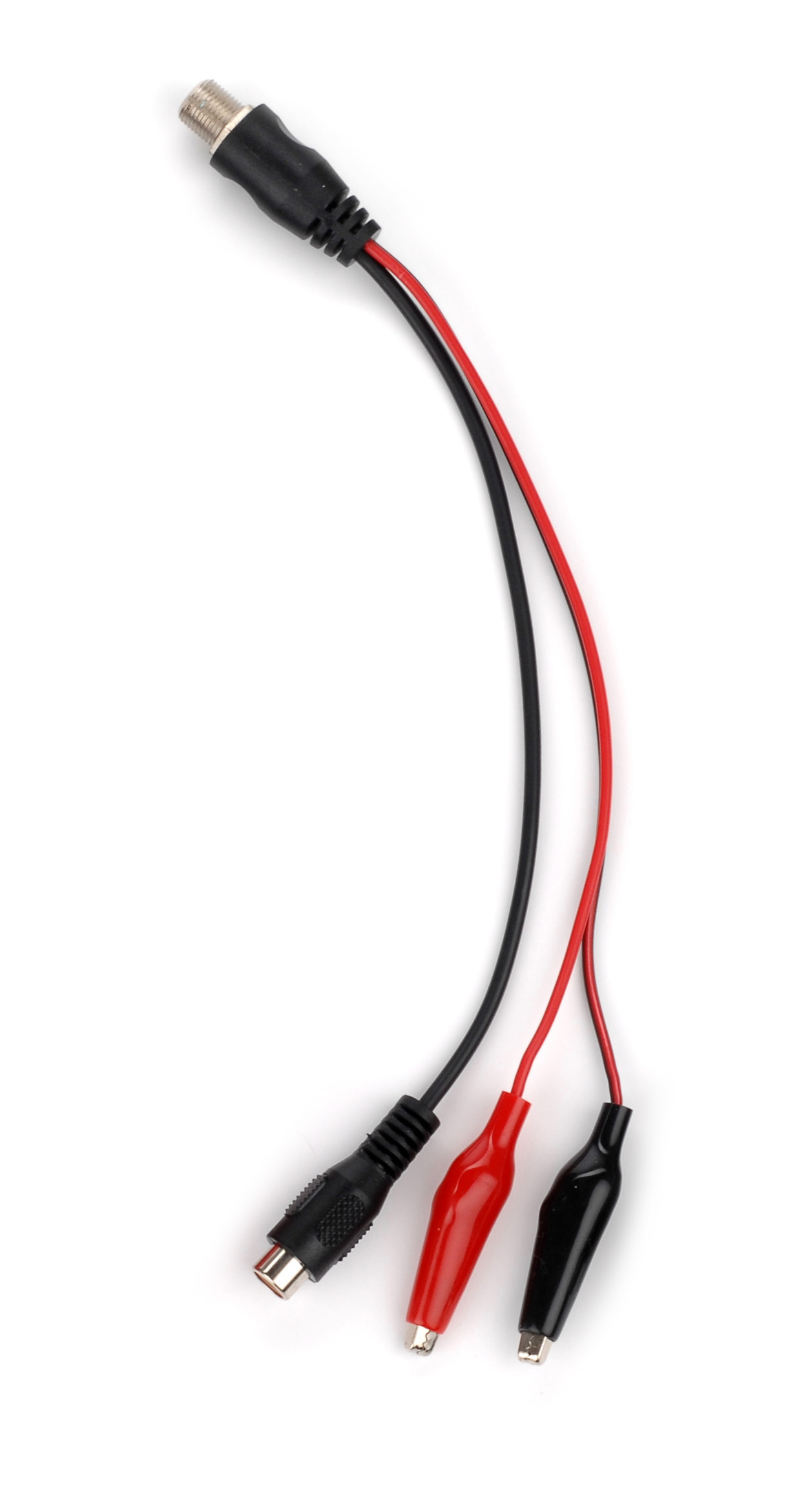

Gale Corporation's proprietary f-female with RCA female and dual alligator clips allows testing of male RCA audio/video cables and wall jacks or unterminated bare wire pairs. |
|
| Part Number: |
PTNX-RCAF-2CLP |
| Price: |
$ 9.20 |
|
|
|
 |

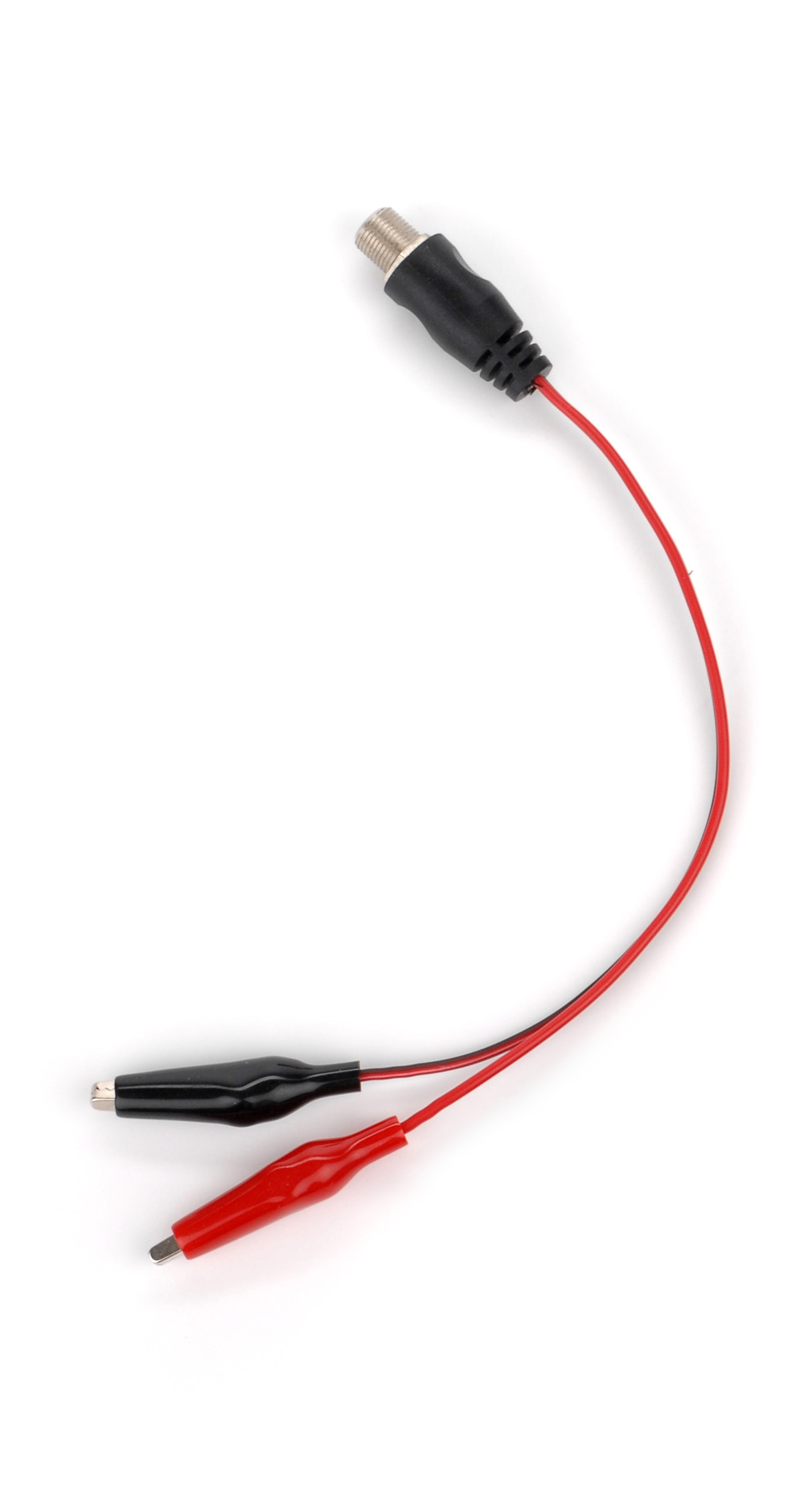

Gale Corporation’s f-female with dual alligator clips is designed to test bare wire. |
|
| Part Number: |
PTNX-FF-CLP |
| Price: |
$ 6.20 |
|
|
|
 |

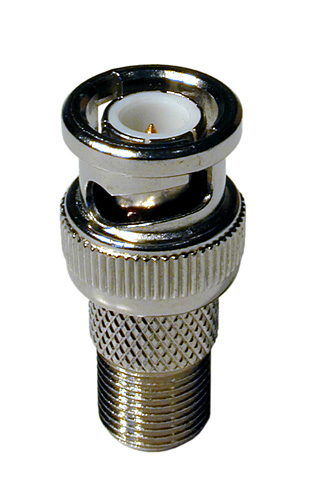

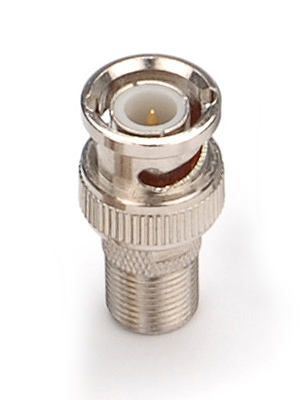

F-female to BNC female adapter is used to test cables or wall jacks terminated with BNC male connectors. |
|
| Part Number: |
PT2-FF-BNCM |
| Price: |
$ 2.20 |
|
|
|
 |

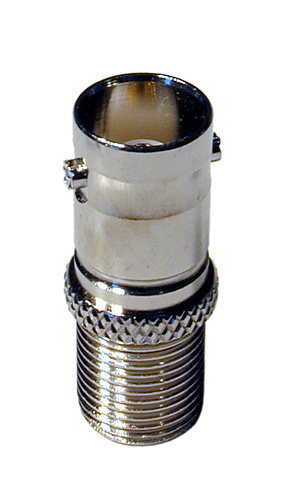

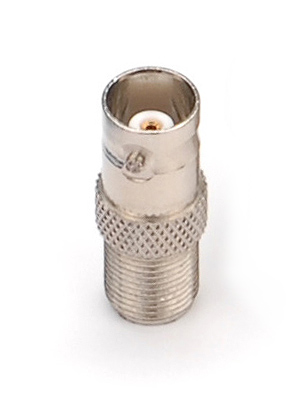

F-female to BNC male adapter is used to test cables or wall jacks terminated with BNC male connectors. |
|
| Part Number: |
PT2-FF-BNCF |
| Price: |
$ 2.20 |
|
|
|
 |

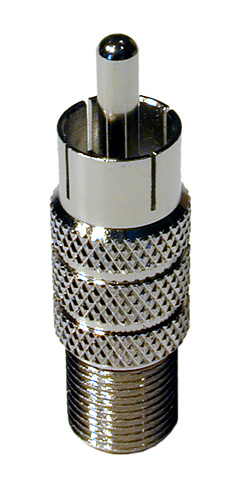

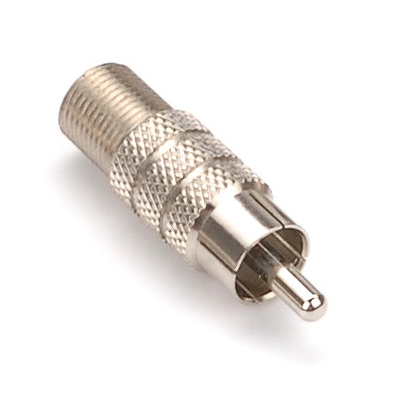

F-female to RCA male adapter is used to test cables or wall jacks terminated with RCA female connectors. |
|
| Part Number: |
PT2-FF-RCAM |
| Price: |
$ 1.84 |
|
|
|
 |

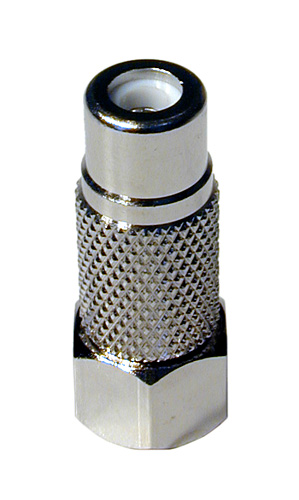

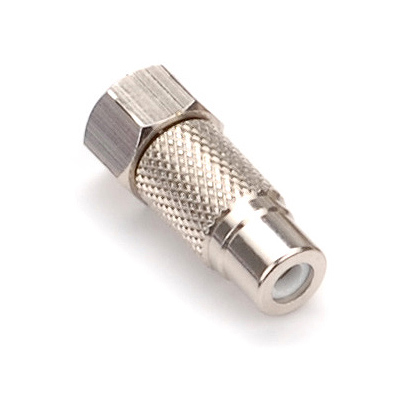

F-male to RCA female adapter is used to test cables or wall jacks terminated with RCA male connectors. |
|
| Part Number: |
PT2-FF-RCAF |
| Price: |
$ 3.04 |
|
|
|
 |

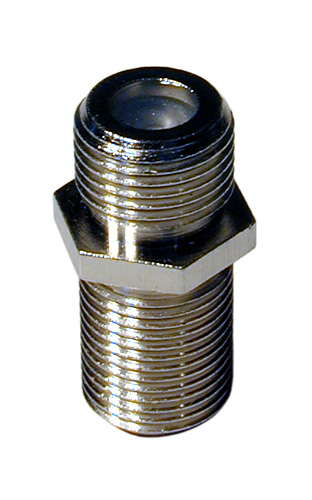

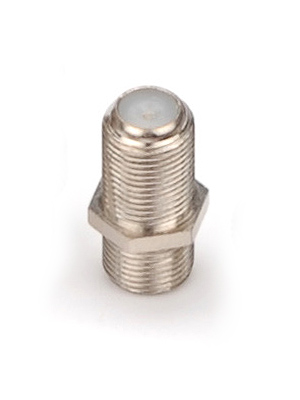

Standard female to female f-type coupler used to interface with f-male connectors and adapters. |
|
| Part Number: |
PT2-F-81 |
| Price: |
$ 1.48 |
|
|
|
 |

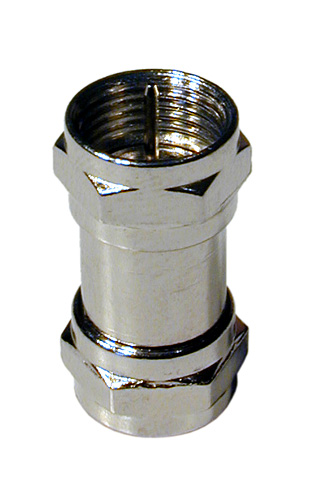

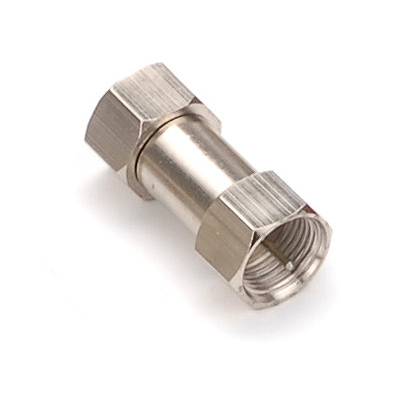

Standard male to male f-type coupler used to interface with f-female connectors and adapters. |
|
| Part Number: |
PT2-F-71 |
| Price: |
$ 1.78 |
|
|
|
 |

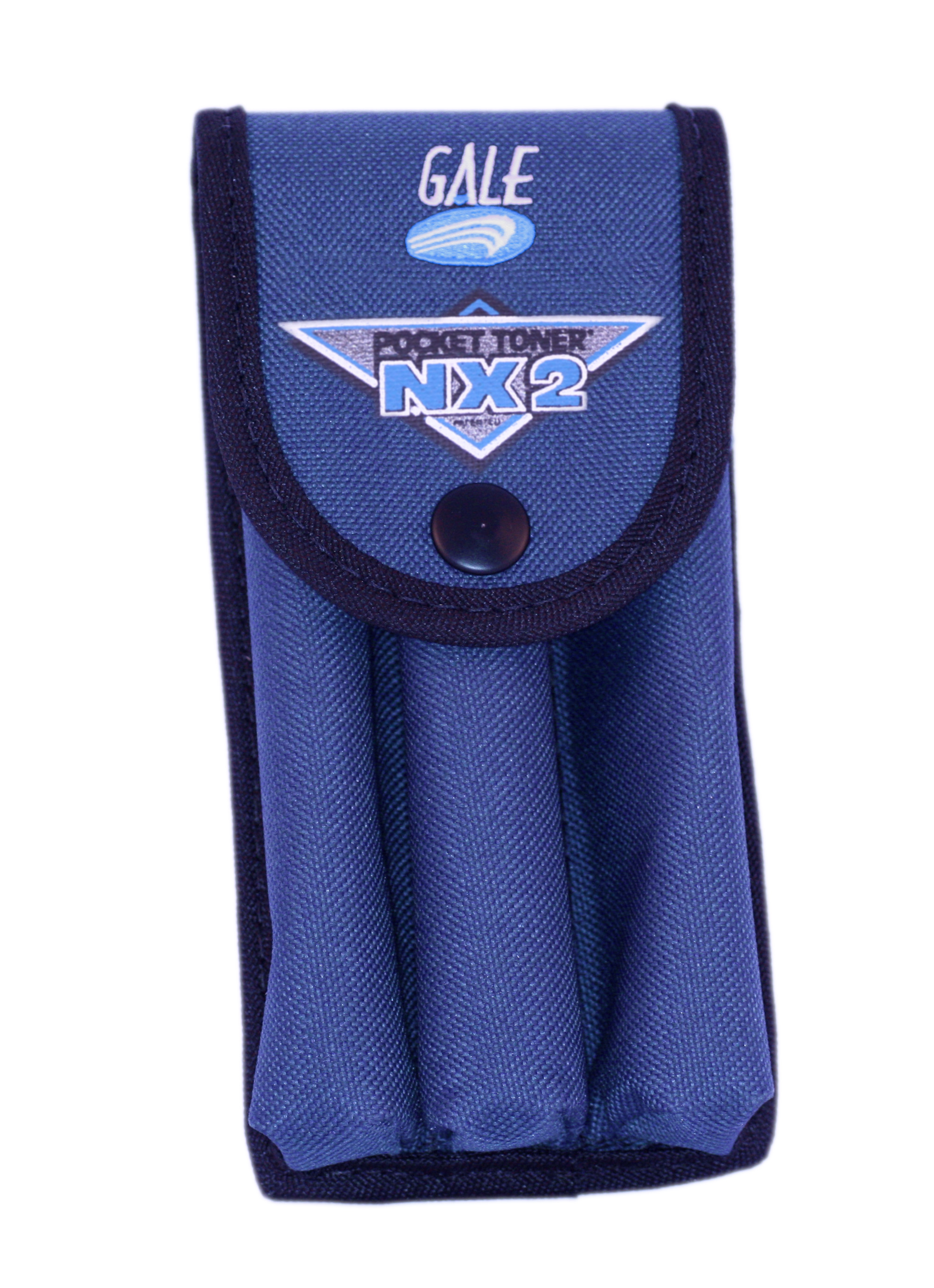

This durable canvas carrying case houses the smaller Pocket Toner® NX2 kits. It features three bays in which the Pocket Toner® NX2 and various adapters can be inserted. The provided plastic tube is perfect for housing various adapters. The upper flap is held closed with durable velcro and a spring metal clip on the back allows it to be easily attached to a belt, tool bag or bucket. |
|
| Part Number: |
PTNX2-CASE-SM-BLU |
| Price: |
$ 14.95 |
|
|
|
 |

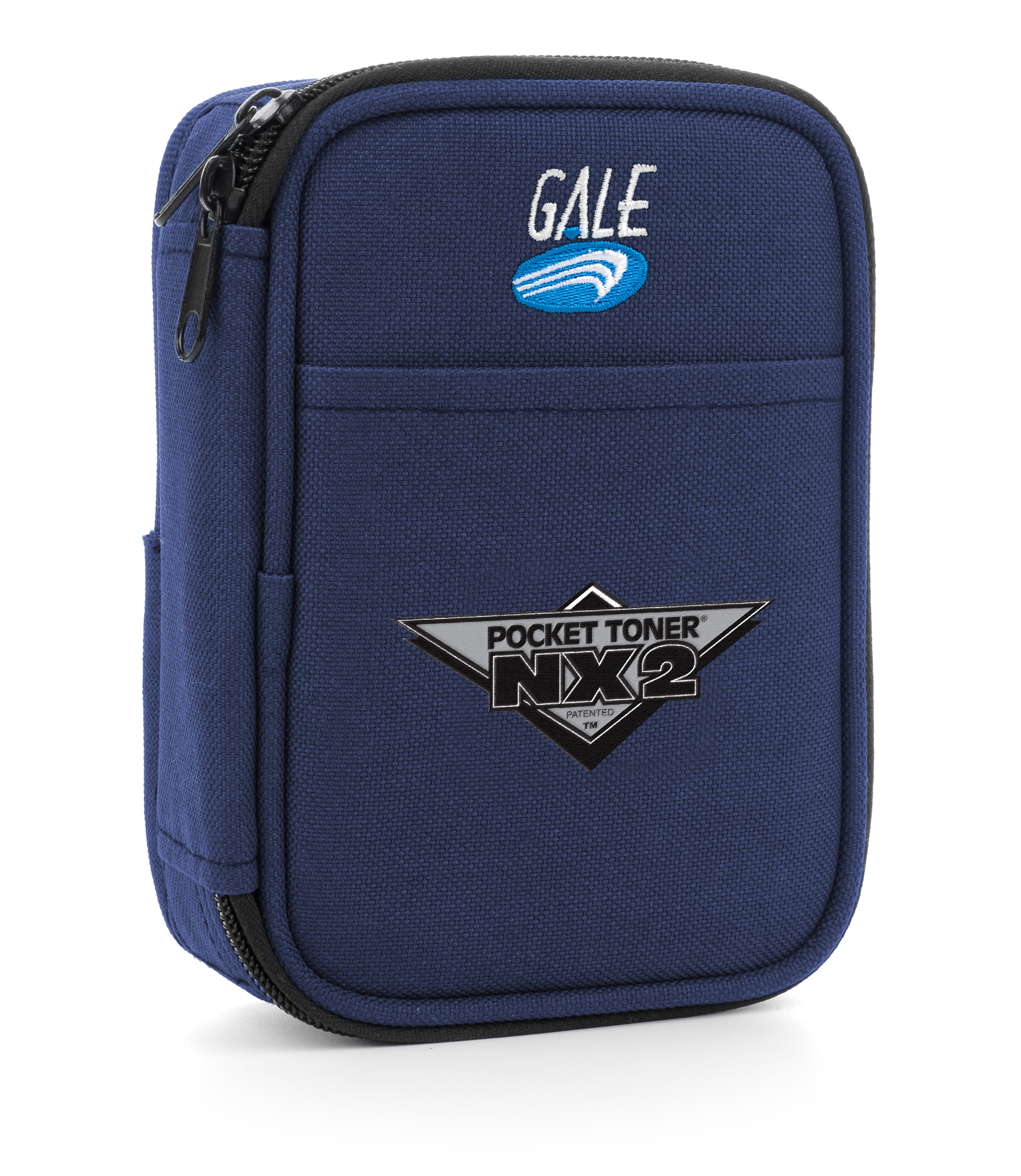

This durable canvas carrying case houses all larger "deluxe" Pocket Toner® NX2 kits. It features a custom cut foam interior in which the Pocket Toner® NX2 and various adapters can be inserted. There is one external pocket and one internal pocket built into the cover to house literature and/or alligator clip adapters. A high quality 2-way plastic zipper seals the case for storage and a sturdy spring metal clip on the back allows it to be easily attached to a belt, tool bag or bucket. |
|
| Part Number: |
PTNX2-CASE-DLX-BLU |
| Price: |
$ 19.74 |
|
|
|
 |

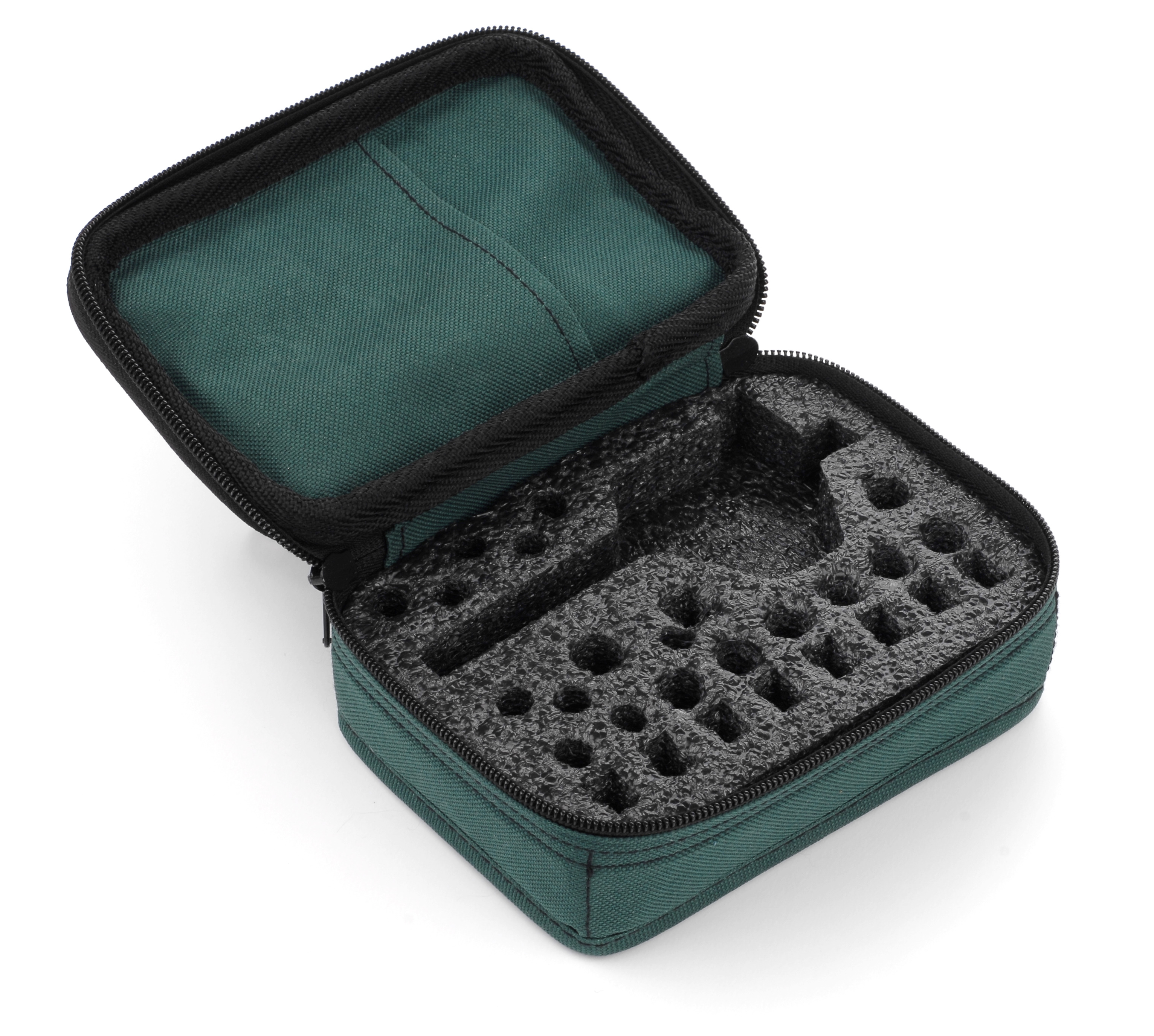

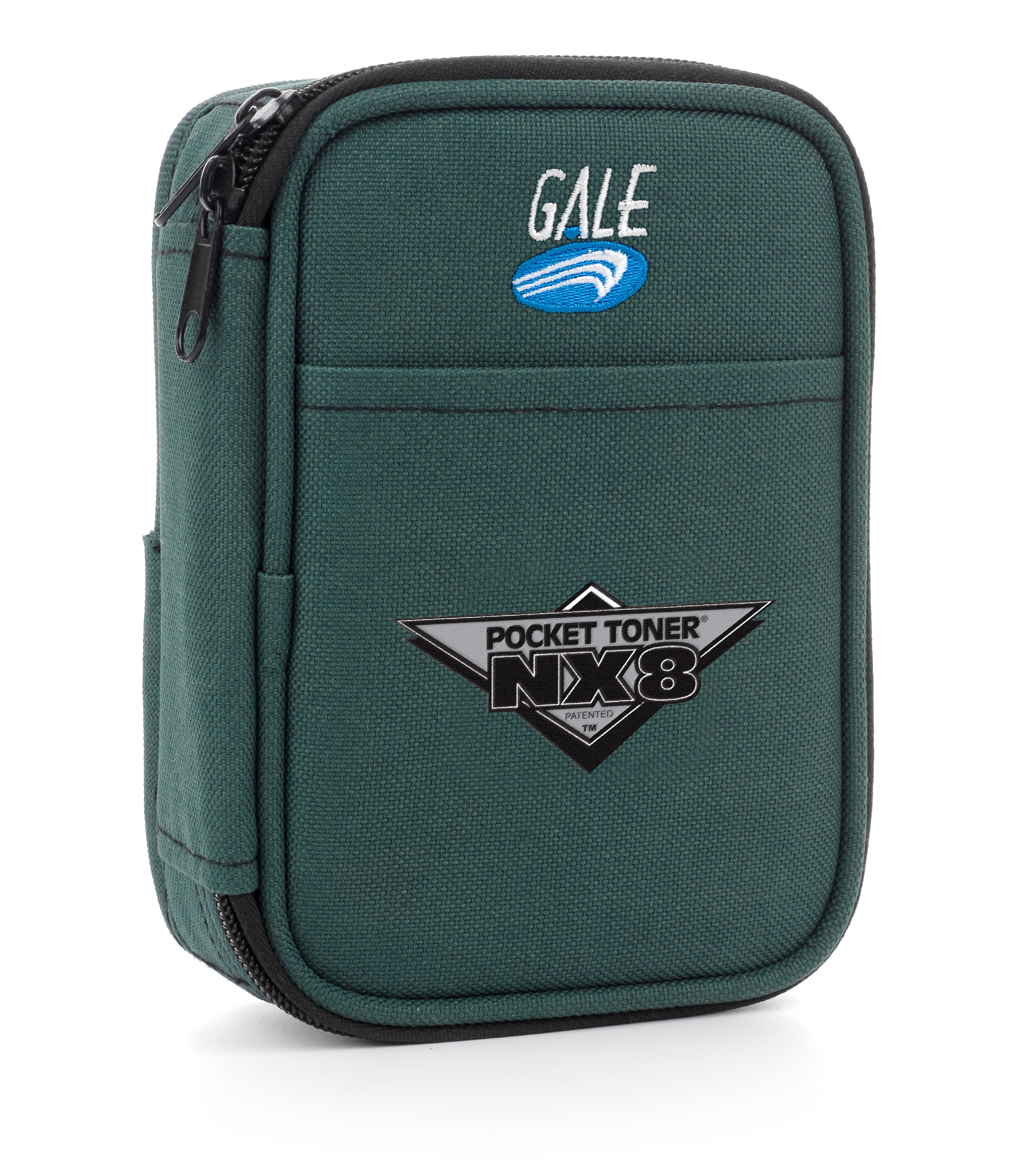

This durable canvas carrying case houses all Pocket Toner® NX8 kits. It features a custom cut foam interior in which the Pocket Toner® NX8 and various adapters can be inserted. There is one external pocket and one internal pocket built into the cover to house literature and/or alligator clip adapters. A high quality 2-way plastic zipper seals the case for storage and a sturdy spring metal clip on the back allows it to be easily attached to a belt, tool bag or bucket. |
|
| Part Number: |
PTNX8-CASE-DLX-GRN |
| Price: |
$ 19.74 |
|
|
|
 |

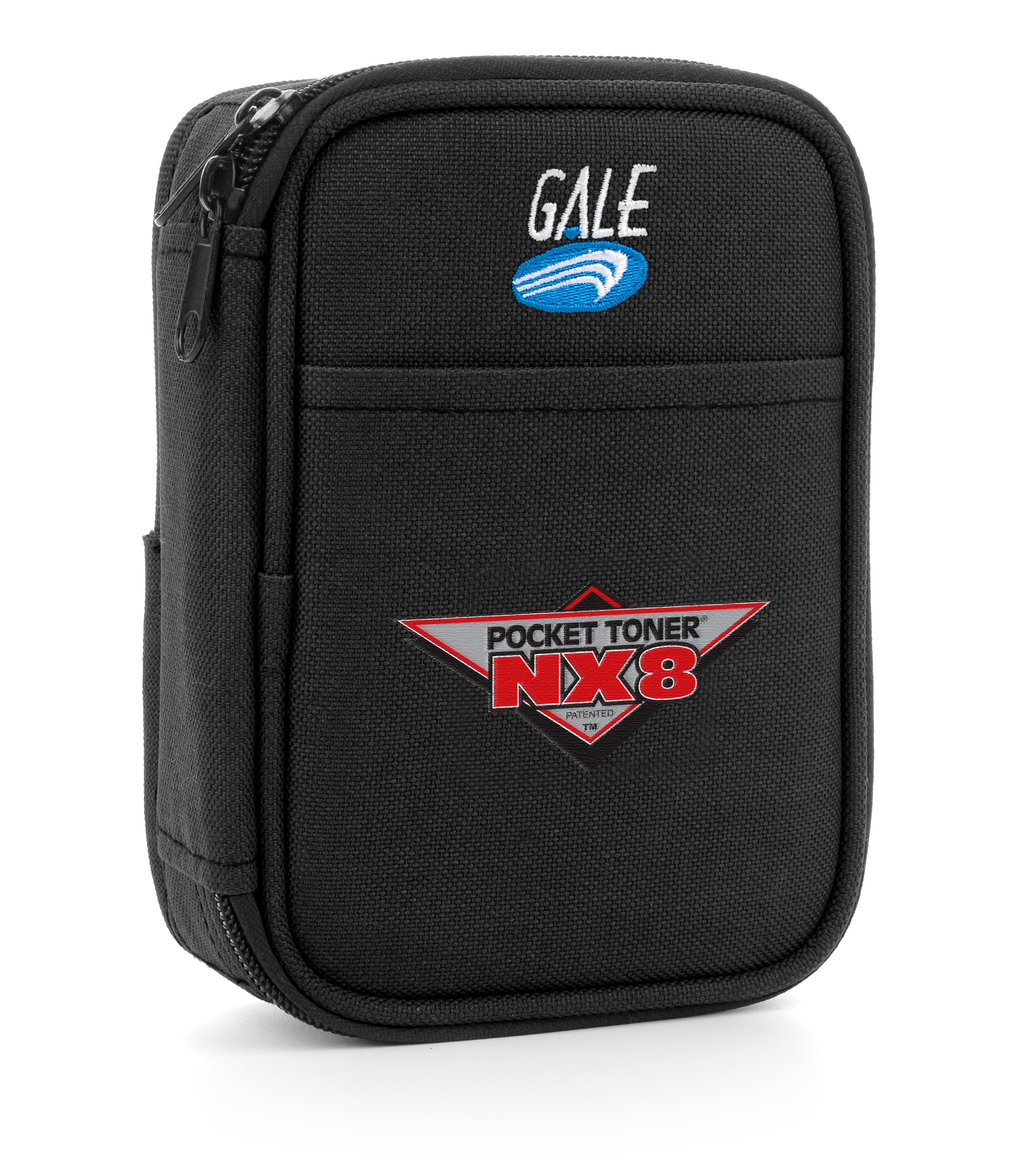

This durable canvas carrying case houses all Pocket Toner® NX8 kits. It features a custom cut foam interior in which the Pocket Toner® NX8 and various adapters can be inserted. There is one external pocket and one internal pocket built into the cover to house literature and/or alligator clip adapters. A high quality 2-way plastic zipper seals the case for storage and a sturdy spring metal clip on the back allows it to be easily attached to a belt, tool bag or bucket. This case is colored Black like the NX8 security and fire kit. |
|
| Part Number: |
PTNX8-CASE-DLX-BLK |
| Price: |
$ 19.74 |
|
|
|
 |

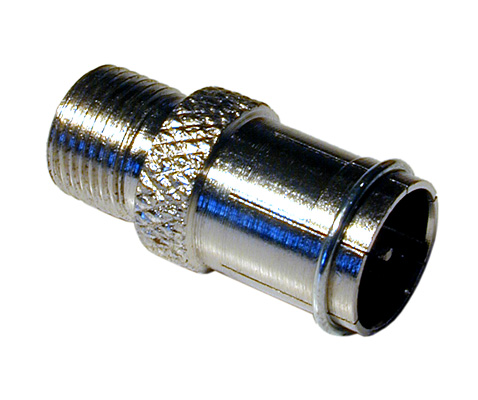

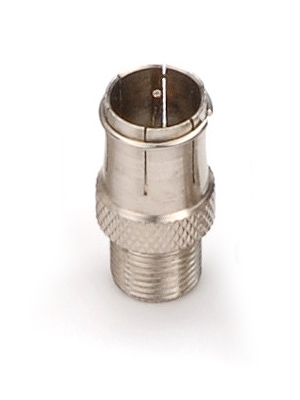

This adapter converts a standard f-male connector to a Push-On style f-male connector. |
|
| Part Number: |
PT2-F-PUSH |
| Price: |
$ 1.72 |
|
|
|
 |

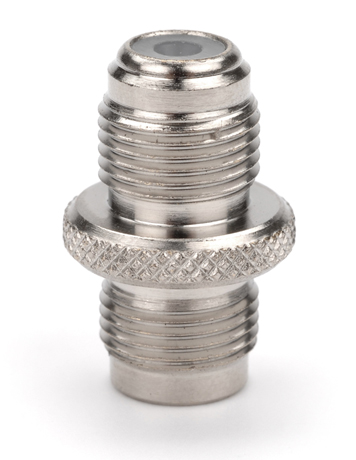

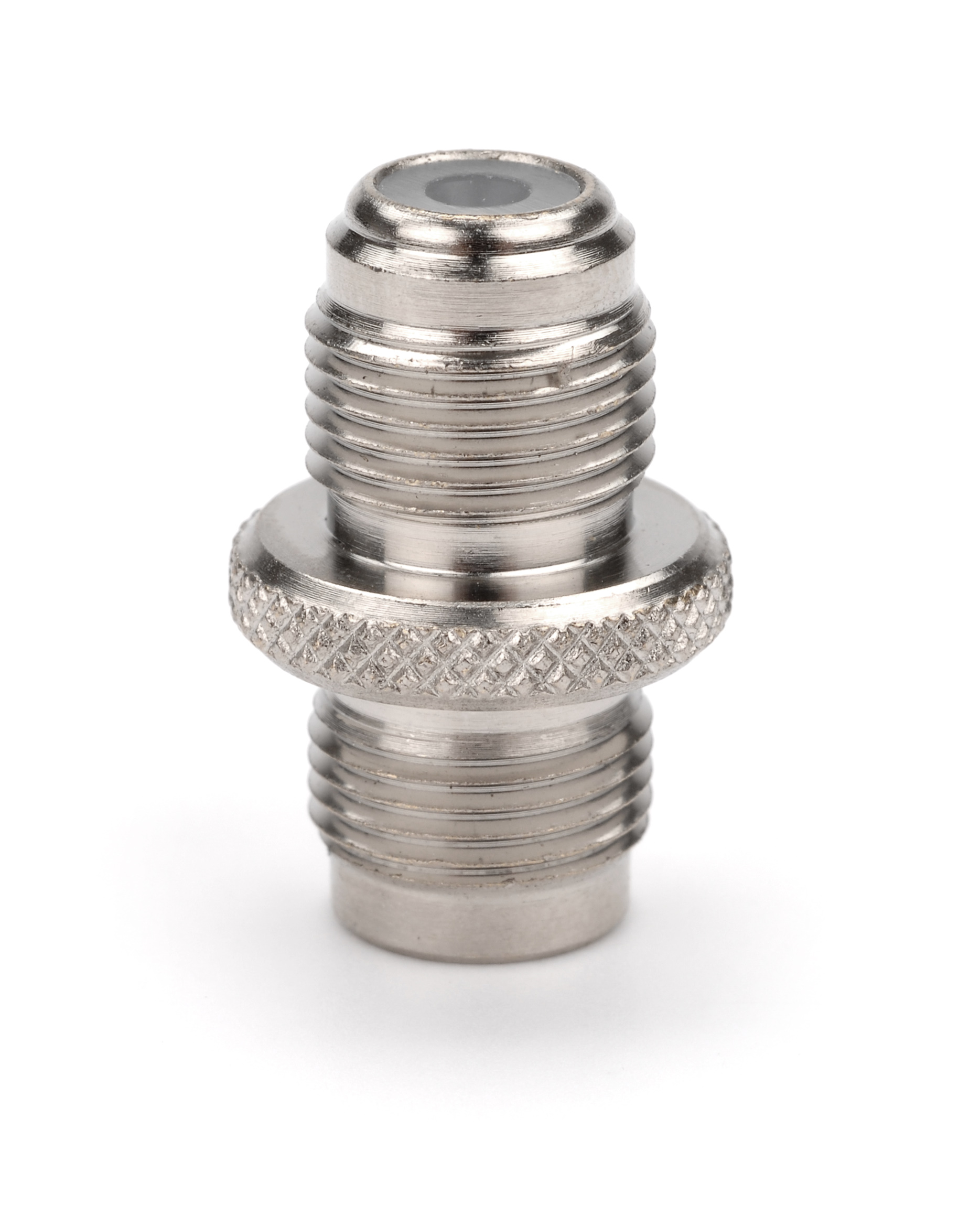

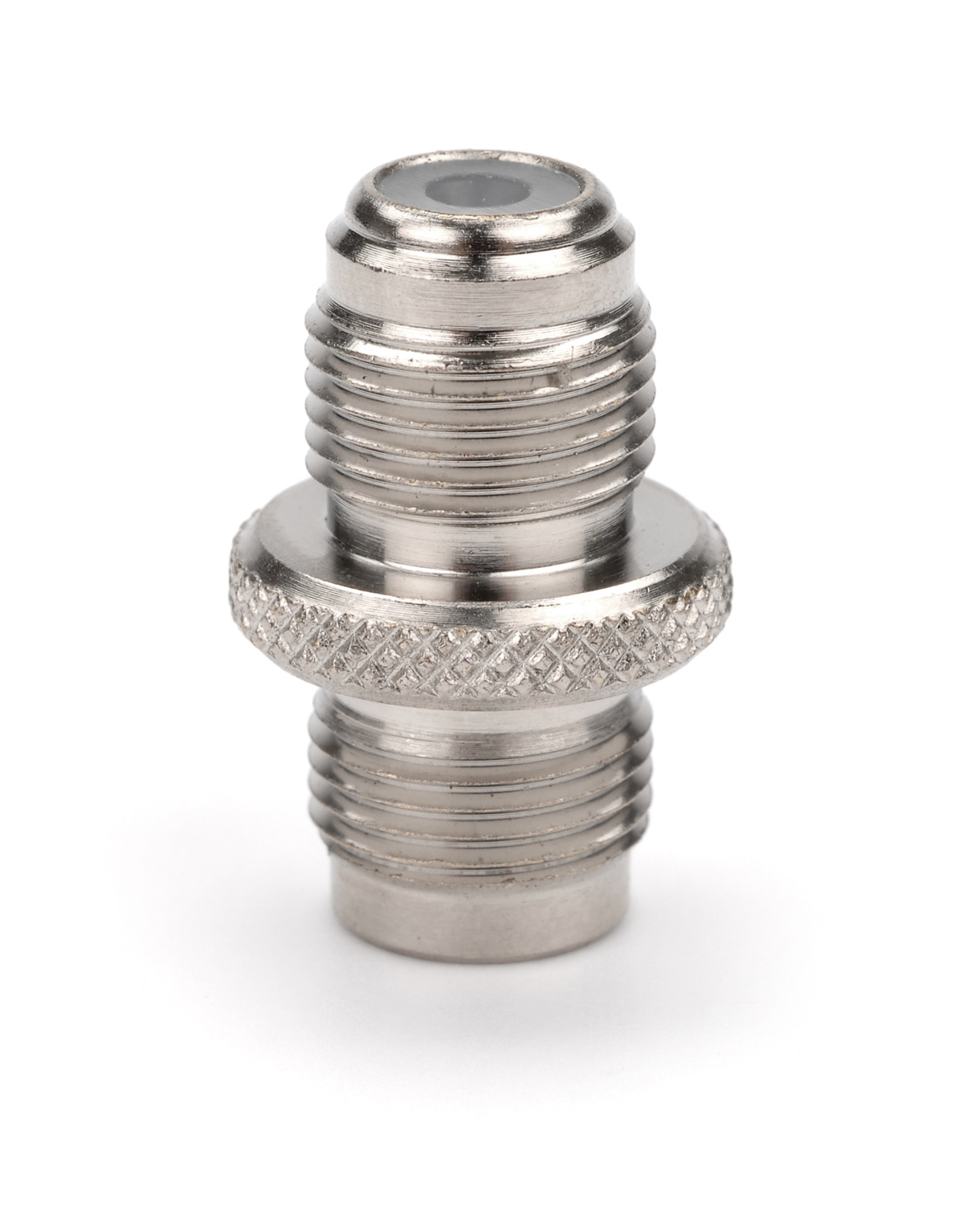

Female to female f-type connector, with three threads removed for rapid testing of f-type connectors. Adapter is also used on all PTNX toners as a replaceable coupler. |
|
| Part Number: |
PTNX-F-81-SPEED |
| Price: |
$ 2.14 |
|
|
|
 |

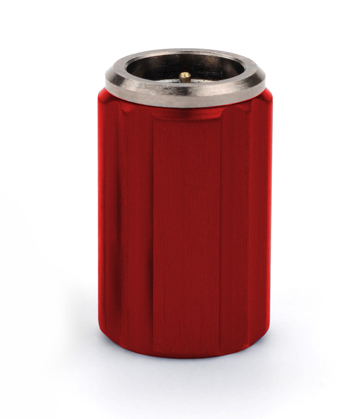

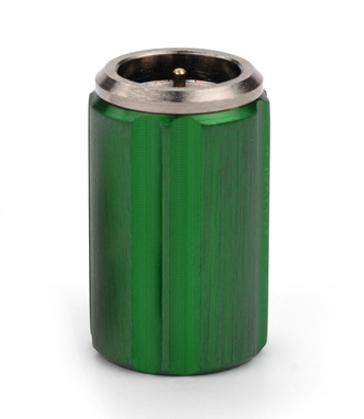

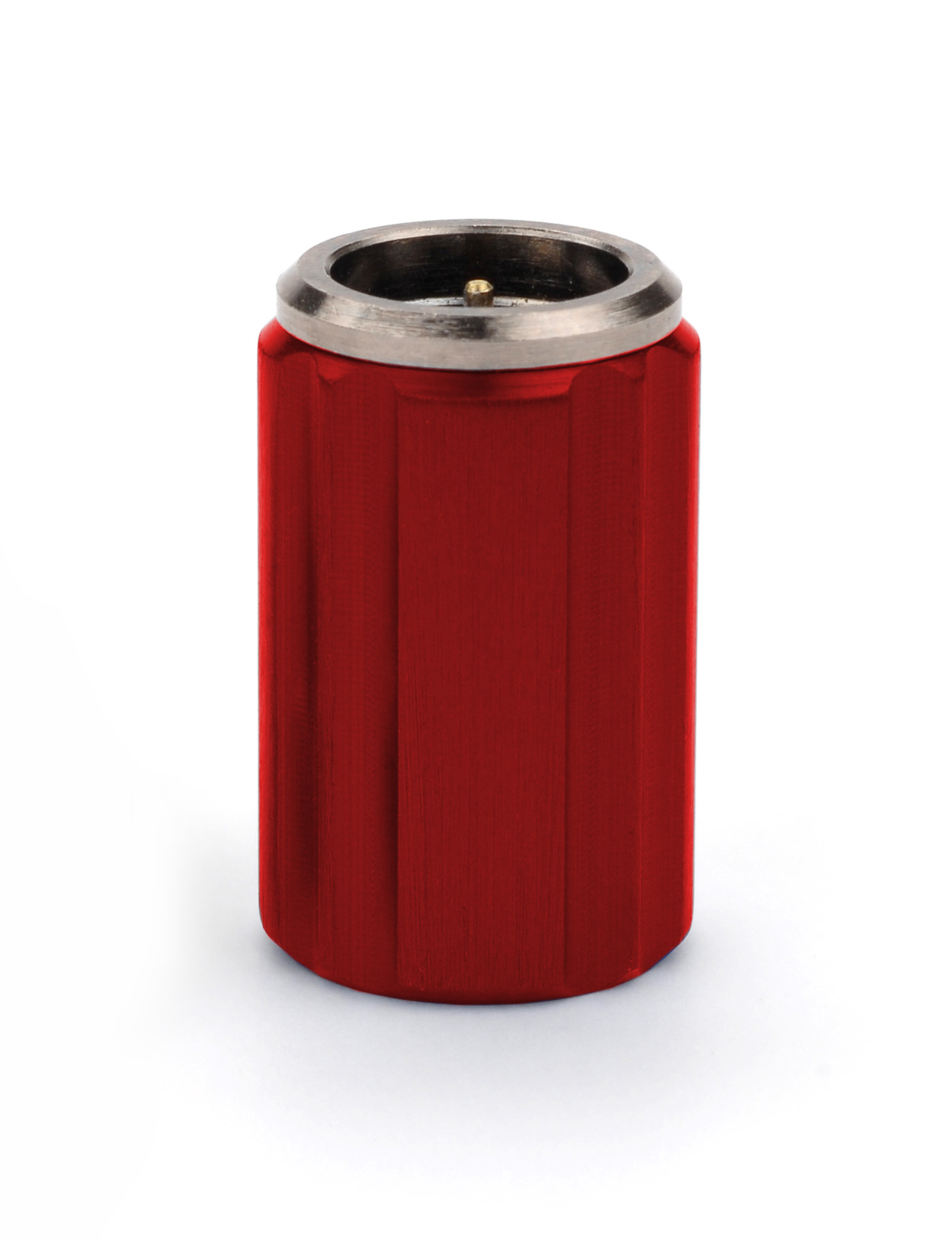

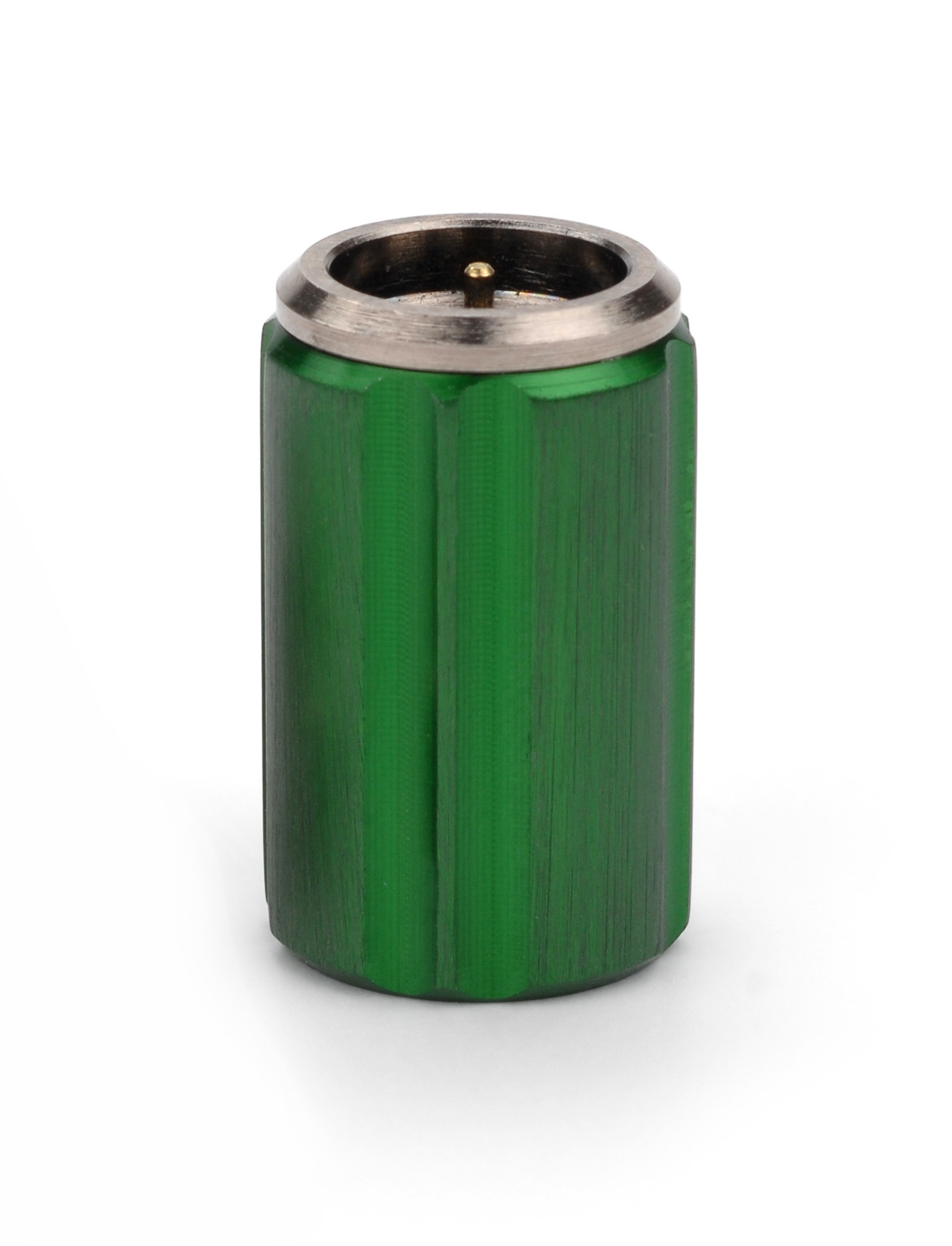

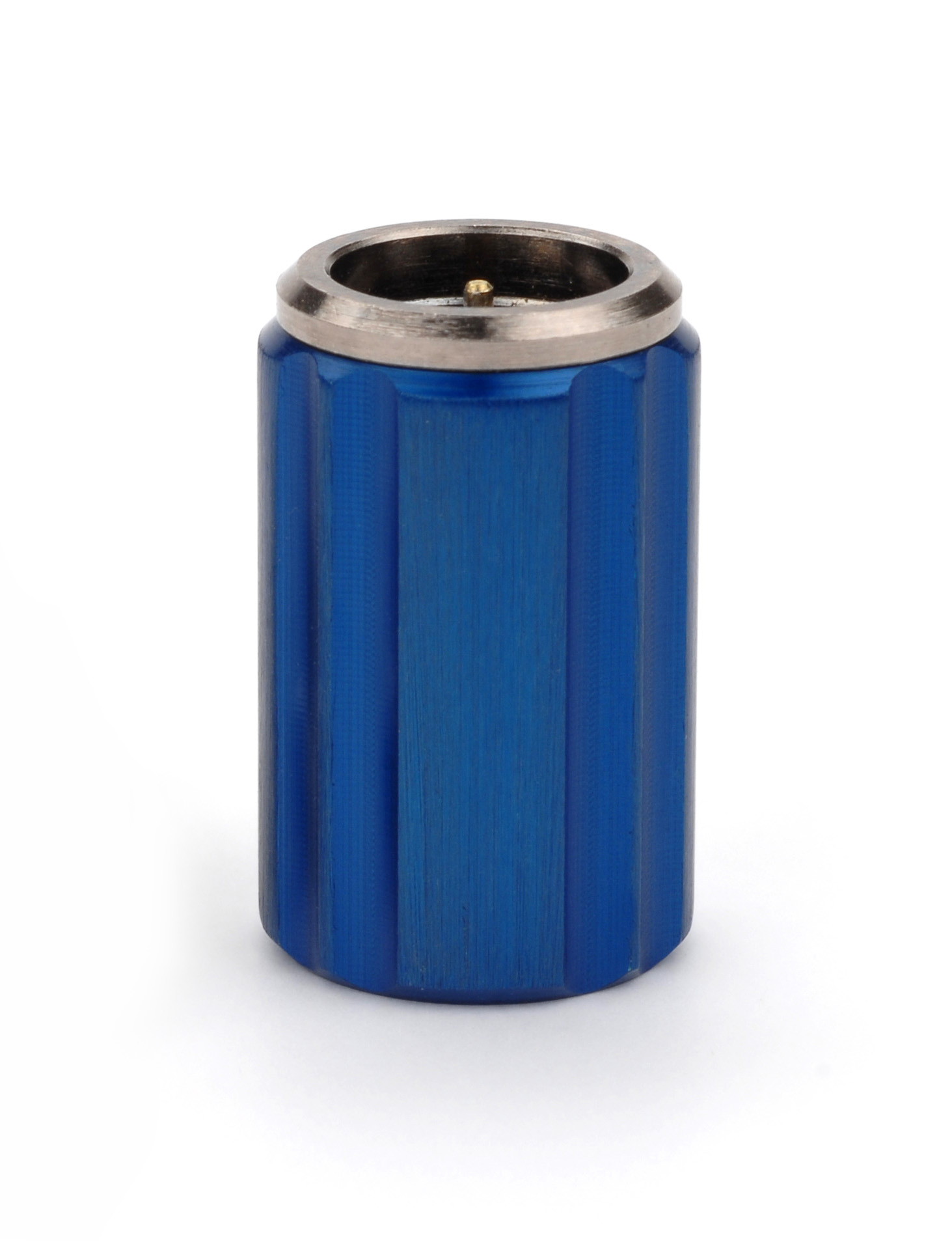

Pocket Toner® NX1, NX2 and NX8 have a versatile bi-gender detachable buzzer that has voltage protection (6-48v). The Toner Unit is used to indicate continuity with an audible tone when used with the PTNX toners. This is the Toner Unit for PTNX1. |
|
| Part Number: |
PTNX1-TONER |
| Price: |
$ 16.47 |
|
|
|
 |

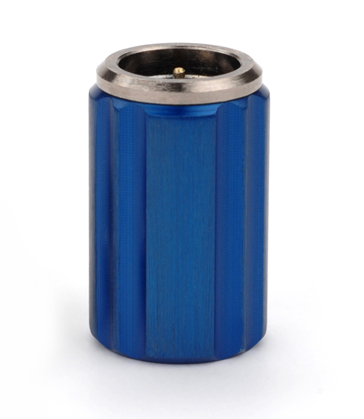

Pocket Toner® NX1, NX2 and NX8 have a versatile bi-gender detachable buzzer that has voltage protection (6-48v). The Toner Unit is used to indicate continuity with an audible tone when used with the PTNX toners. This is the Toner Unit for PTNX2. |
|
| Part Number: |
PTNX2-TONER |
| Price: |
$ 16.47 |
|
|
|
 |
Pocket Toner® NX1, NX2 and NX8 have a versatile bi-gender detachable buzzer that has voltage protection (6-48v). The Toner Unit is used to indicate continuity with an audible tone when used with the PTNX toners. This is the Toner Unit for PTNX8. |
|
| Part Number: |
PTNX8-TONER |
| Price: |
$ 16.47 |
|
|
|
 |

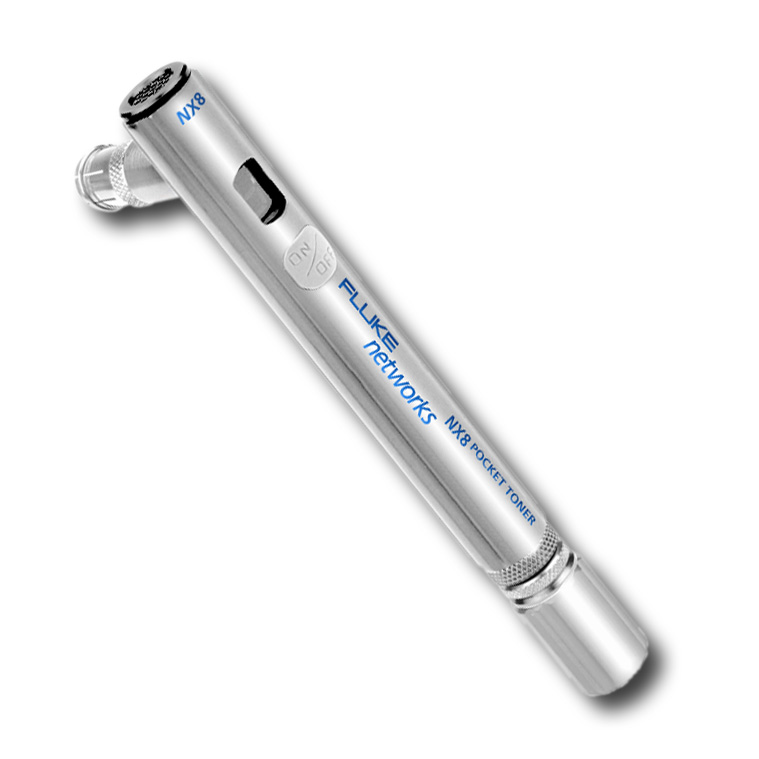

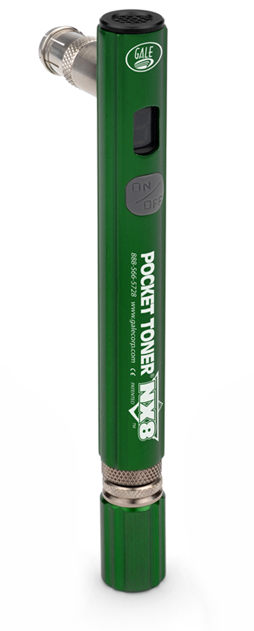

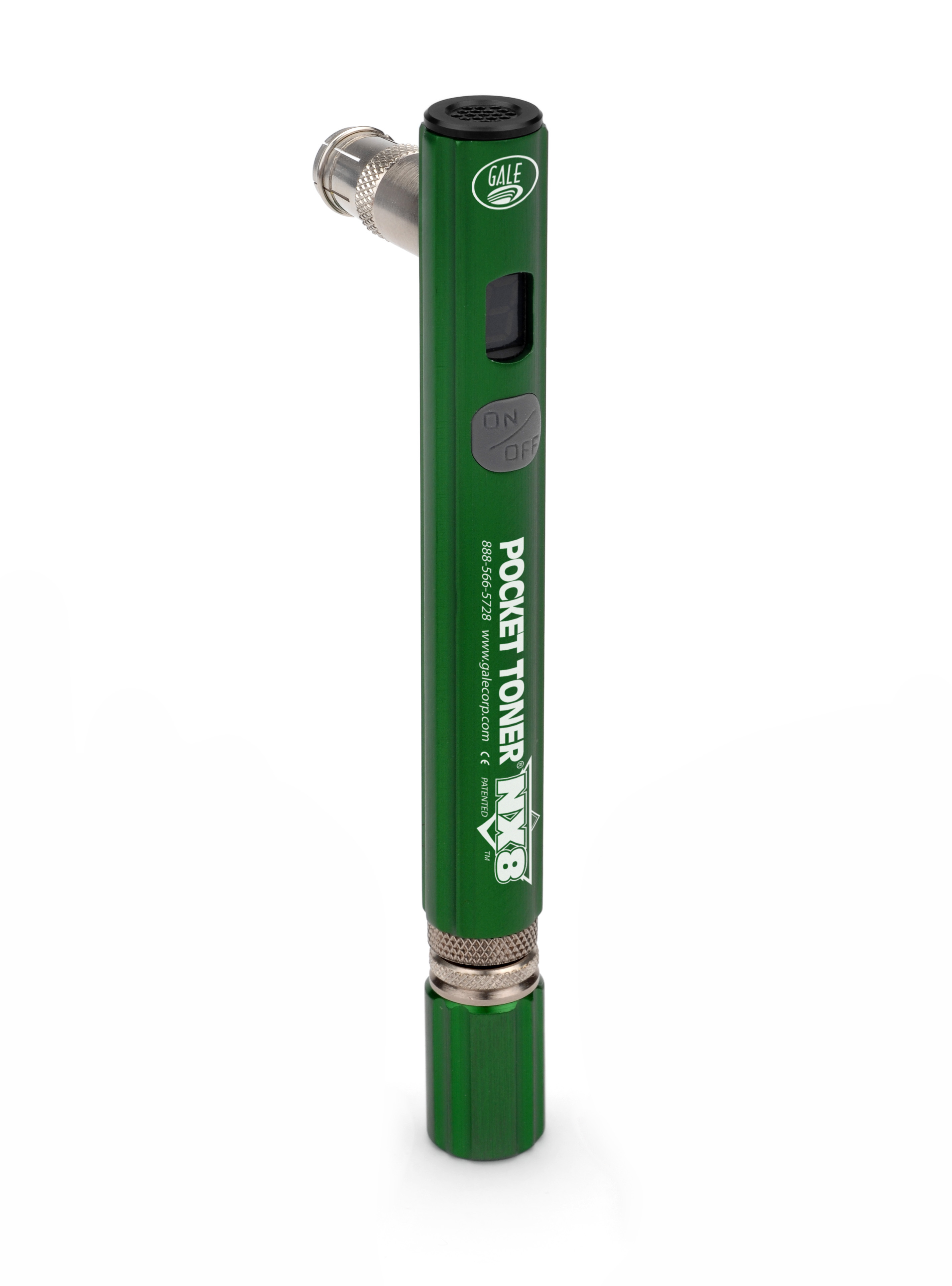

Pocket Toner® NX8 is sold only in kit form. However, if the main tool from a PTNX8 kit is lost or damaged it can be purchased here. This item includes the PTNX8 Main Unit, Toner Unit, Speed 81™ adapter, push-on f-type adapter, and AAA battery. This item does not include any ID caps. |
|
| Part Number: |
PTNX8-WO-ID |
| Price: |
$ 43.47 |
|
|
|
 |

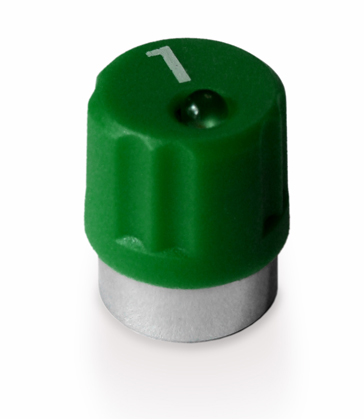

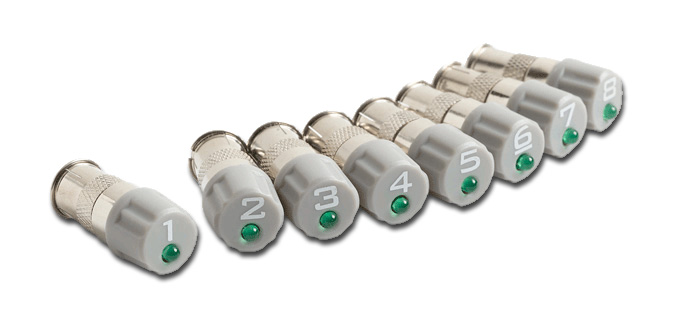

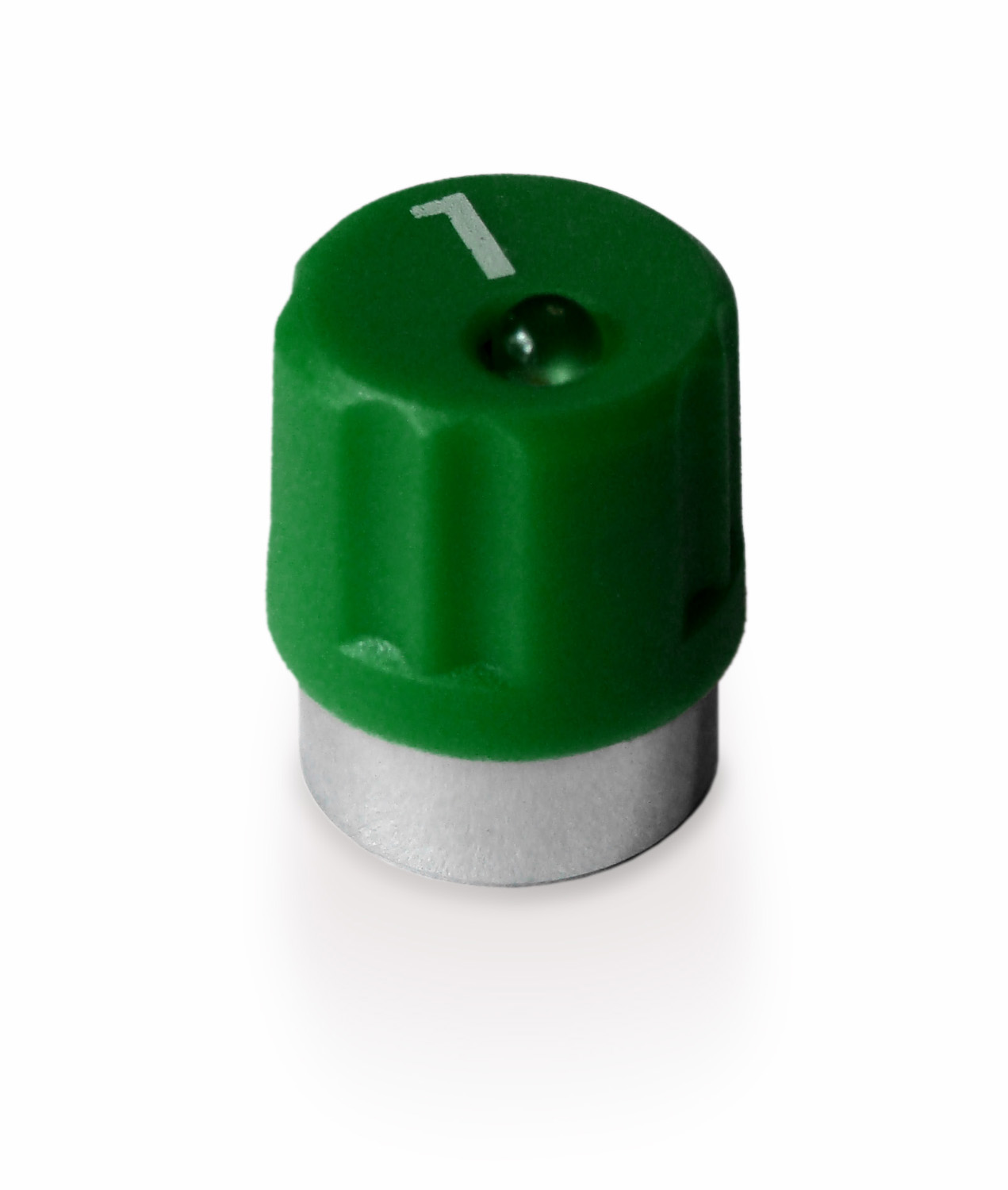

Gale Corporation’s proprietary f-male ID cap has voltage protection (6-48v) with an LED indicating the presence of voltage. These versatile ID caps can be used in conjunction with Pocket Toner® NX8 and any of Gale Corporation’s adapters to test up to 8 cables or wires at one time. This item is the ID cap #1. |
|
| Part Number: |
PTNX8-ID-1 |
| Price: |
$ 6.19 |
|
|
|
 |
Gale Corporation’s proprietary f-male ID cap has voltage protection (6-48v) with an LED indicating the presence of voltage. These versatile ID caps can be used in conjunction with Pocket Toner® NX8 and any of Gale Corporation’s adapters to test up to 8 cables or wires at one time. This item is the ID cap #2. |
|
| Part Number: |
PTNX8-ID-2 |
| Price: |
$ 6.19 |
|
|
|
 |
Gale Corporation’s proprietary f-male ID cap has voltage protection (6-48v) with an LED indicating the presence of voltage. These versatile ID caps can be used in conjunction with Pocket Toner® NX8 and any of Gale Corporation’s adapters to test up to 8 cables or wires at one time. This item is the ID cap #3. |
|
| Part Number: |
PTNX8-ID-3 |
| Price: |
$ 6.19 |
|
|
|
 |
Gale Corporation’s proprietary f-male ID cap has voltage protection (6-48v) with an LED indicating the presence of voltage. These versatile ID caps can be used in conjunction with Pocket Toner® NX8 and any of Gale Corporation’s adapters to test up to 8 cables or wires at one time. This item is the ID cap #4. |
|
| Part Number: |
PTNX8-ID-4 |
| Price: |
$ 6.19 |
|
|
|
 |
Gale Corporation’s proprietary f-male ID cap has voltage protection (6-48v) with an LED indicating the presence of voltage. These versatile ID caps can be used in conjunction with Pocket Toner® NX8 and any of Gale Corporation’s adapters to test up to 8 cables or wires at one time. This item is the ID cap #5. |
|
| Part Number: |
PTNX8-ID-5 |
| Price: |
$ 6.19 |
|
|
|
 |
Gale Corporation’s proprietary f-male ID cap has voltage protection (6-48v) with an LED indicating the presence of voltage. These versatile ID caps can be used in conjunction with Pocket Toner® NX8 and any of Gale Corporation’s adapters to test up to 8 cables or wires at one time. This item is the ID cap #6. |
|
| Part Number: |
PTNX8-ID-6 |
| Price: |
$ 6.19 |
|
|
|
 |

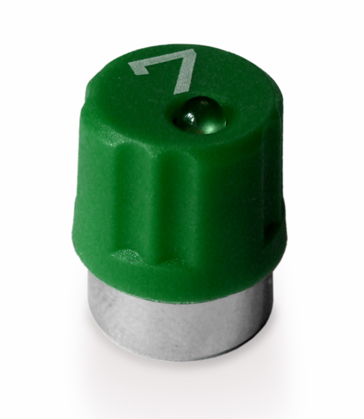

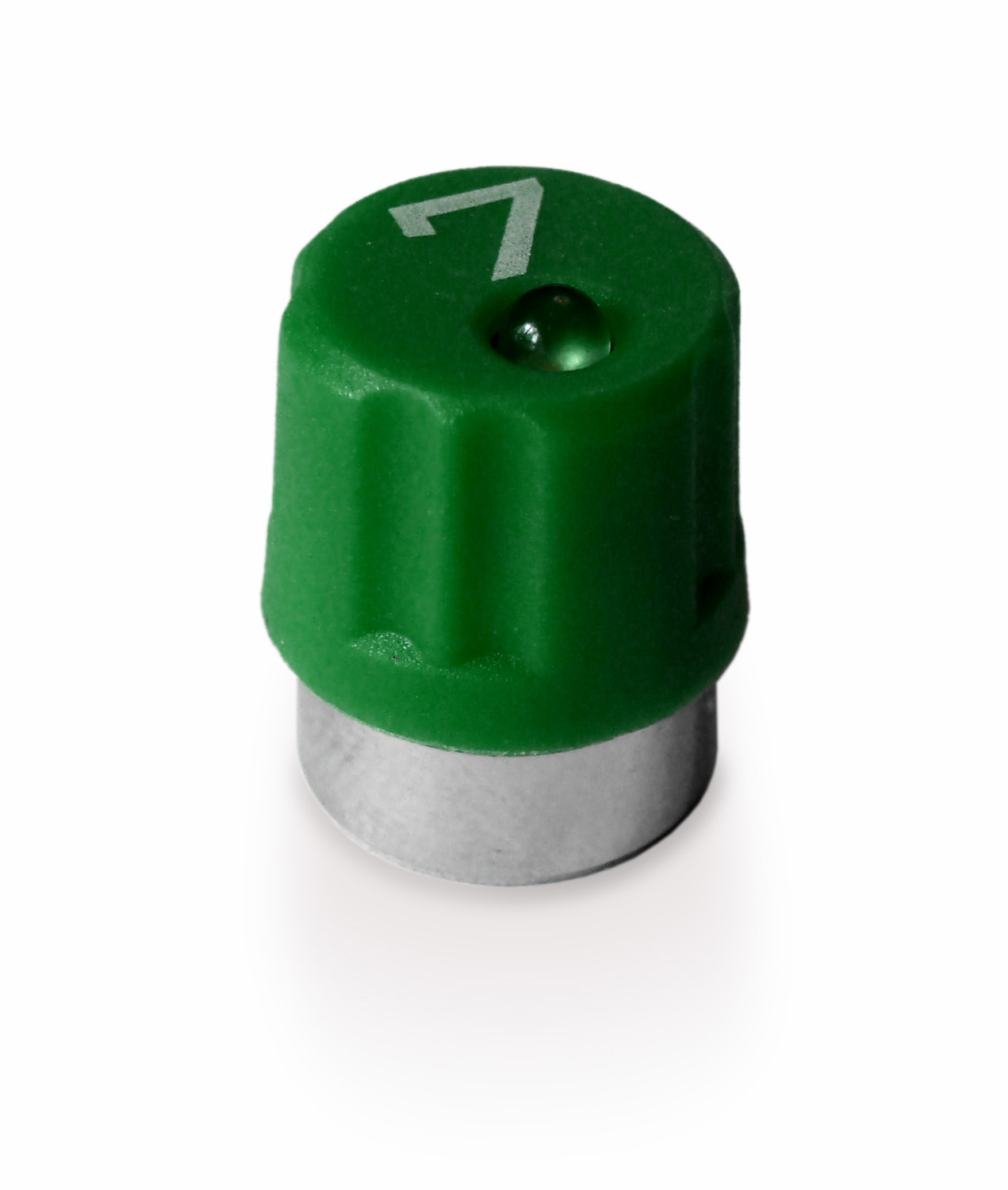

Gale Corporation’s proprietary f-male ID cap has voltage protection (6-48v) with an LED indicating the presence of voltage. These versatile ID caps can be used in conjunction with Pocket Toner® NX8 and any of Gale Corporation’s adapters to test up to 8 cables or wires at one time. This item is the ID cap #7. |
|
| Part Number: |
PTNX8-ID-7 |
| Price: |
$ 6.19 |
|
|
|
 |
Gale Corporation’s proprietary f-male ID cap has voltage protection (6-48v) with an LED indicating the presence of voltage. These versatile ID caps can be used in conjunction with Pocket Toner® NX8 and any of Gale Corporation’s adapters to test up to 8 cables or wires at one time. This item is the ID cap #8. |
|
| Part Number: |
PTNX8-ID-8 |
| Price: |
$ 6.19 |
|
|
|
 |

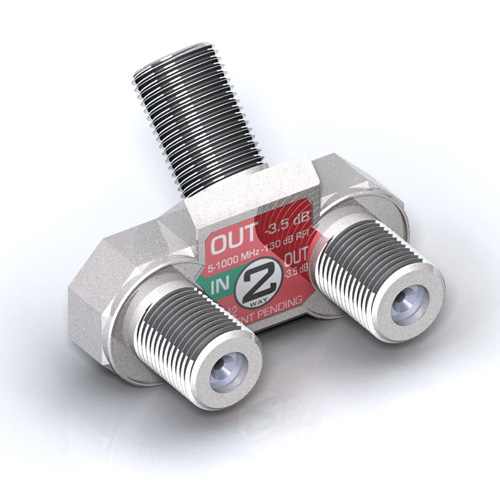

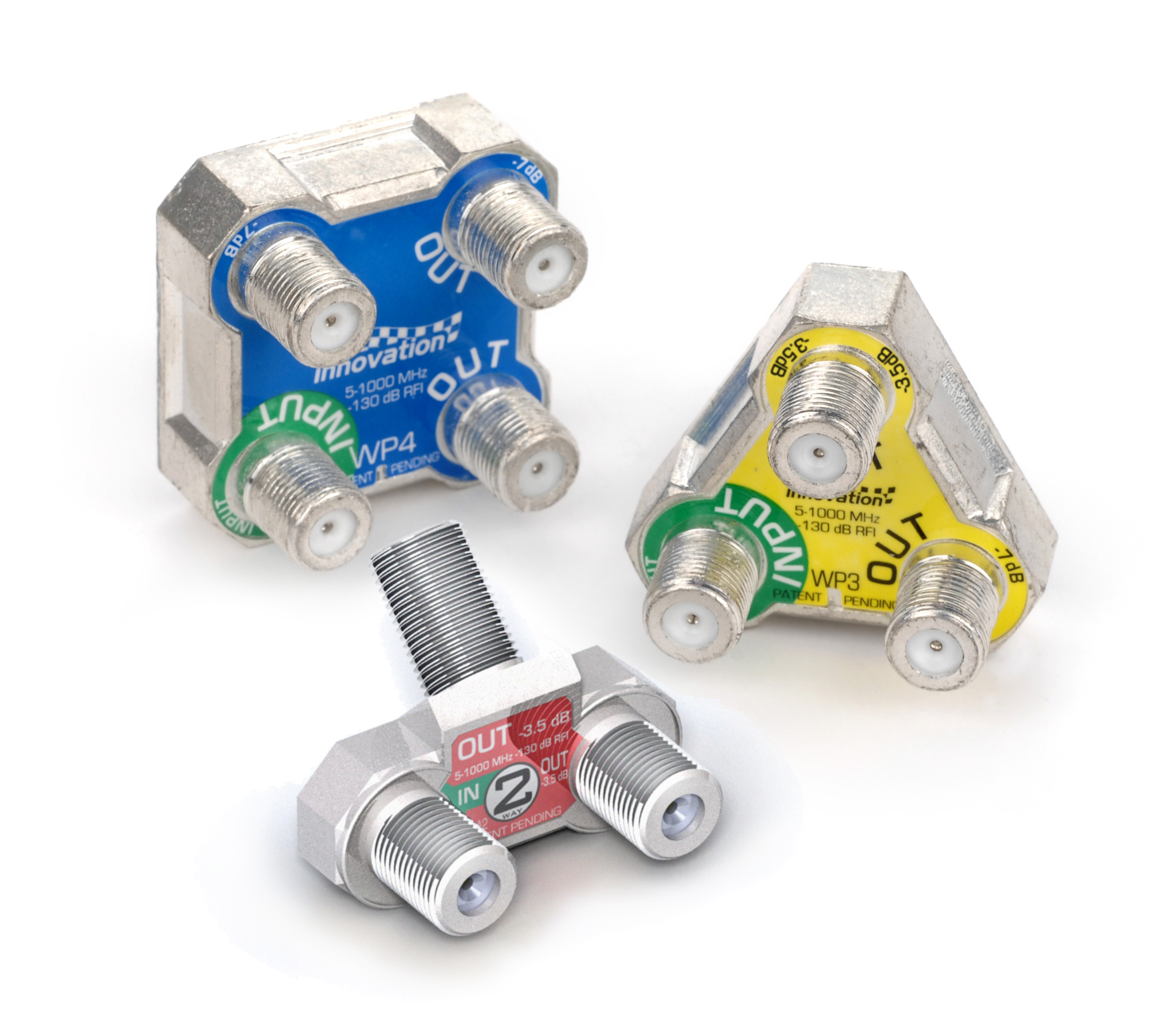

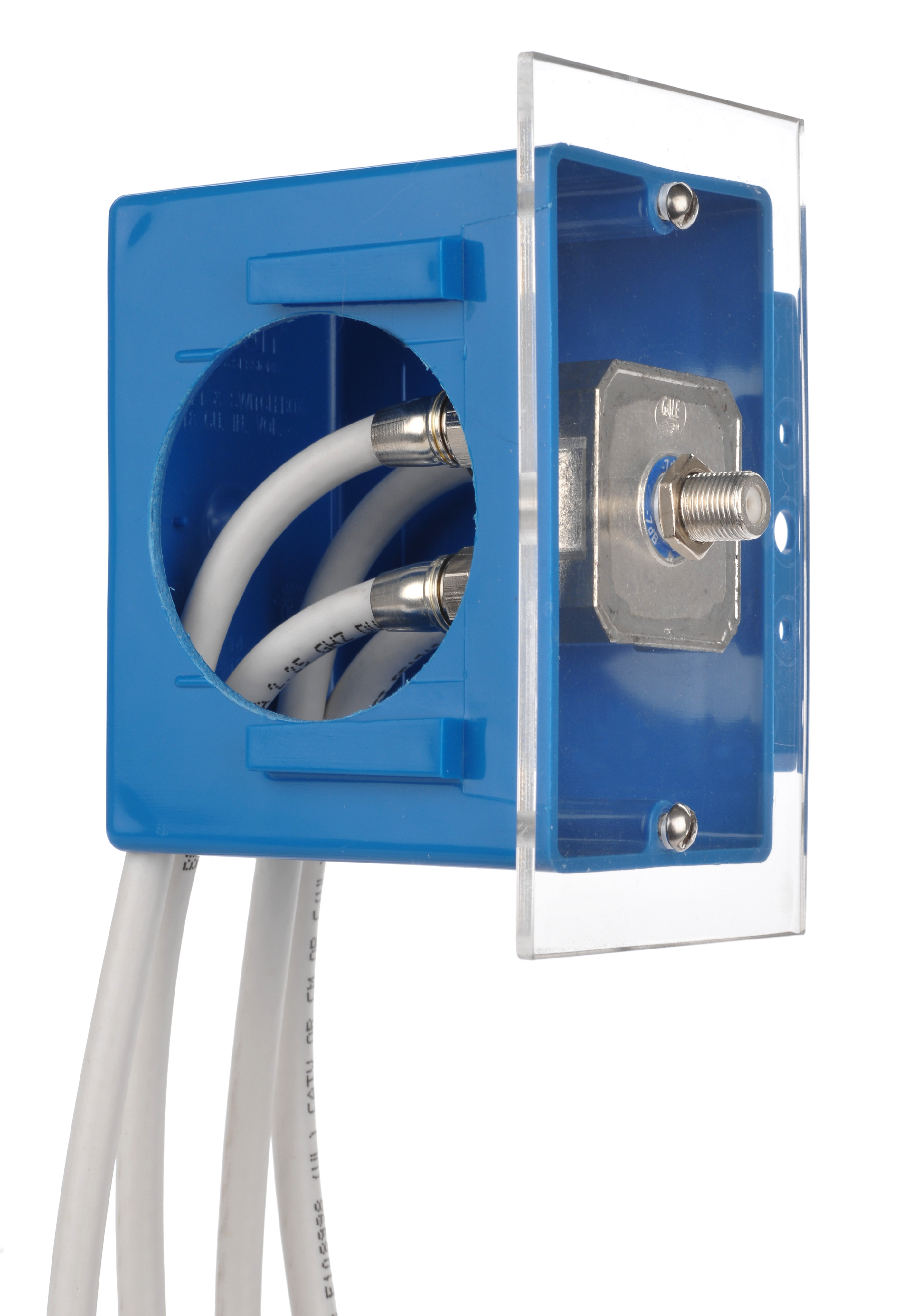

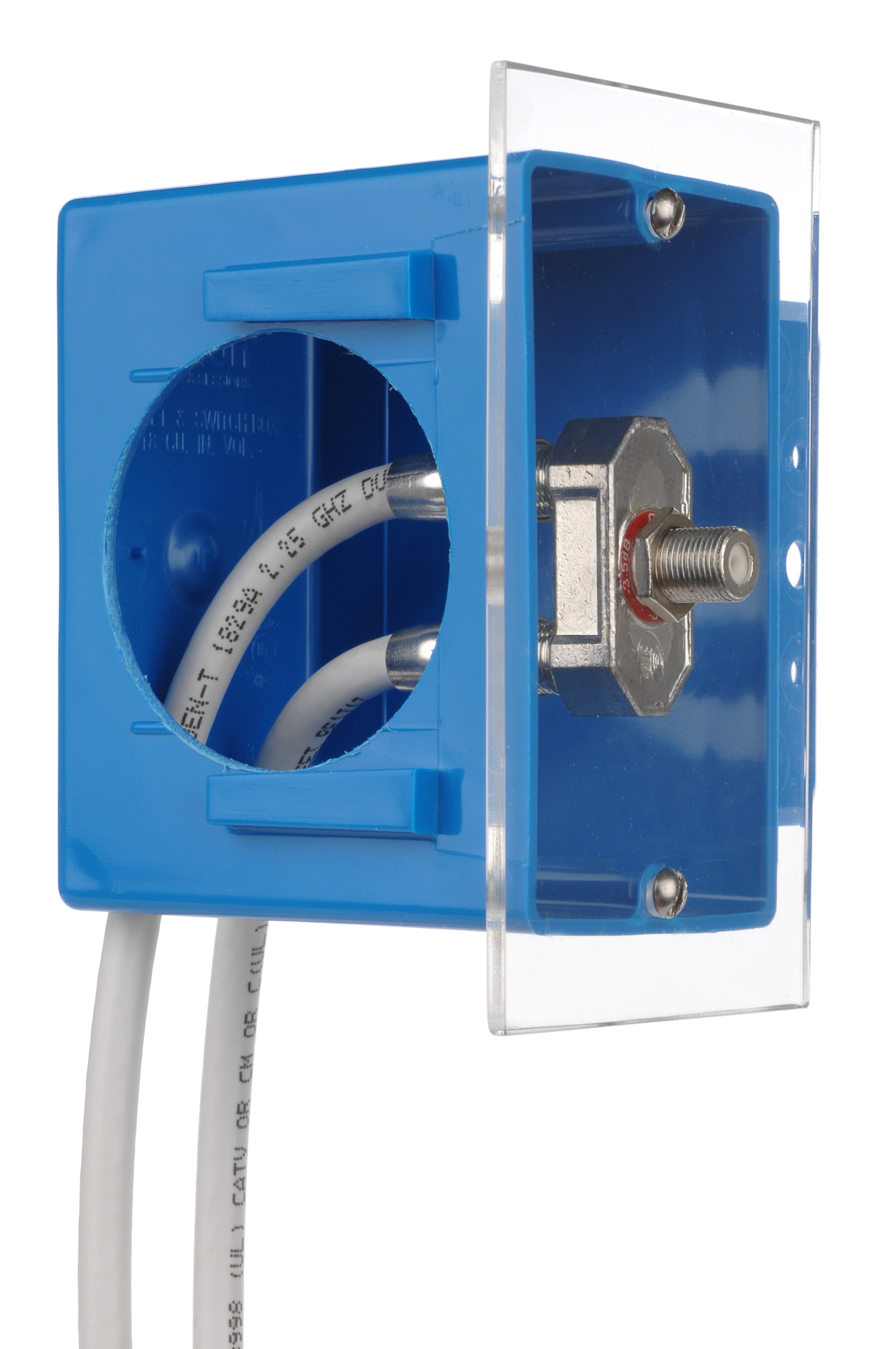

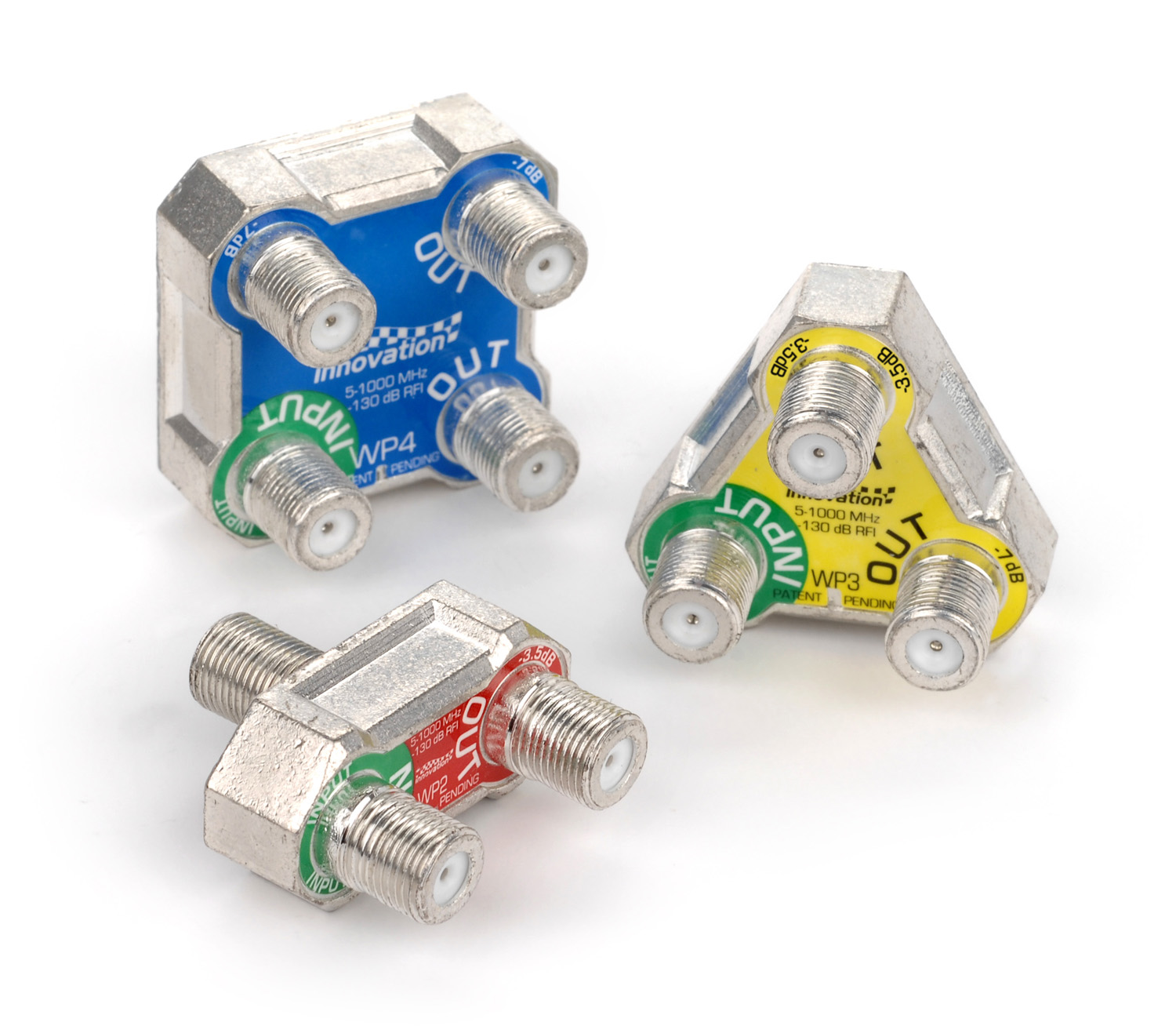

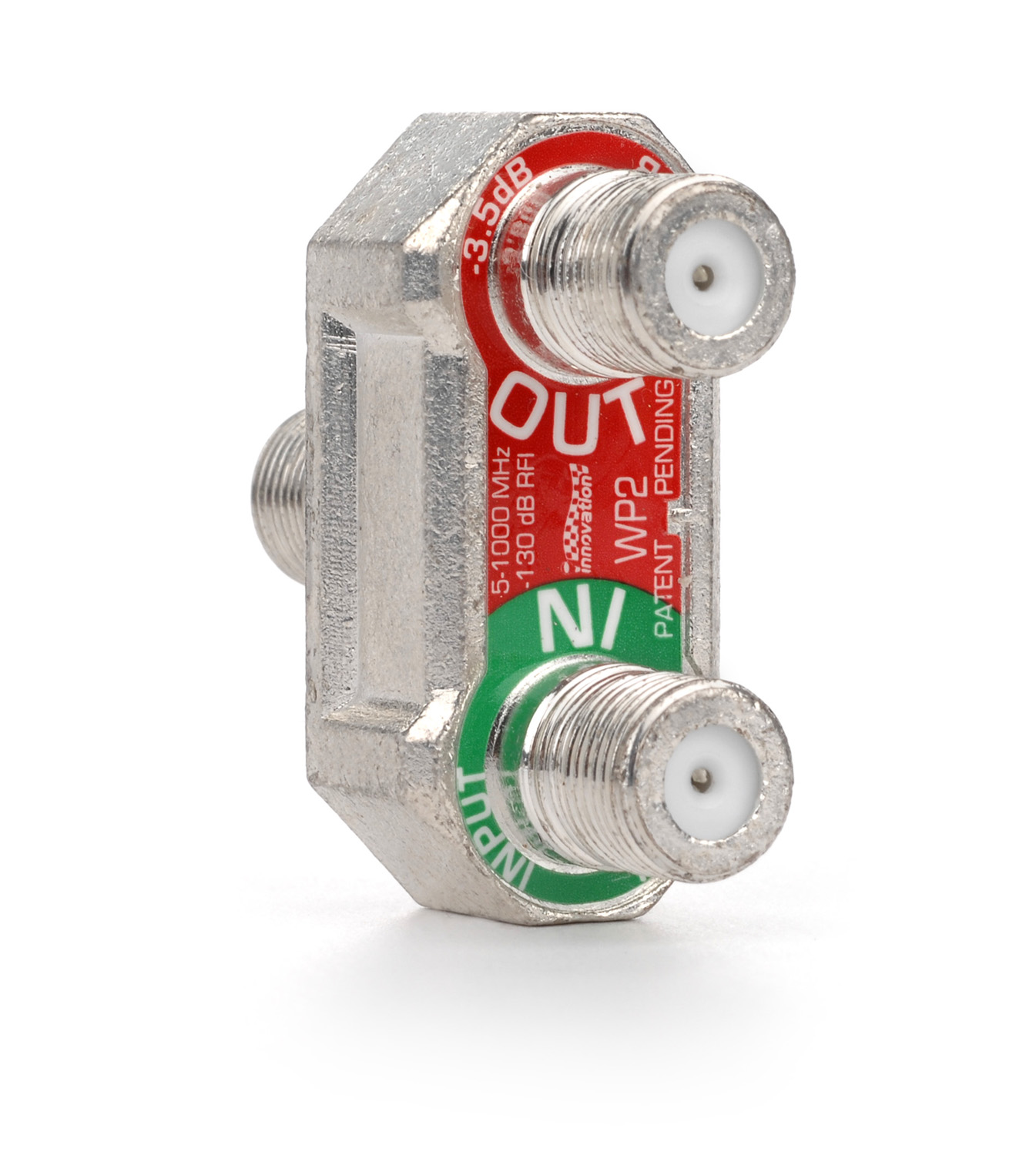

Gale Corporation’s patented high performance wall plate splitter is designed to fit conveniently in a single wall box with one input and two outputs. Note the single output port on the back of the splitter that attaches to a wall plate. |
|
| Part Number: |
WP2 |
| Price: |
$ 3.29 |
|
|
|
 |

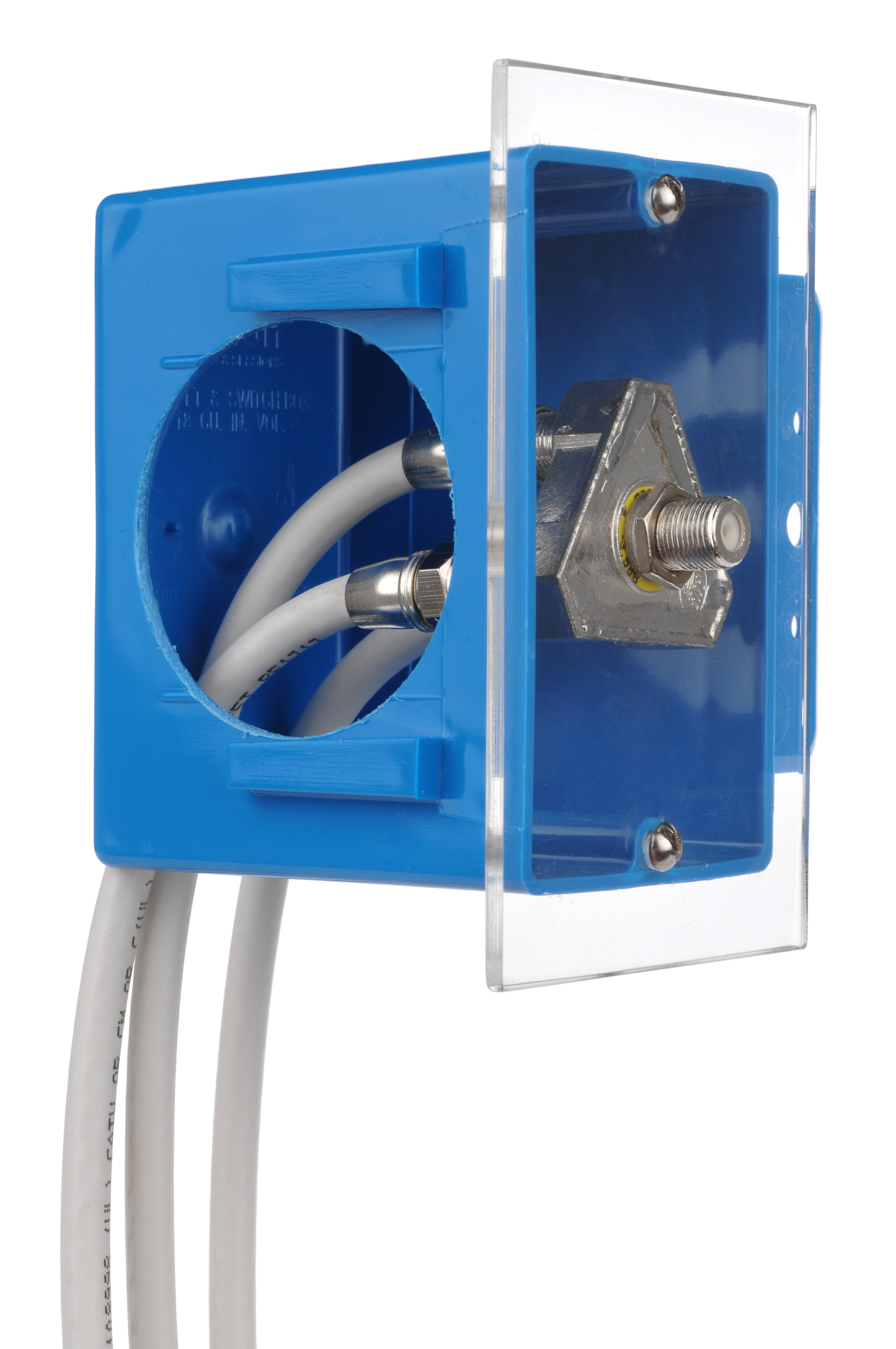

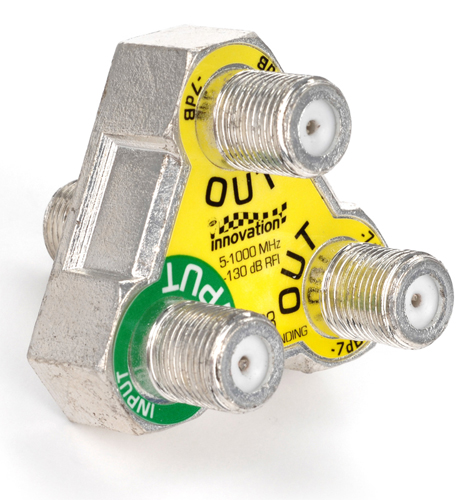

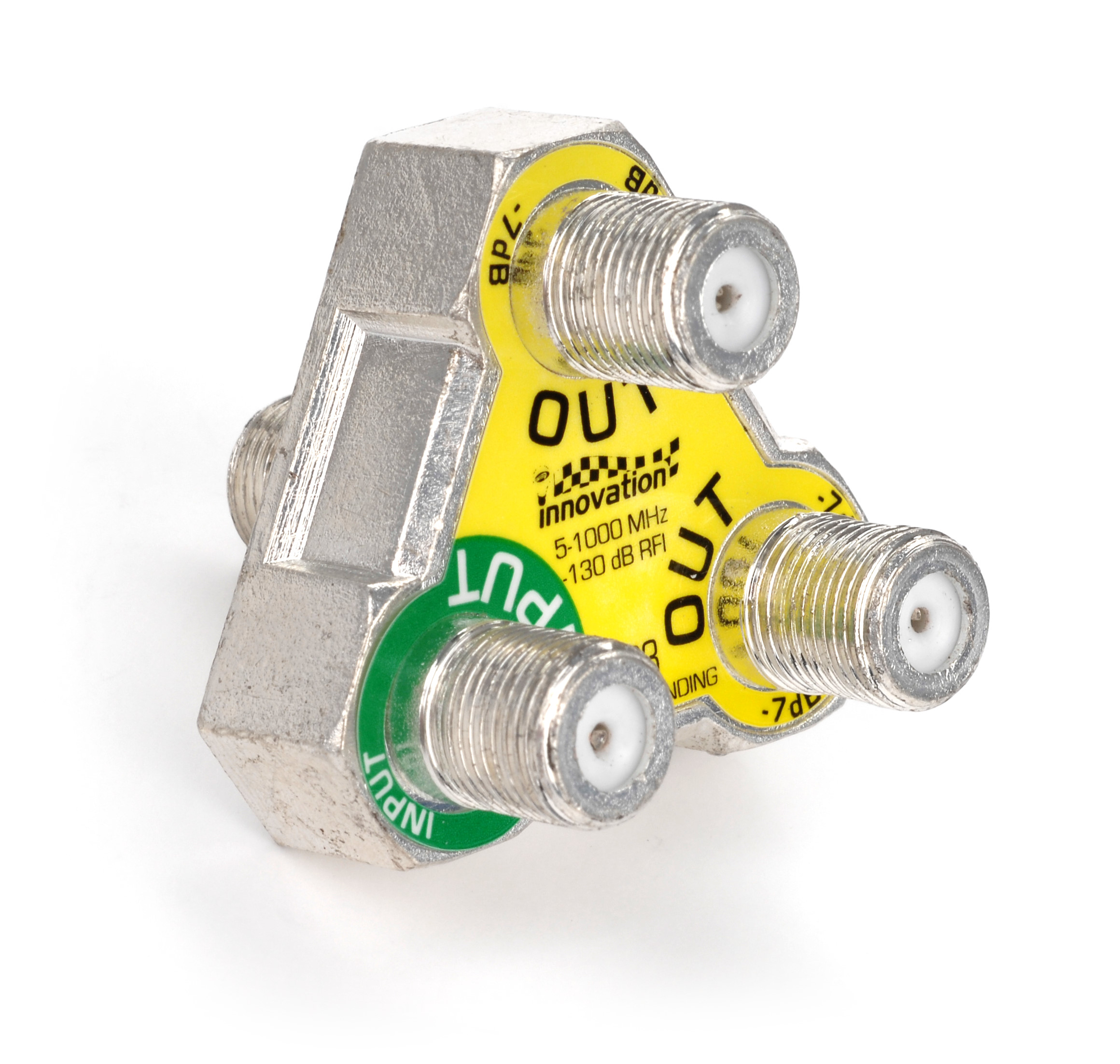

Gale Corporation’s patented high performance wall plate splitter is designed to conveniently fit in a single wall box with one input and three outputs. Note the single output port on the back of the splitter that attaches to a wall plate. |
|
| Part Number: |
WP3 |
| Price: |
$ 4.49 |
|
|
|
 |

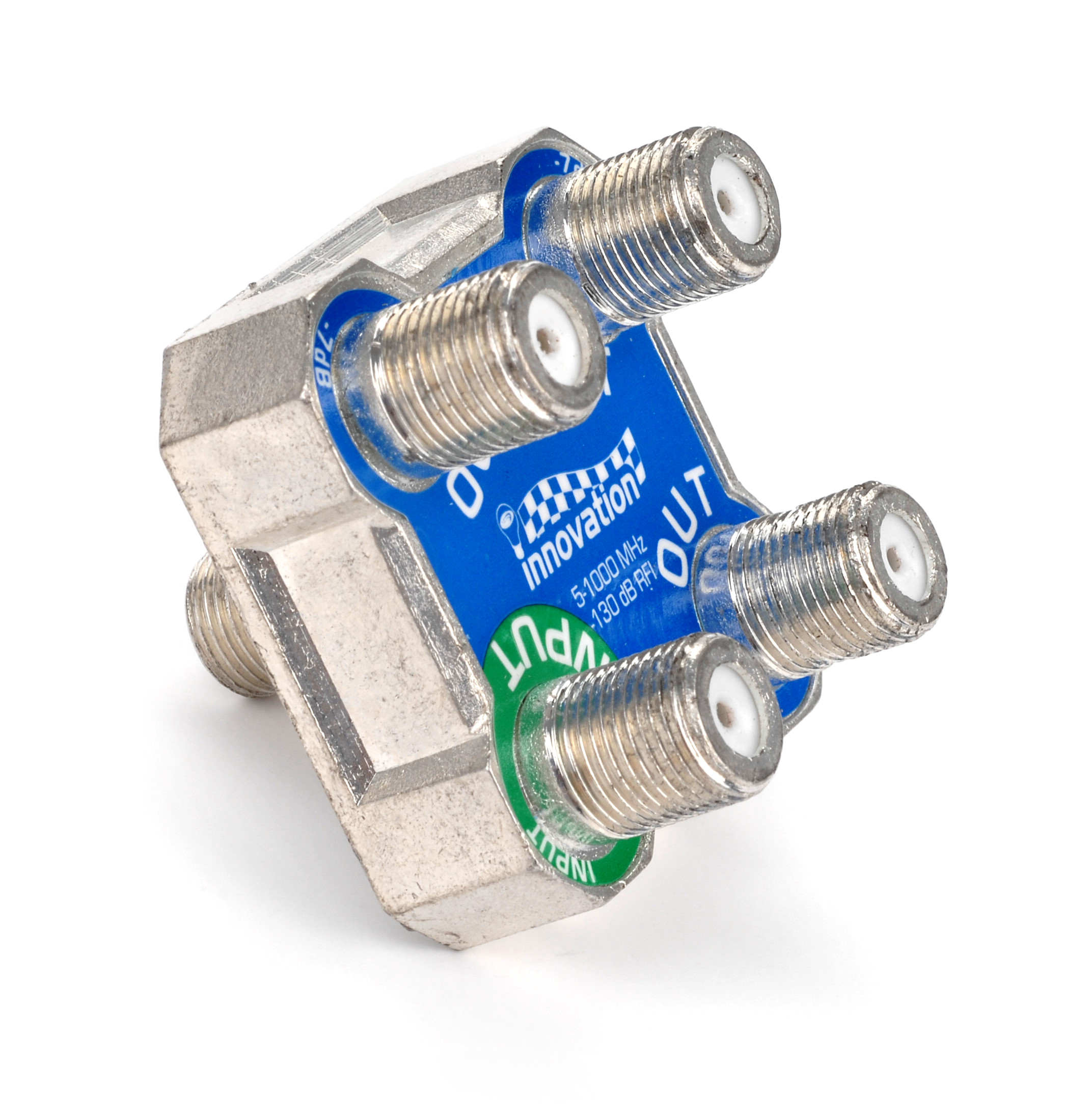

Gale Corporation’s patented high performance wall plate splitter is designed to conveniently fit in a single wall box with one input and four outputs. Note the single output port on the back of the splitter that attaches to a wall plate |
|
| Part Number: |
WP4 |
| Price: |
$ 5.29 |
|
|
|
 |

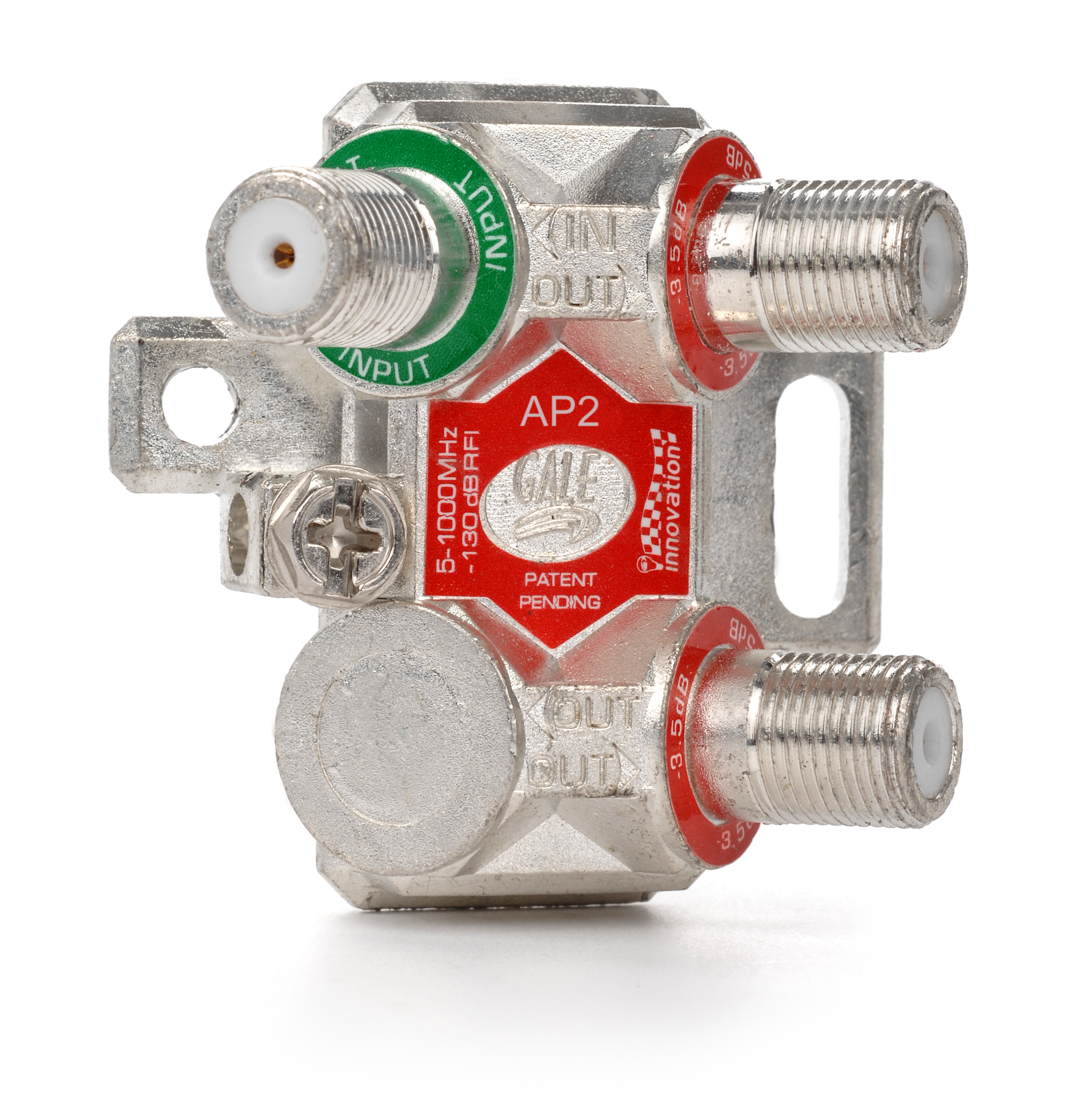

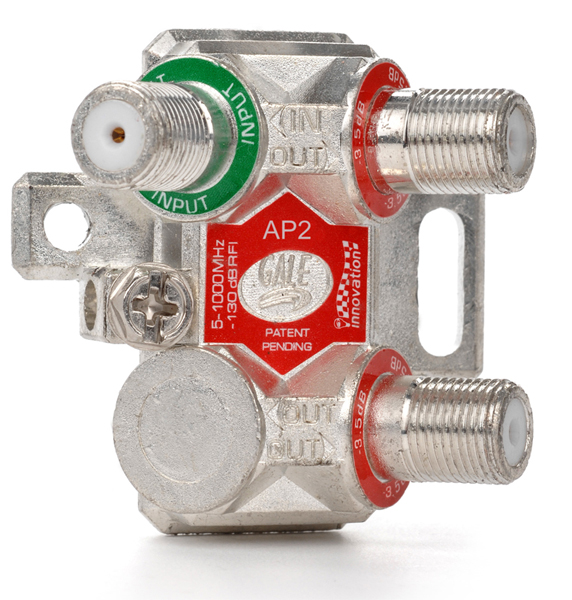

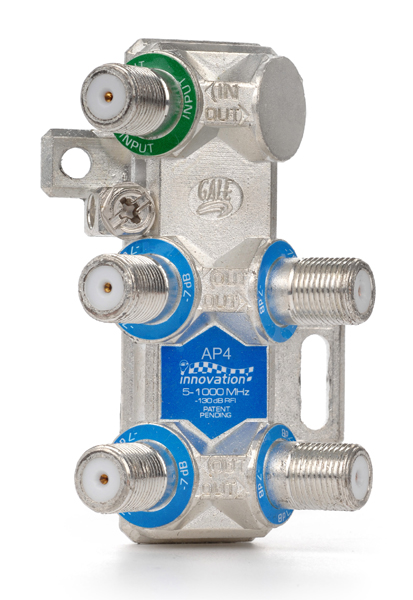

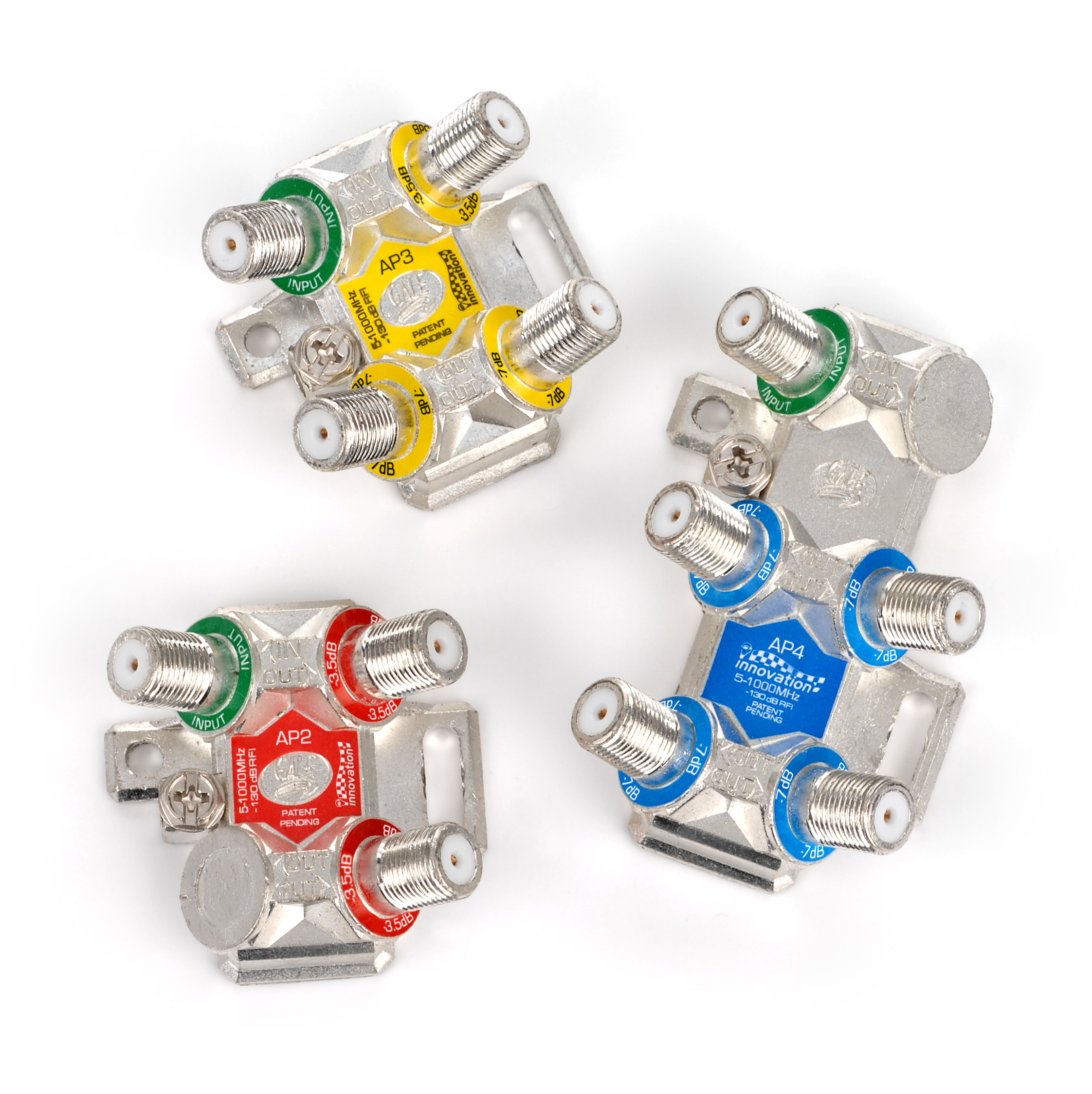

Gale Corporation’s patented high performance angle port splitters are the most installer friendly splitters on the market; designed for easy port access. Fully SCTE compliant with 1" port spacing, anti-corrosive nickel plated zinc housings, soldered back plate, integrated ground block and mounting brackets, round center pin siezures, in/out port labels molded into case, unique color-coded port labeling system, and unequaled specifications from 5-1000 MHz. |
|
| Part Number: |
AP2 |
| Price: |
$ 3.29 |
|
|
|
 |

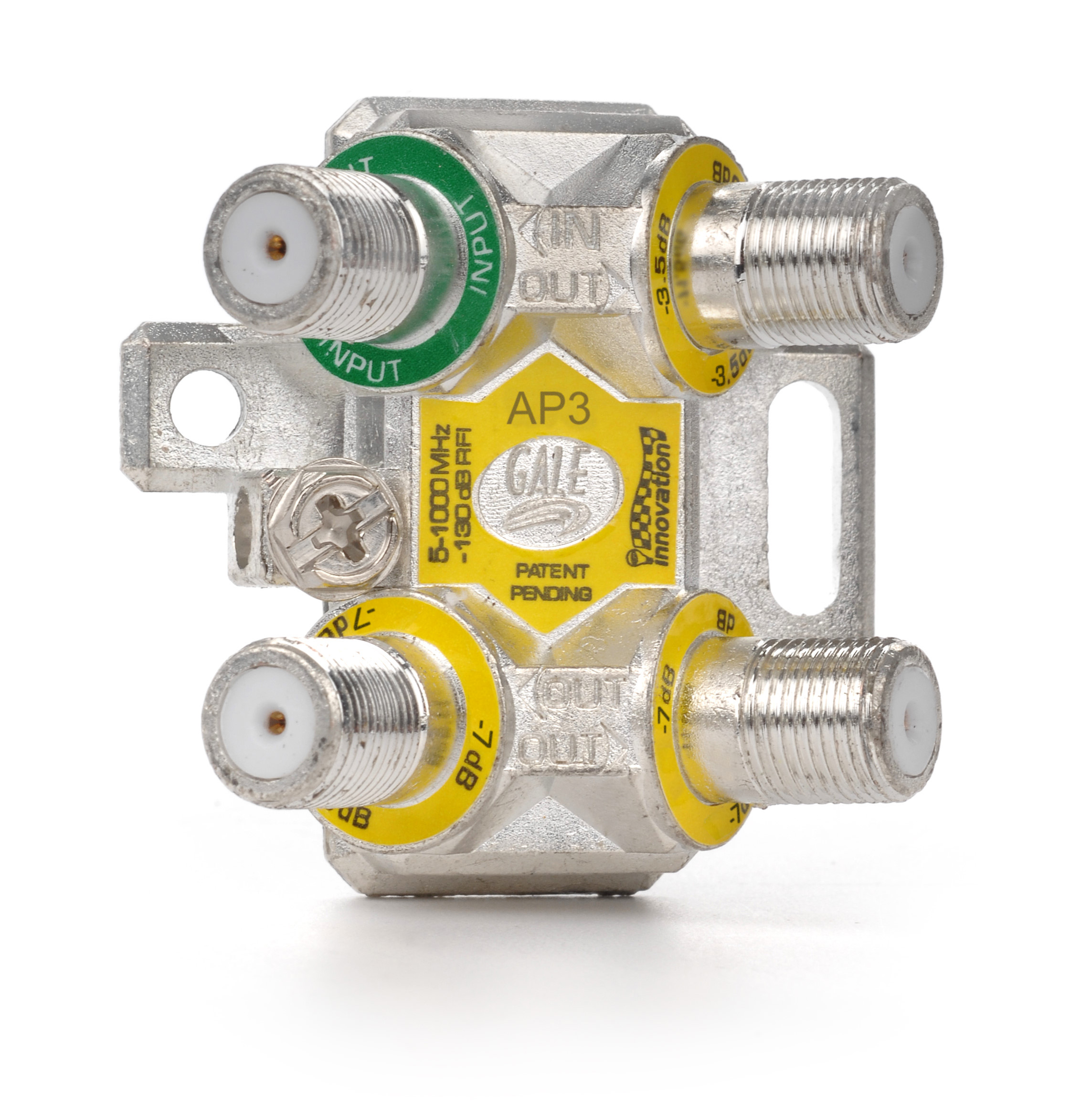

Gale Corporation’s patented high performance angle port splitters are the most installer friendly splitters on the market; designed for easy port access. Fully SCTE compliant with 1" port spacing, anti-corrosive nickel plated zinc housings, soldered back plate, integrated ground block and mounting brackets, round center pin siezures, in/out port labels molded into case, unique color-coded port labeling system, and unequaled specifications from 5-1000 MHz. |
|
| Part Number: |
AP3 |
| Price: |
$ 4.49 |
|
|
|
 |

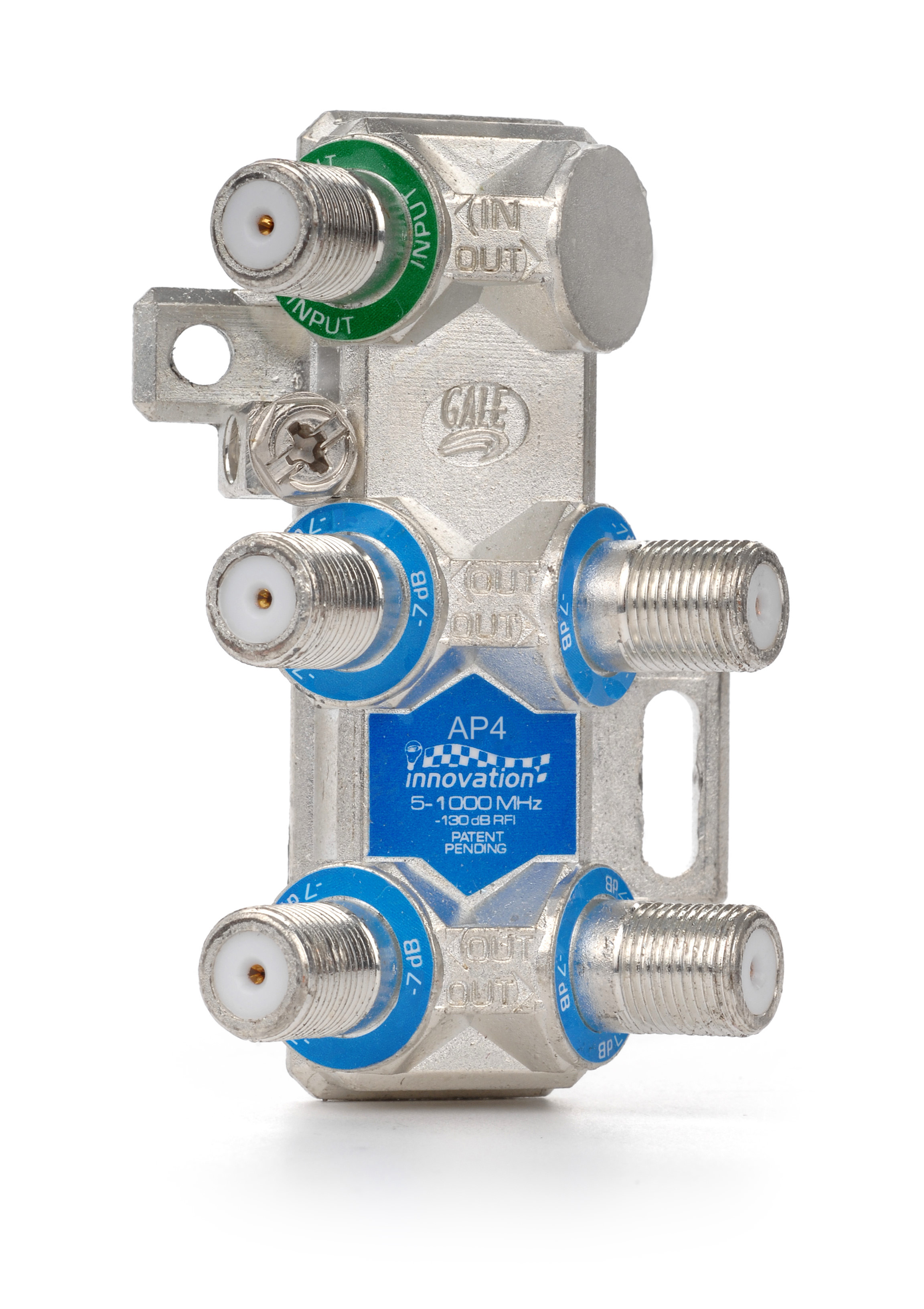

Gale Corporation’s patented high performance angle port splitters are the most installer friendly splitters on the market; designed for easy port access. Fully SCTE compliant with 1" port spacing, anti-corrosive nickel plated zinc housings, soldered back plate, integrated ground block and mounting brackets, round center pin siezures, in/out port labels molded into case, unique color-coded port labeling system, and unequaled specifications from 5-1000 MHz. |
|
| Part Number: |
AP4 |
| Price: |
$ 5.29 |
|
|
|
 |

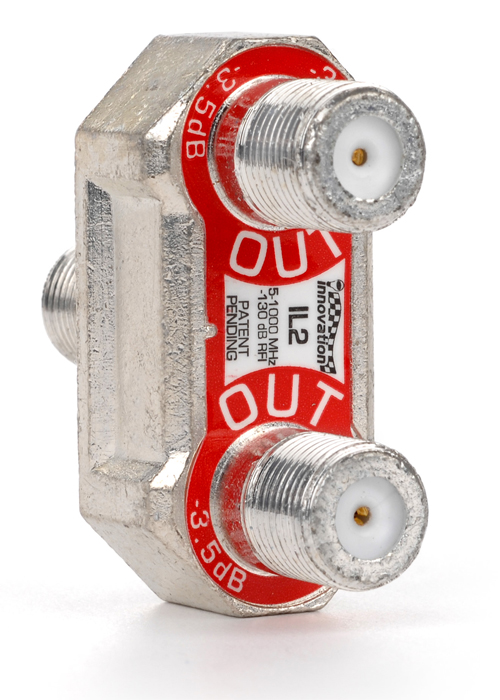

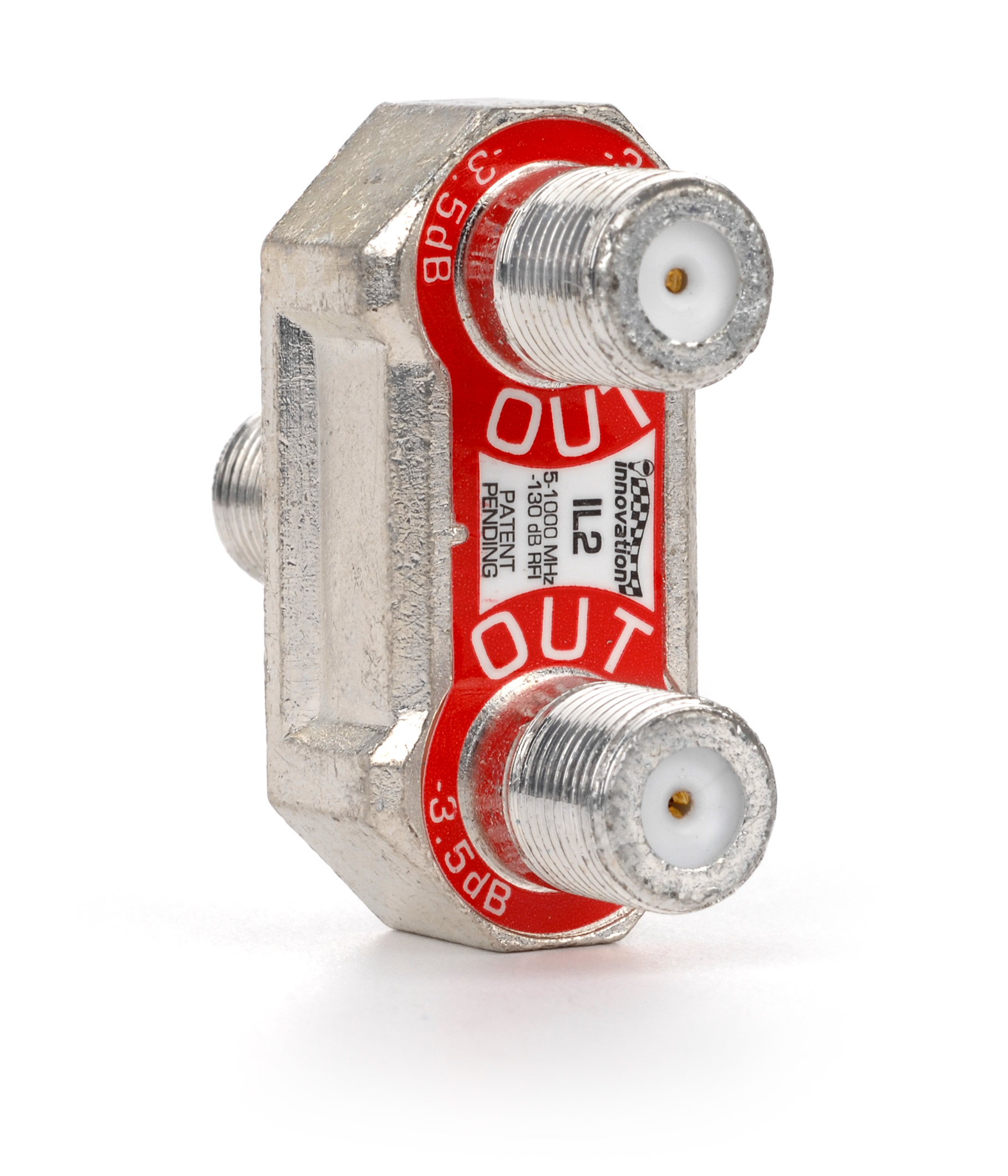

Gale Corporation’s patented high performance inline splitter is designed to be used where space and cable length is limited. |
|
| Part Number: |
IL2 |
| Price: |
$ 3.59 |
|
|
|
 |

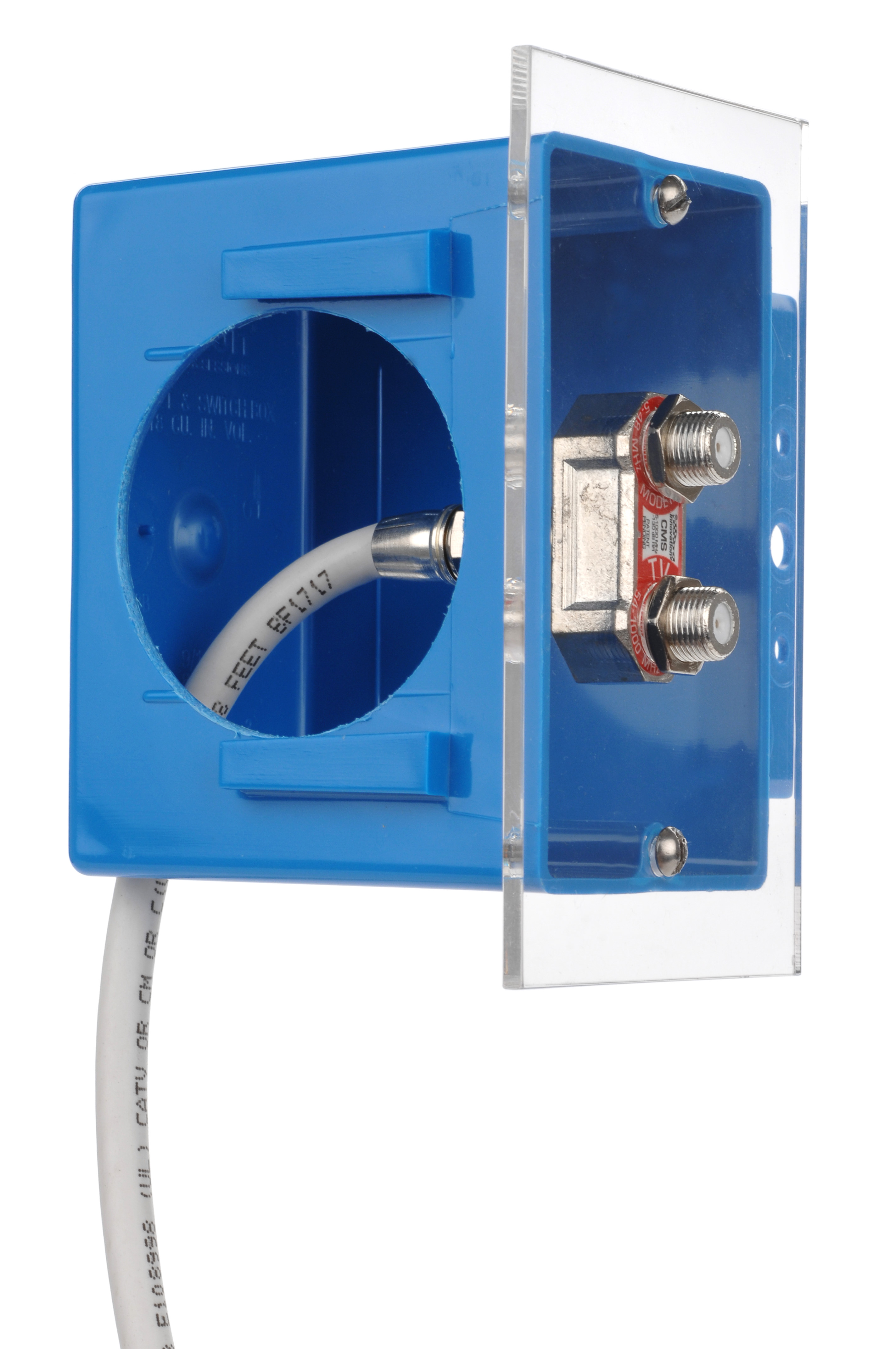

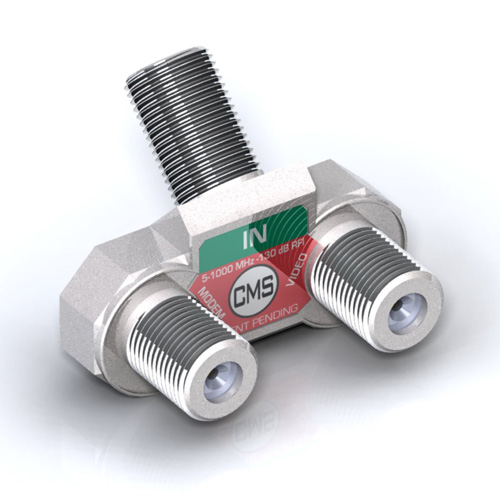

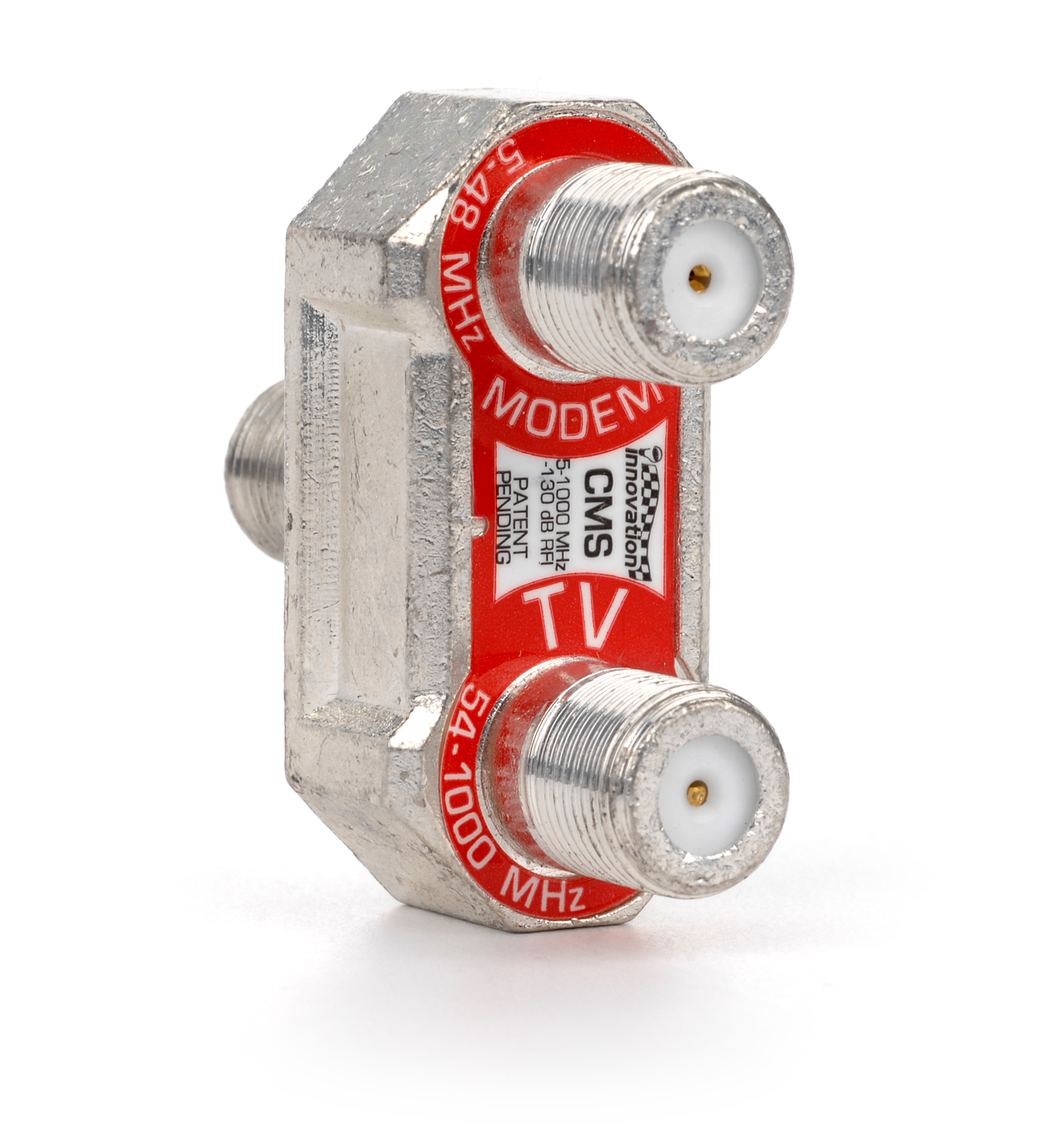

Gale Corporation’s patented high performance cable modem splitter is designed specifically for installations that require a CATV cable split to service a TV and a cable modem in the same jack location with superior forward and return loses. |
|
| Part Number: |
CMS |
| Price: |
$ 6.99 |
|
|
|
 |

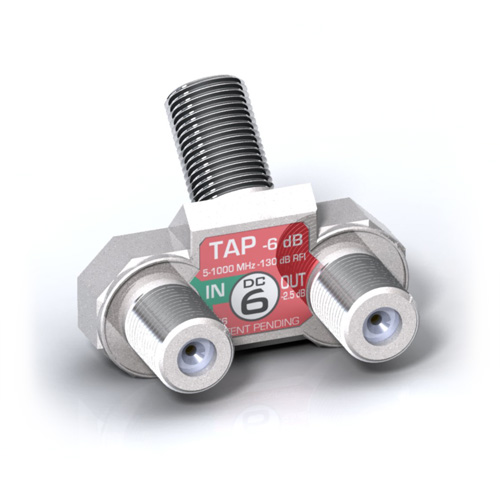

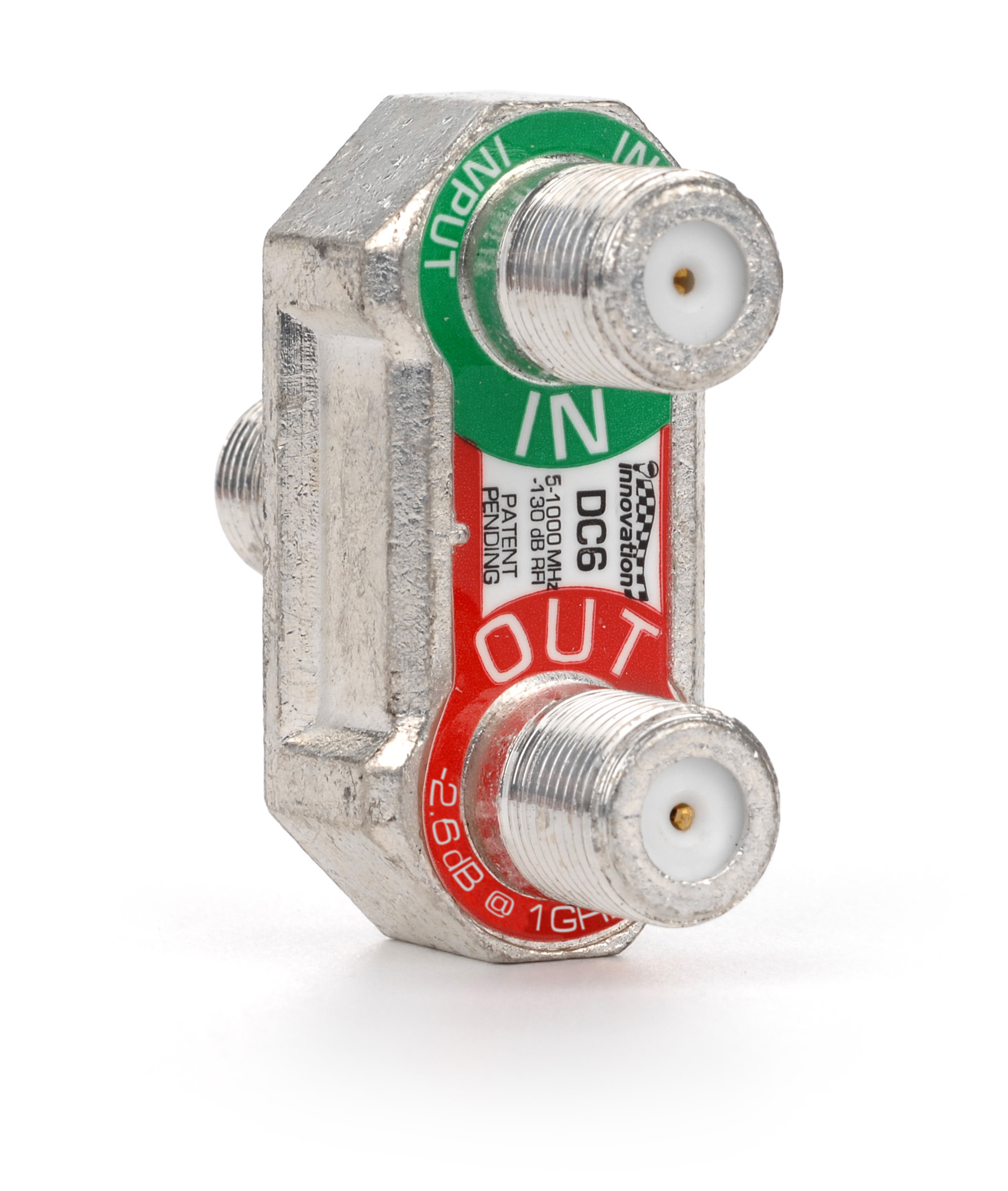

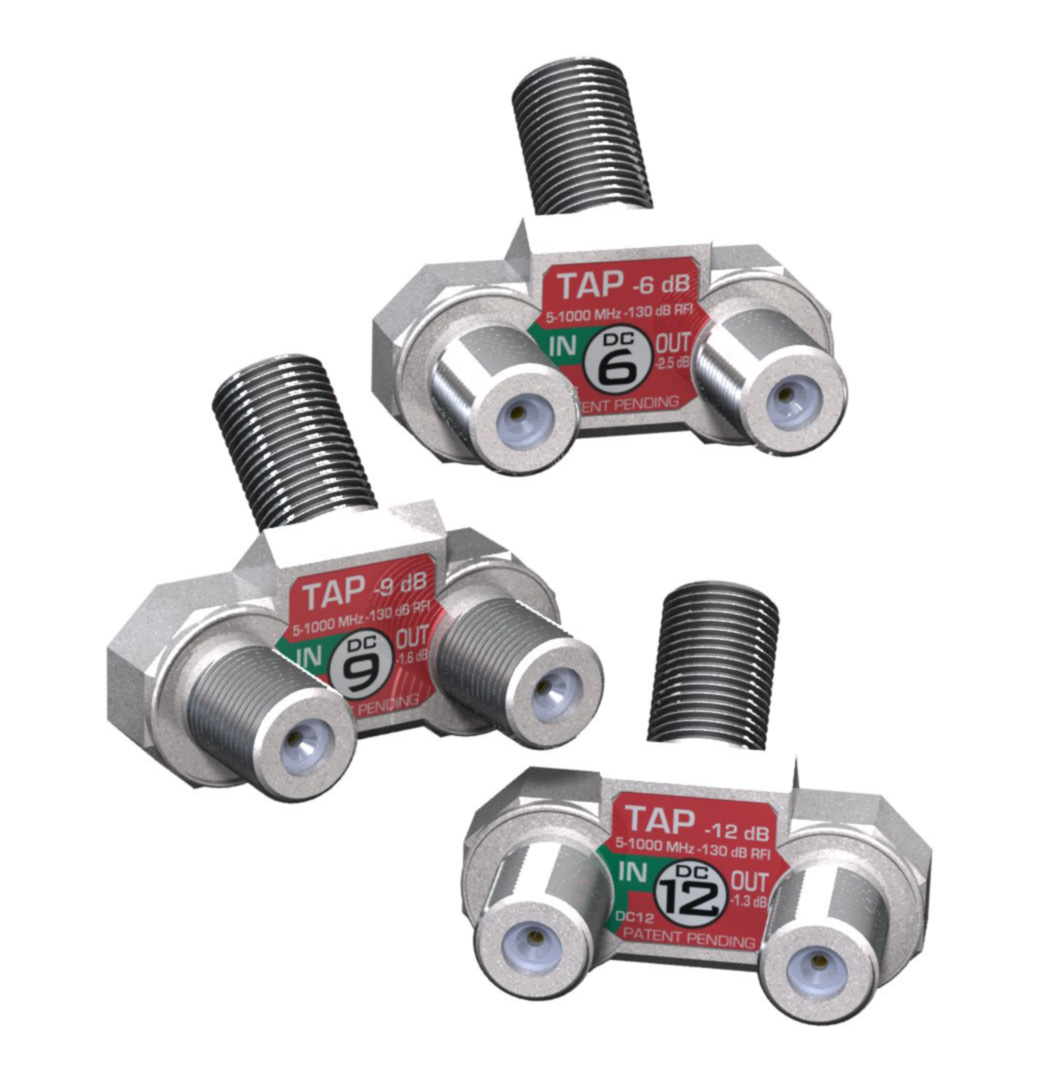

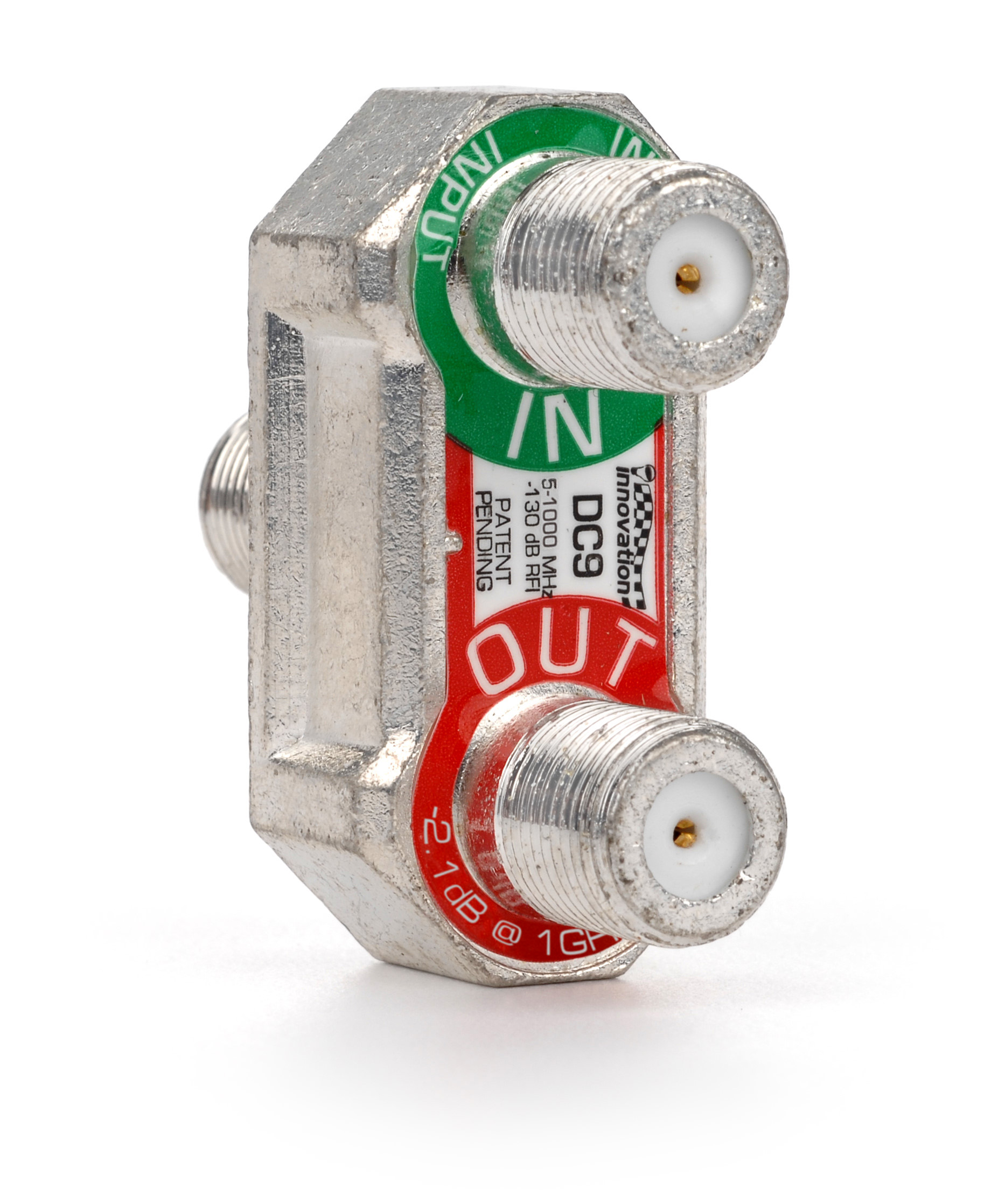

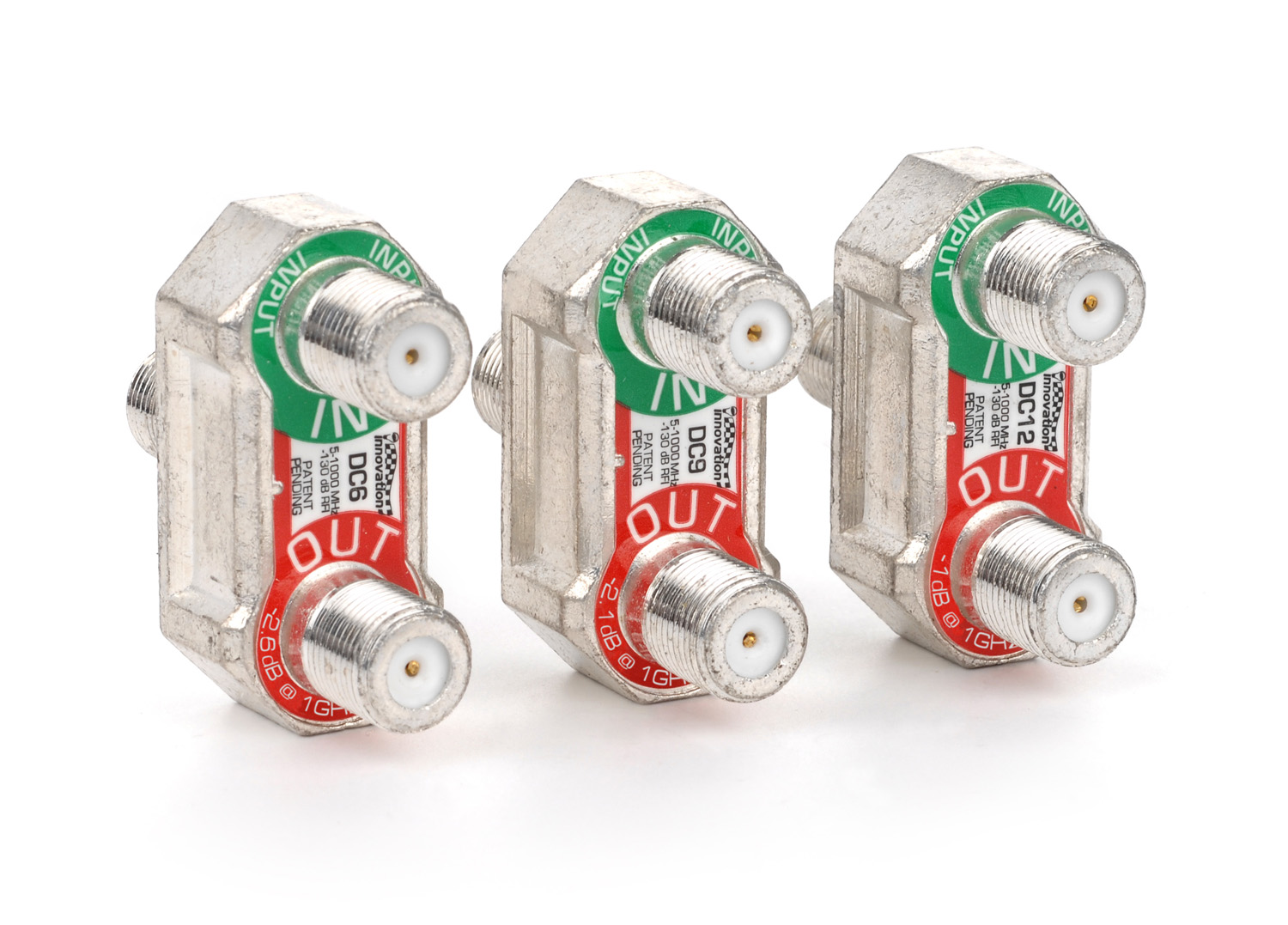

Gale Corporation’s patented high performance slim line wall plate mountable directional couplers are super compact and are able to be used in the most space restrictive wall jacks. This DC has a -6 db tap-port with an in-port and an out-port. |
|
| Part Number: |
DC6 |
| Price: |
$ 3.69 |
|
|
|
 |
Gale Corporation’s patented high performance slim line wall plate mountable directional couplers are super compact and are able to be used in the most space restrictive wall jacks. This DC has a -9 db tap-port with an in-port and an out-port. |
|
| Part Number: |
DC9 |
| Price: |
$ 3.69 |
|
|
|
 |
Gale Corporation’s patented high performance slim line wall plate mountable directional couplers are super compact and are able to be used in the most space restrictive wall jacks. This DC has a -12 db tap-port with an in-port and an out-port. |
|
| Part Number: |

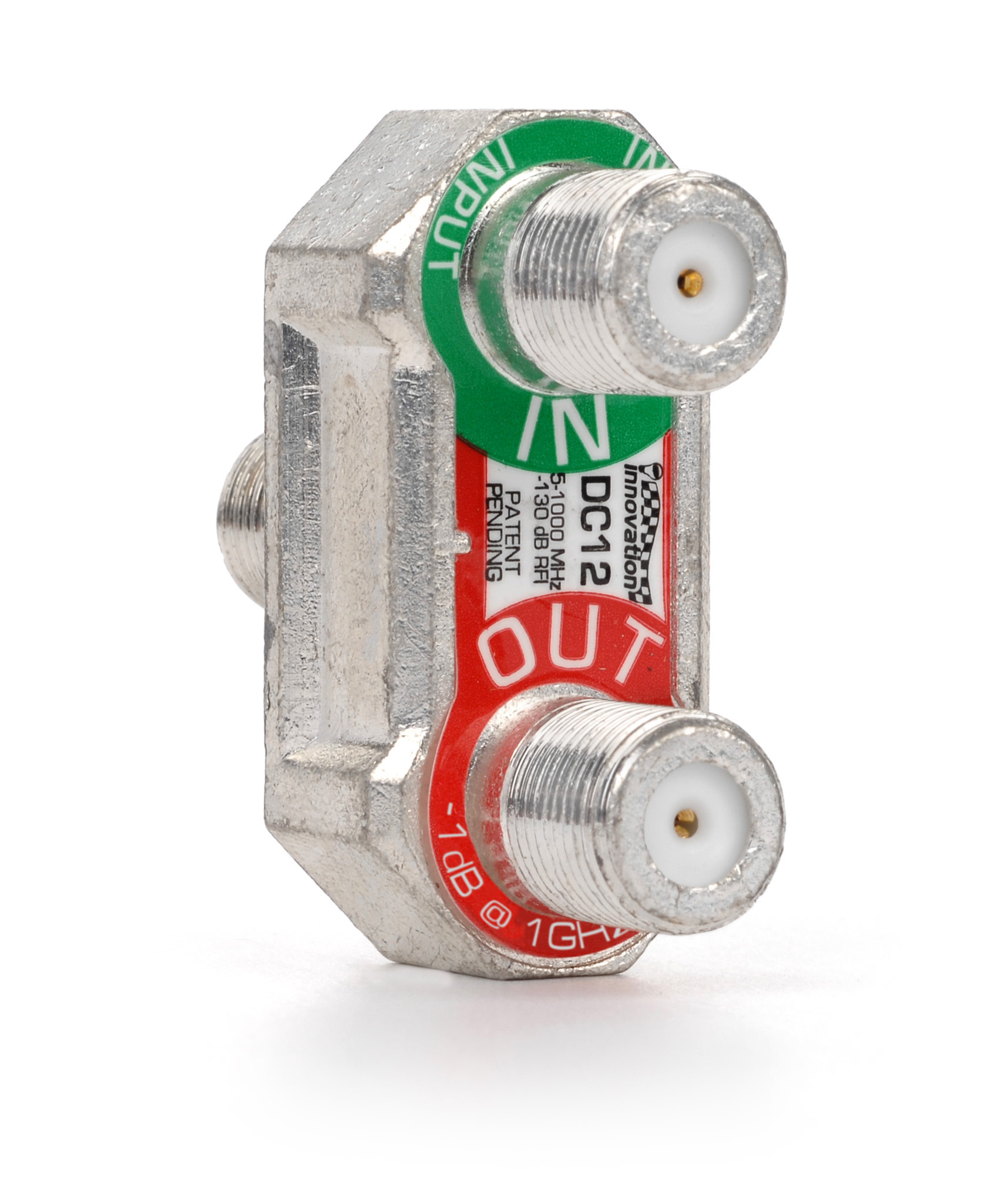

DC12 |
| Price: |
$ 3.69 |
|
|
|
|
